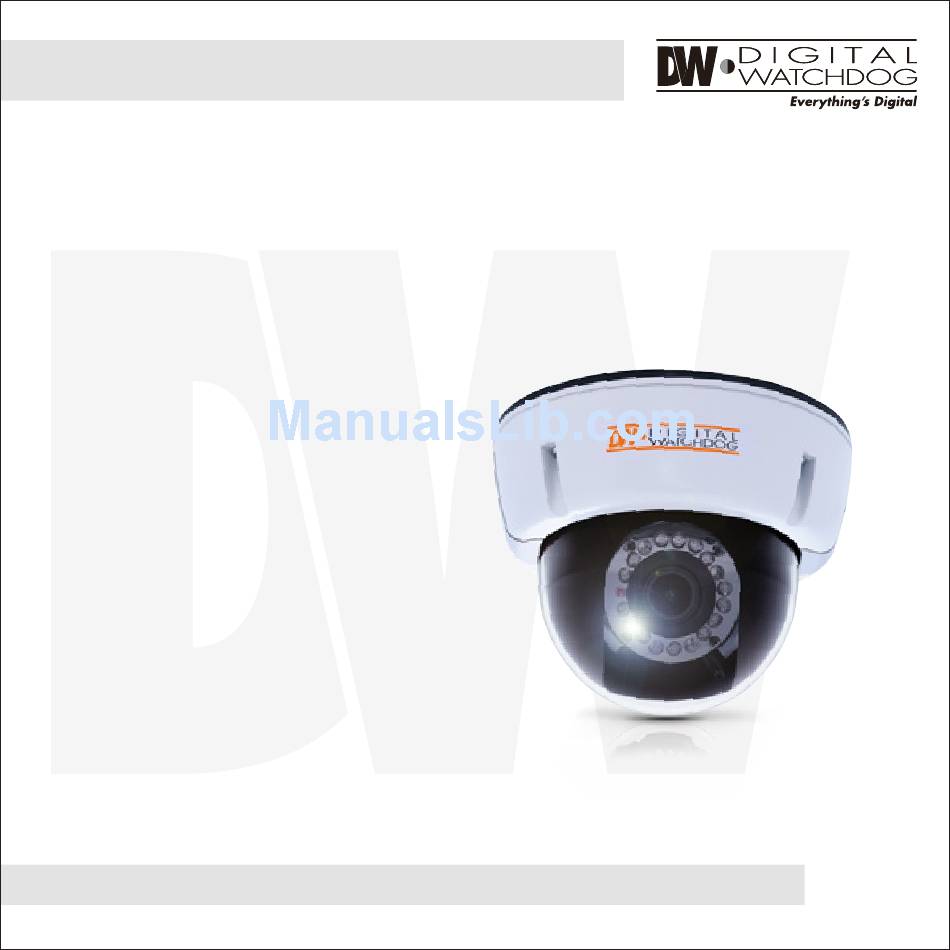

- Page 1 High Resolution Vandal-Proof Dome Camera DWC-V1362DIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 08092012...
- Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Mounting the Camera 8-12 Connecting to Monitors Adjusting the Camera Lens Adjusting the 3-Axis Gimbal Camera Control Board Troubleshooting Warranty Information 18-19 Specifications 20-21 Memo 22-23... -
Page 4: Features
FEATURES* 1/3” CCD 570 TV Lines [B&W], 540 TV Lines [Color] 3.3~12mm Varifocal Auto Iris Lens 100ft Range IR with Intelligent Camera Sync Electronic Day and Night 3D-DNR (3D Digital Noise Reduction) D-WDR (Digital Wide Dynamic Range) HME (Highlight Masking Exposure) SLC (Side Light Compensation) Programmable Privacy Zones &... -
Page 5: Parts And Descriptions
PART & DESCRIPTIONS* Lens Video Output Connector - BNC Power Input Connector 12VDC/ 24VAC Dual Voltage RS485: BK(D+), WH(D-) Rubber Band Black Dome Insert Bubble Dome Upper Case Assembly Screws T20 M4X16 NPT Plug Bottom Case Rubber Pad Mounting Screws... -
Page 6: Dimensions
DIMENSIONS IN MILLIMETERS (IN)* 91.0(3.58”) 85.0(3.35”) 5.0(0.2”) 103.1(4.06”) 109.6(4.31”) 41.3 (1.63”) 4.5(0.18”) 6.5(0.26”) 145(5.71”) -
Page 7: Inside The Box
INSIDE THE BOX* Included with V1 Vandal Dome Camera User Manual Double-Sided TORX-T20 Hex Key Mounting Template L-Key 4 Machine Screws and 4 Dry Wall Anchors Secondary Video-BNC Cable TORX-T20 Hex Key... - Page 8 MOUNTING INSTALLATION INSTRUCTIONS* Pull wires through and make connections. Adjust the camera (pan, tilt, zoom). See Refer to page 13. Use mounting template to page 14 for details. mount camera with drywall mounts and machine screws. Use the joystick to adjust the OSD menu. Attach the camera housing to the junction See pages 15-17 for details.
- Page 9 JUNCTION BOX INSTALLATION INSTRUCTIONS* Check to see all parts are in Use the dry wall anchors and Insert wires through the the box. machine screws to mount the wall and make the junction box and rubber appropriate connections. gasket to the wall. Attach the camera to the Attach the camera housing junction box using the...
- Page 10 WALL MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in Insert the wires from the Attach the camera to the box. camera through the wall the wall mount housing. mount housing. Use the mounting template to Attach the camera housing make pilot holes.
- Page 11 PENDANT MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in Attach the top shield to the Slide the wires from the the box. pendant mount. camera through the pendant mount. Attach the camera to the Attach the camera housing to Use the mounting template to pendant mount using the the fixture.
- Page 12 CORNER MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in the box. Attach the two compression fittings to the corner bracket. Attach the wall mount to the corner bracket Attach the seembly to a wall corner with dry with the 4 machine screws. wall anchors and machine screws.
-
Page 13: Connecting To Monitors
CONNECTING TO MONITORS* Use the diagram below to connect to a Monitor or CRT Monitor properly. DC12V / AC24V Video Output BNC Cable Main Monitor Spot Monitor Cable 300mm(11.8”) Field Test Monitor Power Connection: 12VDC & 24VDC Dual Voltage (Auto Polarity Detection and Protection) All cameras are equipped with a second video output for on-site configuration. -
Page 14: Adjusting The Camera Lens
ADJUSTING THE CAMERA LENS* Follow the instructions below to make any lens adjustments. Focus Handle Zoom Handle Loosen the zoom and focus handles by rotating them counter-clockwise. Adjust the field of view by moving the handle to the RIGHT (tele) to zoom in or to the LEFT(wide) to zoom out. - Page 15 ADJUSTING 3-AXIS GIMBAL* The Gimbal mechanism yields maximum rotation and placement as shown below. NO IR NO IR Rotation 360 Panning 360 NO IR Tilting 82 Tilting 90...
-
Page 16: Camera Control Board
CAMERA CONTROL BOARD* RIGHT DOWN LEFT SW: Functional Control of On Screen Display Menu CON1 CON1: Second Video Output Connector CON2: RS-485 Connector CON2 CAUTION: Check for polarity when using a 12VDC Power Supply. - Page 17 TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current. FOR OUT-OF-FOCUS VIDEO Check the clear dome cover and the lens for dirt or fingerprints.
-
Page 18: Warranty Information
WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge. - Page 19 This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...
-
Page 20: Specifications
SPECIFICATIONS* DWC-V1362DIR VIDEO Image Sensor 1/3" CCD Total Pixels 811 (H) x 508 (V), 411K Pixels Effective Pixels 768 (H) x 494 (V) Frequency 15.734KHz (H), 59.95Hz (V) Synchronization Internal or Line Lock Horizontal Resolution 570 TV Lines [B&W], 540 TV Lines [Color] Minimum Illumination F1.2 (30IRE): 0.14 Lux [Color]... - Page 21 OPERATIONAL White Balance AWC / ATW / MANUAL / PUSHLOCK Privacy Zones OFF / ON (8 Programmable Zones) Language ENGLISH / GERMAN / JAPANESE / MANDARIN / CANTONESE RUSSIAN / FRENCH / SPANISH / ITALIAN / DUTCH ENVIRONMENTAL Operating Temperature C ~ 55 C (14 F ~ 131...
- Page 22 MEMO*...
- Page 23 MEMO*...
- Page 24 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 8:30am to 8:00pm EST...
