Installation- Instructions
1

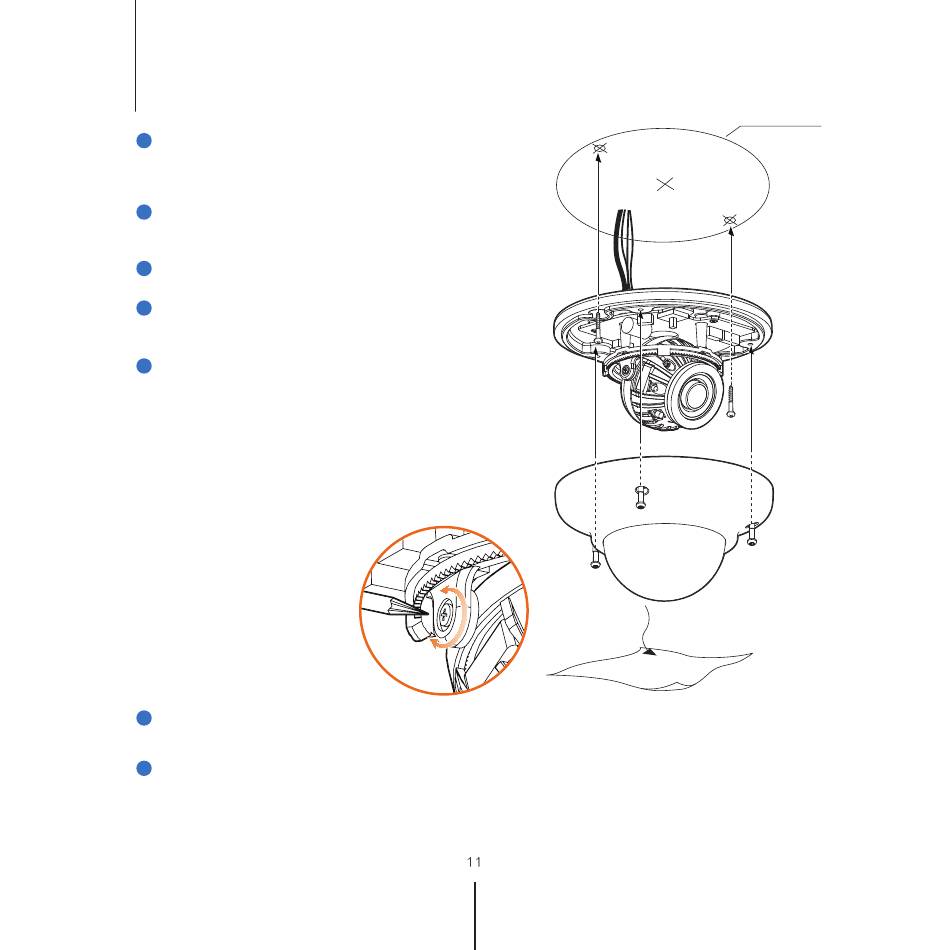

Detach the camera's cover dome from the
camera's module by unscrewing the three cover
dome screws using the Torx Wrench.
2
Use the camera or mounting template to mark
and drill the necessary holes in the wall or ceiling.
3
Pull wires through and make connections.
4
Using three included screws, mount and secure the
camera to the wall or ceiling.
To adjust the camera's pan and tilt position, the pan/
5
tilt stopper screw must be loosened. Locate the screw
at the base of the camera's lens. Loosen the screw
slightly to allow the camera module to move as
needed. Using force to rotate the camera's module
without loosening the screw may damage the camera.
To loosen the screw, use a Philips head screwdriver and
twist the screw counterclockwise. To tighten the screw
back after adjusting the camera module's pan and tilt,
twist the screw clockwise.
6 When assembling the dome back on the camera, align
the screw holes in the dome and the camera's base.
7
When the installation is complete, remove the dome's
protective film. Softly wipe the dome/lens cover with
lens tissue or a microfiber cloth with ethanol to remove
any dust or smudges left from the installation process.
Template Sheet
