Digital Watchdog SNAP-IT DWC-V4363D Manual

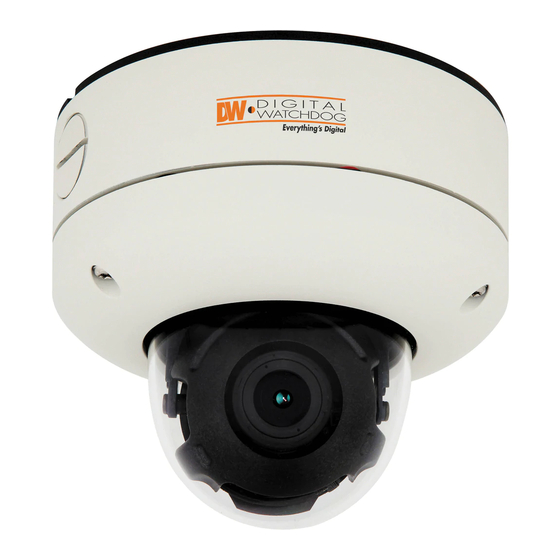

Snap-it outdoor dome camera
Hide thumbs Also See for SNAP-IT DWC-V4363D:
Table of Contents

Advertisement

Quick Links

Download this manual
SNAP-IT
Outdoor Dome Camera
DWC-V4363D
DWC-V4363TIR
DWC-V4367WD
DWC-V4367WTIR
DWC-V4382TIR
DWC-V4365T
DWC-V4363DH
DWC-V4382TIRH
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
03022011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNAP-IT DWC-V4363D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digital Watchdog SNAP-IT DWC-V4363D

Summary of Contents for Digital Watchdog SNAP-IT DWC-V4363D

  • Page 1 SNAP-IT Outdoor Dome Camera DWC-V4363D DWC-V4363TIR DWC-V4367WD DWC-V4367WTIR DWC-V4382TIR DWC-V4365T DWC-V4363DH DWC-V4382TIRH ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 03022011...
  • Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
  • Page 3 TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. No VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the menu setup of the camera. Check the power supply and make sure the camera has the proper voltage and current.
  • Page 4 PART & DESCRIPTIONS* Lens Power Input Connector DC 12V /AC 24V Voltage RS 485 Video Output Connector - BNC Camera Control Board Bubble Upper Case Flush Mount Case Surface Mount Case Assembly Screws #8 - 32 x 0.75 NO IR 2nd Video Connector Safety Wire Mounting Screws...
  • Page 5 INSTALLATION* Included with DW Outdoor Dome Camera 1. User Manual 6. 2nd Video Jack 2. Mounting Template 7. DC Plug 3. Four(4) Screw and Four(4) Dry Wall Anchors 8. Tool 4. L-Wrench 9. IR Remote Controller 5. TORX-T20 Bolt DWC-D4382TIR DWC-D4382TIRH...
  • Page 6 DIMENSIONS IN MILLIMETERS* Flush Mount 98,8 Surface Mount 118,8 53,8 Top View...

  • Page 7: Base Installations

    BASE INSTALLATIONS* Remove the dome cover by loosening the 3 screw located at the Lid(Upper). Vandal dome uses the torx screws. Use the supplied Torx Wrench. Surface Mount Using four ST4X35 screws provided, mount the surface mount plate to a sturdy surface.

  • Page 8: Mounting On Electrical Junction Box

    MOUNTING ON ELECTRICAL JUNCTION BOX* Designed for both flush mount or surface mount applications, pre-drilled mounting holes on EasyView dome accommodate various electrical junction boxes, making installation easy and less time consuming. When mounting the flush mount base, surface mount plate, or both together, use the pre-drilled holes marked with the symbol for proper installation.

  • Page 9: Connecting To Monitors

    CONNECTING TO MONITORS* Follow the diagram below to make proper connections to CRT Monitor or the Monitor. DC 12V / AC 24V CCTV Monitor NO IR Left Right Down 2nd Video Output Monitor 300.0 Power Connection - 12V DC / 24V AC Dual Voltage(Auto Polarity Detection and Protection) All cameras are equipped with a 2nd video output on the camera Main Board.
  • Page 10 ADJUSTING THE VARI-FOCAL DC AUTO IRIS LENS* Follow the instructions provided below to make any lens adjustments. Focus Zoom DWC-V4363TIR DWC-V4363D DWC-V4367WTIR DWC-V4367WD DWC-V4382TIR DWC-V4365T DWC-V4382TIRH DWC-V4363DH Zoom: Tele Wide NO IR Focus: Near Loosen the Zoom & Focus screws.
  • Page 11 ADJUSTING 3-AXIS GIMBAL* The Gimbal mechanism yields maximum rotation and placement ad show below. NO IR NO IR Rotation 360 Panning 360 NO IR Tilting 82 Tilting 90...
  • Page 12 FEATURES* V4363D 1/3” Sony Super HAD ⅡCCD 560 TV Lines 3.3~12mm Varifocal Auto Iris Lens Electronic Day and Night Star-Light (Super Low Light Technology) 3D-DNR (3D Digital Noise Reduction) DRC (Dynamic Range Compressor) HME (Highlight Masking Exposure) AGC / BLC / AWB 32X Digital Zoom / Negative Imaging UTP / RS485 Built-In Programmable Privacy Zone(8) &...

  • Page 13: Module Osd Menu

    MODULE OSD MENU* EXPOSURE PRIVACY COLOR DAY&NIGHT D&N MODE BRIGHTNESS WB MODE C_SUP R-Y GAIN SHUTTER B-Y GAIN A_SUP BLC / HME STARLIGHT NIGHT-UP FUNCTION MOTION PRIVACY MIRROR MOTION PRIVACY SHARPNESS GAMMA FREEZE NEGATIVE D-ZOOM 3D DNR SYNC SETUP EXIT TITLE EDIT EXIT SYNC...
  • Page 14 EXPOSURE BRIGHTNESS 0 ~ 100 SHUTTER 1/60 / FLK / 1/250 ~ 10000 / SENS-UP x2 ~ x256 BLC/HME OFF / BLC / HME HIGH / MIDDLE / LOW / OFF AGC(Auto Gain Control) STARLIGHT AUTO(x2 ~ x256) / OFF NIGHT-UP NORMAL / HIGH EXIT JUMP...
  • Page 15 FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS 0 ~ 31 GAMMA 0.05 ~ 1.00 FREEZE OFF / ON NEGATIVE OFF / ON D-ZOOM OFF / ON (x1.0 ~ x32 PTZ) 3D DNR ON (0~100) / OFF 3D Digital Noise Reduction OFF / INDOOR / OUTDOOR Dynamic Range Compressor EXIT JUMP...
  • Page 16 SYNC SYNC INTERNAL / LINE EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SETUP TITLE EDIT OFF / ON PC CONTROL CAM ID / ID DISPLAY (OFF/ON) / BAUDRATE (2400 / 4800 / 9600) (RS485 Control) The protocol is fixed pelco-D. LANGUAGE ENG / KOR / JPN / CHN1 / CHN2 / RUS / FRAN / SPAN / ITAL MONITOR...

  • Page 17: Specifications

    SPECIFICATIONS* MODEL DWC-V4363D General Spec NTSC CCD Type 1/3" 410K Pixels Color 1/3" 470K Pixels Color Total num ber of pixels 811(H) X 508(V) 795(H) X 596(V) Minimum Illum ination 0.14Lux (F1.2, 30IRE-COLOR) 0Lux (LED ON) Resolution 560 TV Lines (COLOR)
  • Page 18 FEATURES* V4363TIR 1/3” Sony Super HAD ⅡCCD 560 TV Lines 3.3~12mm Varifocal Auto Iris Lens 100ft Range IR with Intelligent Camera Sync TDN (True Day and Night / TDN5) Star-Light (Super Low Light Technology) DRC (Dynamic Range Compressor) 3D-DNR (3D Digital Noise Reduction) HME (Highlight Masking Exposure) AGC / BLC / AWB 32X Digital Zoom / Negative Imaging...
  • Page 19 MODULE OSD MENU* EXPOSURE PRIVACY COLOR DAY&NIGHT D&N MODE BRIGHTNESS WB MODE C_SUP R-Y GAIN SHUTTER B-Y GAIN A_SUP BLC / HME STARLIGHT NIGHT-UP FUNCTION MOTION PRIVACY MIRROR MOTION PRIVACY SHARPNESS GAMMA FREEZE NEGATIVE D-ZOOM 3D DNR SYNC SETUP EXIT TITLE EDIT EXIT SYNC...
  • Page 20 EXPOSURE BRIGHTNESS 0 ~ 100 SHUTTER 1/60 / FLK / 1/250 ~ 10000 / SENS-UP x2 ~ x256 BLC/HME OFF / BLC / HME HIGH / MIDDLE / LOW / OFF AGC(Auto Gain Control) STARLIGHT AUTO(x2 ~ x256) / OFF NIGHT-UP NORMAL / HIGH EXIT JUMP...
  • Page 21 FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS 0 ~ 31 GAMMA 0.05 ~ 1.00 FREEZE OFF / ON NEGATIVE OFF / ON D-ZOOM OFF / ON (x1.0 ~ x32 PTZ) 3D DNR ON (0~100) / OFF 3D Digital Noise Reduction OFF / INDOOR / OUTDOOR Dynamic Range Compressor EXIT / SAVE&EXIT / FACTORY SET...
  • Page 22 SYNC SYNC INTERNAL / LINE EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SETUP TITLE EDIT OFF / ON PC CONTROL CAM ID / ID DISPLAY (OFF/ON) / BAUDRATE (2400 / 4800 / 9600) (RS485 Control) The protocol is fixed pelco-D. LANGUAGE ENG / KOR / JPN / CHN1 / CHN2 / RUS / FRAN / SPAN / ITAL MONITOR...
  • Page 23 SPECIFICATIONS* MODEL DWC-V4363TIR General Spec NTSC CCD Type 1/3" 410K Pixels Color 1/3" 470K Pixels Color Total num ber of pixels 811(H) X 508(V) 795(H) X 596(V) Minimum Illum ination 0.14Lux (F1.2, 30IRE-COLOR) 0Lux (LED ON) Resolution 560 TV Lines (COLOR) 580 TV Lines (BW) Electric Spec Voltage...
  • Page 24 FEATURES* V4367WD 1/3” Sony Super HAD ⅡCCD 580 TV Lines 3.3~12mm Varifocal Auto Iris Lens Electronic Day and Night Star-Light (Super Low Light Technology) EWDR (Electronic Wide Dynamic Range) 3D-DNR (3D Digital Noise Reduction) HME (Highlight Masking Exposure) SLC (Side Light Compensation) AGC / BLC / AWB Negative Imaging 3X Digital Zoom...

  • Page 25: Table Of Contents

    MODULE OSD MENU* EXPOSURE PRIVACY COLOR DAY&NIGHT D&N MODE BRIGHTNESS WB MODE C_SUP SHUTTER R-Y GAIN A_SUP B-Y GAIN MAX_DR STARLIGHT FUNCTION MOTION PRIVACY MIRROR MOTION MASK 1 SHARPNESS MASK 2 GAMMA MASK 3 FREEZE MASK 4 NEGATIVE MASK 5 3D DNR MASK 6 D-ZOOM...

  • Page 26: Max_Dr

    EXPOSURE BRIGHTNESS 0 ~ 99 SHUTTER 1/60 / 1/100 / FLC / 1/250 ~ 100000 / SENS-UP x2 ~ x256 OFF / ON BLC (Back Light Compensation) HIGH / MIDDLE / LOW / OFF AGC (AUTO GAIN CONTROL) OFF / ON (0~20) (Electronic Wide Dynamic Range) MAX_DR STARLIGHT AUTO (x2 ~ x256) / OFF (x32 is recommended for low light application.)

  • Page 27: Function

    FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS 0 ~ 49 GAMMA 0.45 ~ 1.00 / USER FREEZE OFF / ON NEGATIVE OFF / ON 3D DNR OFF / LOW / MIDDLE / HIGH 3D DNR (3D Digital Noise Reduction) D-ZOOM OFF / ON(x1.0 ~ x3.0 Digital PTZ) OFF / ON...

  • Page 28: Camera Id

    PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON MASK 4 OFF / ON MASK 5 OFF / ON MASK 6 OFF / ON EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SYNC SYNC MODE INTERNAL / AUTO 0 ~ 199...
  • Page 29 SPECIFICATIONS* MODEL DWC-D4367WD General Spec NTSC CCD Type 1/3" 410K Pixels Color 1/3" 470K Pixels Color Total num ber of pixels 811(H) X 508 (V) 795(H) X 596(V) Minimum Illum ination 0.14Lux (F1.2, 30IRE-COLOR) 0Lux (LED ON) Resolution 580 TV Lines (COLOR) 600 TV Lines (BW) Electric Spec Voltage...
  • Page 30 FEATURES* D4367WTIR 1/3” Sony Super HAD ⅡCCD 580 TV Lines 3.3~12mm Varifocal Auto Iris Lens 100ft Range IR with Intelligent Camera Sync TDN (True Day and Night / TDN5) Star-Light (Super Low Light Technology) EWDR (Electronic Wide Dynamic Range) 3D-DNR (3D Digital Noise Reduction) HME (Highlight Masking Exposure) SLC (Side Light Compensation) AGC / BLC / AWB...
  • Page 31 MODULE OSD MENU* EXPOSURE PRIVACY COLOR DAY&NIGHT D&N MODE BRIGHTNESS WB MODE C_SUP SHUTTER R-Y GAIN A_SUP B-Y GAIN MAX_DR STARLIGHT FUNCTION MOTION PRIVACY MIRROR MOTION MASK 1 SHARPNESS MASK 2 GAMMA MASK 3 FREEZE MASK 4 NEGATIVE MASK 5 3D DNR MASK 6 D-ZOOM...

  • Page 32: Day&Night

    EXPOSURE BRIGHTNESS 0 ~ 99 SHUTTER 1/60 / 1/100 / FLC / 1/250 ~ 100000 / SENS-UP x2 ~ x256 OFF / ON BLC (Back Light Compensation) HIGH / MIDDLE / LOW / OFF AGC (AUTO GAIN CONTROL) OFF / ON (0~20) (Electronic Wide Dynamic Range) MAX_DR STARLIGHT AUTO (x2 ~ x256) / OFF (x32 is recommended for low light application.)

  • Page 33: Function

    FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS 0 ~ 49 GAMMA 0.45 ~ 1.00 / USER FREEZE OFF / ON NEGATIVE OFF / ON 3D DNR OFF / LOW / MIDDLE / HIGH 3D DNR (3D Digital Noise Reduction) D-ZOOM OFF / ON(x1.0 ~ x3.0 Digital PTZ) OFF / ON...

  • Page 34: Camera Id

    PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON MASK 4 OFF / ON MASK 5 OFF / ON MASK 6 OFF / ON EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SYNC SYNC MODE INTERNAL / AUTO 0 ~ 199...
  • Page 35 SPECIFICATIONS* MODEL DWC-V4367WTIR General Spec NTSC CCD Type 1/3" 410K Pixels Color 1/3" 470K Pixels Color Total num ber of pixels 811(H) X 508 (V) 795(H) X 596(V) Minimum Illum ination 0.14Lux (F1.2, 30IRE-COLOR) 0Lux (LED ON) Resolution 580 TV Lines (COLOR) 600 TV Lines (BW) Electric Spec Voltage...
  • Page 36 FEATURES* V4382TIR 1/3” Sony Super HAD ⅡCCD 580 TV Lines OMNI-Focus 2.9~8.5mm 3X Motorized Zoom,Auto Iris 70ft Range IR with Intelligent Camera Sync TDN (True Day and Night / TDN5) Star-Light (Super Low Light Technology) EWDR (Electronic Wide Dynamic Range) 3D-DNR (3D Digital Noise Reduction) HME (Highlight Masking Exposure) AGC / BLC / AWB...
  • Page 37 MODULE OSD MENU* EXPOSURE PRIVACY COLOR DAY&NIGHT D&N MODE BRIGHTNESS WB MODE C_SUP SHUTTER R-Y GAIN A_SUP B-Y GAIN MAX_DR STARLIGHT FUNCTION MOTION PRIVACY MIRROR MOTION MASK 1 SHARPNESS MASK 2 GAMMA MASK 3 FREEZE MASK 4 NEGATIVE MASK 5 3D DNR MASK 6 D-ZOOM...

  • Page 38: Day&Night

    EXPOSURE BRIGHTNESS 0 ~ 99 SHUTTER 1/60 / 1/100 / FLC / 1/250 ~ 100000 / SENS-UP x2 ~ x256 OFF / ON BLC (Back Light Compensation) HIGH / MIDDLE / LOW / OFF AGC (AUTO GAIN CONTROL) MAX_DR OFF / ON (0~20) (Electronic Wide Dynamic Range) STARLIGHT AUTO (x2 ~ x256) / OFF (x32 is recommended for low light application.) EXIT JUMP...

  • Page 39: Function

    FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS 0 ~ 49 GAMMA 0.45 ~ 1.00 / USER FREEZE OFF / ON NEGATIVE OFF / ON 3D DNR OFF / LOW / MIDDLE / HIGH 3D DNR (3D Digital Noise Reduction) D-ZOOM OFF / ON(x1.0 ~ x3.0 Digital PTZ) OFF / ON...

  • Page 40: Sync

    PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON MASK 4 OFF / ON MASK 5 OFF / ON MASK 6 OFF / ON EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SYNC SYNC MODE INTERNAL / AUTO 0 ~ 199...
  • Page 41 SPECIFICATIONS* MODEL DWC-V4382TIR General Spec NTSC CCD Type 1/3" 410K Pixels Color 1/3" 470K Pixels Color Total num ber of pixels 811(H) X 508 (V) 795(H) X 596(V) Minimum Illum ination 0.14Lux (F1.2, 30IRE-COLOR) 0Lux (LED ON) Resolution 580 TV Lines (COLOR) 600 TV Lines (BW) Electric Spec Voltage...

  • Page 42: Remote Control

    REMOTE CONTROL* REMOTE CONTROL Instructions Key Button 1) Set the camera ID in OSD menu.(The default setting is “001”) Menu Access and Control NOTE : If the camera ID is modified, the new camera ID must be set, and the power must be turned ON and OFF. Then the camera is able to recognize the new ID.
  • Page 43 FEATURES* V4365T 1/3” Pixim Seawolf CMOS Sensor 690 Horizontal TV Lines 3.3~12mm Varifocal Auto Iris Lens TDN (True Day and Night / TDN5) Powerful Wide Dynamic Range 3D-DNR (3D Digital Noise Reduction) Ultra Low Light Sensitivity Smear Canceling Circuit Low Power Consumption UTP / RS485 Built-In Junction Box Built-In Programmable Privacy Zone(6) &...
  • Page 44 MODULE OSD MENU* EXPOSURE PRIVACY COLOR DAY&NIGHT D&N MODE BRIGHTNESS WB MODE AE PREFERENCE COLOR GAIN STARLIGHT METER ZONE FUNCTION MOTION PRIVACY MIRROR MOTION PRIVACY SHARPNESS GAMMA 3D DNR D-ZOOM SYNC SETUP EXIT EXIT SYNC PC CONTROL SAVE & EXIT TITLE FACTORY RESET LANGUAGE...
  • Page 45 EXPOSURE BRIGHTNESS -48 ~ 60 AE PREFERENCE OUTDOOR / INDOOR OFF / BLC (PERCENTILE 10 ~ 50) LOW / NORMAL / MEDIUM / HIGH / CUSTOM LOW / MEDIUM / HIGH / CUSTOM STARLIGHT x2 ~ x64 / OFF METER ZONE ADJUST ZONE 1 / ADJUST ZONE 2 EXIT / SAVE&EXIT / FACTORY SET EXIT JUMP...
  • Page 46 FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS -8 ~ 8 25(0.25) ~ 100(1.0) GAMMA 3D DNR MOVIE / INFO D-ZOOM ZOOM : 1(x1.0) ~ 12(x8) PAN(-100~100) / TILT(-100~100)(Digital Zoom/Pan using the camera mini joystick) EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET MOTION OFF / ON (ACTIVITY THR (0 ~ 255)) MOTION...

  • Page 47: Sync

    SYNC SYNC INT1(SYNC to 59.94Hz)/INT2(SYNC to 60.01Hz)/LL(LL LIMIT/V PHASE/RETURN) EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SETUP PC CONTROL CAM ID : 1 ~ 255 ID DISPLAY : OFF / ON PROTOCOL : PELCO-D BAUDRATE : 2400 / 4800 / 9600 / 19200 RETURN TITLE OFF / ON...
  • Page 48 SPECIFICATIONS* Model DWC-V4365T General Spec NTSC CCD Type 1/3" 420K Pixels Color Total num ber of pixels 768(H) X 548(V) Minimum Illum ination 0.22Lux (F1.2, 30IRE-COLOR) 0Lux (LED ON) Resolution H: 690 TV Lines Effective Electric Spec Voltage DC 12[V] (11.0[V] ~ 20.0[V]) AC 24[V] (20.0[V] ~ 30.0[V]) Pow er Consum ption DC12V-3.1W(FAN ON:4.9W)
  • Page 49 FEATURES* V4363DH 1/3” Sony Super HAD ⅡCCD 560 TV Lines 3.3~12mm Varifocal Auto Iris Lens Electronic Day and Night Star-Light (Super Low Light Technology) DRC (Dynamic Range Compressor) 3D-DNR (3D Digital Noise Reduction) HME (Highlight Masking Exposure) AGC / BLC / AWB 32X Digital Zoom / Negative Imaging UTP / RS485 Built-In Junction Box Built-In...
  • Page 50 MODULE OSD MENU* EXPOSURE PRIVACY COLOR DAY&NIGHT D&N MODE BRIGHTNESS WB MODE C_SUP R-Y GAIN SHUTTER B-Y GAIN A_SUP BLC / HME STARLIGHT NIGHT-UP FUNCTION MOTION PRIVACY MIRROR MOTION PRIVACY SHARPNESS GAMMA FREEZE NEGATIVE D-ZOOM 3D DNR SYNC SETUP EXIT TITLE EDIT EXIT SYNC...
  • Page 51 EXPOSURE BRIGHTNESS 0 ~ 100 SHUTTER 1/60 / FLK / 1/250 ~ 10000 / SENS-UP x2 ~ x256 BLC/HME OFF / BLC / HME HIGH / MIDDLE / LOW / OFF AGC(Auto Gain Control) STARLIGHT AUTO(x2 ~ x256) / OFF NIGHT-UP NORMAL / HIGH EXIT JUMP...
  • Page 52 FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS 0 ~ 31 GAMMA 0.05 ~ 1.00 FREEZE OFF / ON NEGATIVE OFF / ON D-ZOOM OFF / ON (x1.0 ~ x32 PTZ) 3D DNR ON (0~100) / OFF 3D Digital Noise Reduction OFF / INDOOR / OUTDOOR Dynamic Range Compressor EXIT JUMP...
  • Page 53 SYNC SYNC INTERNAL / LINE EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SETUP TITLE EDIT OFF / ON PC CONTROL CAM ID / ID DISPLAY (OFF/ON) / BAUDRATE (2400 / 4800 / 9600) (RS485 Control) The protocol is fixed pelco-D. LANGUAGE ENG / KOR / JPN / CHN1 / CHN2 / RUS / FRAN / SPAN / ITAL MONITOR...
  • Page 54 SPECIFICATIONS* MODEL DWC-V4363DH General Spec NTSC CCD Type 1/3" 410K Pixels Color 1/3" 470K Pixels Color Total num ber of pixels 811(H) X 508(V) 795(H) X 596(V) Minimum Illum ination 0.14Lux (F1.2, 30IRE-COLOR) 0Lux (LED ON) Resolution 560 TV Lines (COLOR) 580 TV Lines (BW) Electric Spec Voltage...
  • Page 55 FEATURES* V4382TIRH 1/3” Sony Super HAD � CCD 580 TV Lines OMNI-Focus 2.9~8.5mm 3X Motorized Zoom,Auto Iris 70ft Range IR with Intelligent Camera Sync TDN (True Day and Night / TDN5) Star-Light (Super Low Light Technology) EWDR (Electronic Wide Dynamic Range) 3D-DNR (3D Digital Noise Reduction) HME (Highlight Masking Exposure) SLC (Side Light Compensation)
  • Page 56 MODULE OSD MENU* EXPOSURE PRIVACY COLOR DAY&NIGHT D&N MODE BRIGHTNESS WB MODE C_SUP SHUTTER R-Y GAIN A_SUP B-Y GAIN MAX_DR STARLIGHT FUNCTION MOTION PRIVACY MIRROR MOTION MASK 1 SHARPNESS MASK 2 GAMMA MASK 3 FREEZE MASK 4 NEGATIVE MASK 5 3D DNR MASK 6 D-ZOOM...
  • Page 57 EXPOSURE BRIGHTNESS 0 ~ 99 SHUTTER 1/60 / 1/100 / FLC / 1/250 ~ 100000 / SENS-UP x2 ~ x256 OFF / ON BLC (Back Light Compensation) HIGH / MIDDLE / LOW / OFF AGC (AUTO GAIN CONTROL) MAX_DR OFF / ON (0~20) (Electronic Wide Dynamic Range) STARLIGHT AUTO (x2 ~ x256) / OFF (x32 is recommended for low light application.) EXIT JUMP...
  • Page 58 FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS 0 ~ 49 GAMMA 0.45 ~ 1.00 / USER FREEZE OFF / ON NEGATIVE OFF / ON 3D DNR OFF / LOW / MIDDLE / HIGH 3D DNR (3D Digital Noise Reduction) D-ZOOM OFF / ON(x1.0 ~ x3.0 Digital PTZ) OFF / ON...
  • Page 59 PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON MASK 4 OFF / ON MASK 5 OFF / ON MASK 6 OFF / ON EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SYNC SYNC MODE INTERNAL / AUTO 0 ~ 199...
  • Page 60 SPECIFICATIONS* MODEL DWC-V4382TIRH General Spec NTSC CCD Type 1/3" 410K Pixels Color 1/3" 470K Pixels Color Total num ber of pixels 811(H) X 508(V) 795(H) X 596(V) Minimum Illum ination 0.14Lux (F1.2, 30IRE-COLOR) 0Lux (LED ON) Resolution 580 TV Lines (COLOR) 600 TV Lines (BW) Electric Spec Voltage...
  • Page 61 REMOTE CONTROL* REMOTE CONTROL Instructions Key Button 1) Set the camera ID in OSD menu.(The default setting is “001”) Menu Access and Control NOTE : If the camera ID is modified, the new camera ID must be set, and the power must be turned ON and OFF. Then the camera is able to recognize the new ID.

  • Page 62: Warranty Information

    WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR : For the initial two (2) years and one (1) year on IR LED from the original purchase date,...
  • Page 63 LIMITS AND EXCLUSIONS* There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including, without limitation or damage to recording media) resulting from the use of these products, or arising out of any breach of the warranty.
  • Page 64 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 8:30am to 8:00pm Eastern Time...
