Connecting to

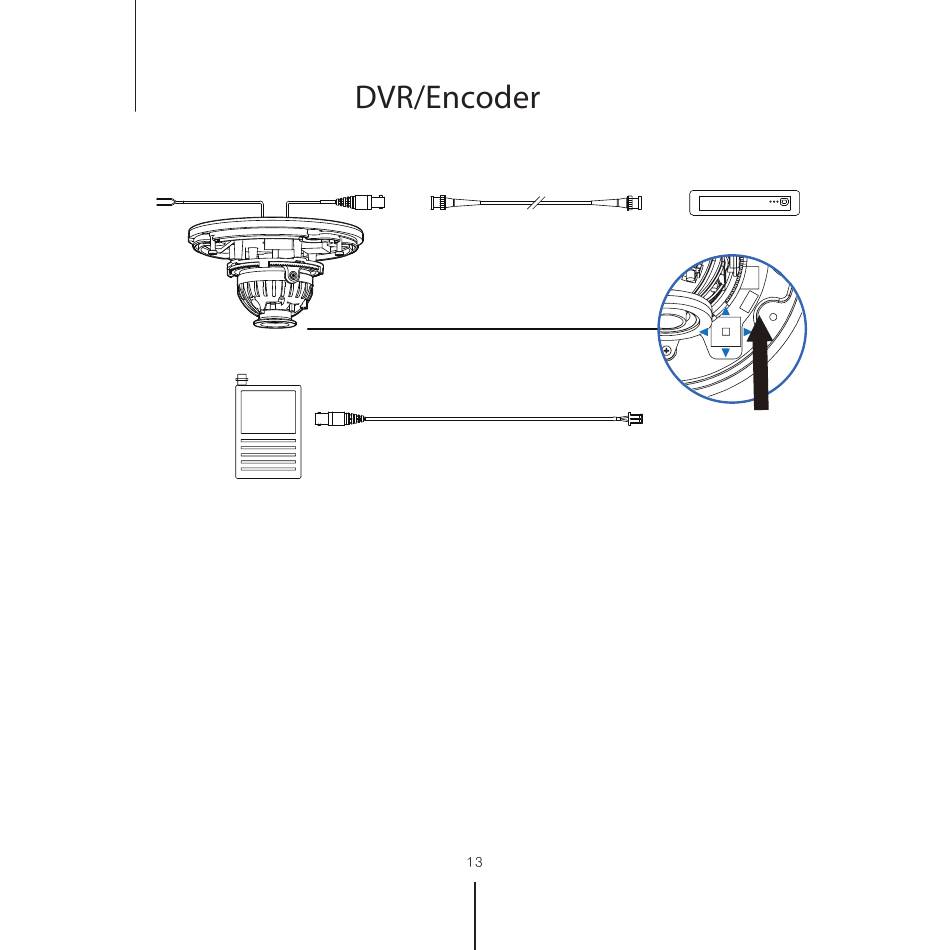

Use the diagram below to connect to a Monitor or DVR properly.
12VDC
Monitor
- Power Connection - 12vdc Voltage
- All cameras are equipped with a test video output for on-site configuration.
COAX
Test Video Output
UNIVERSAL DVR
