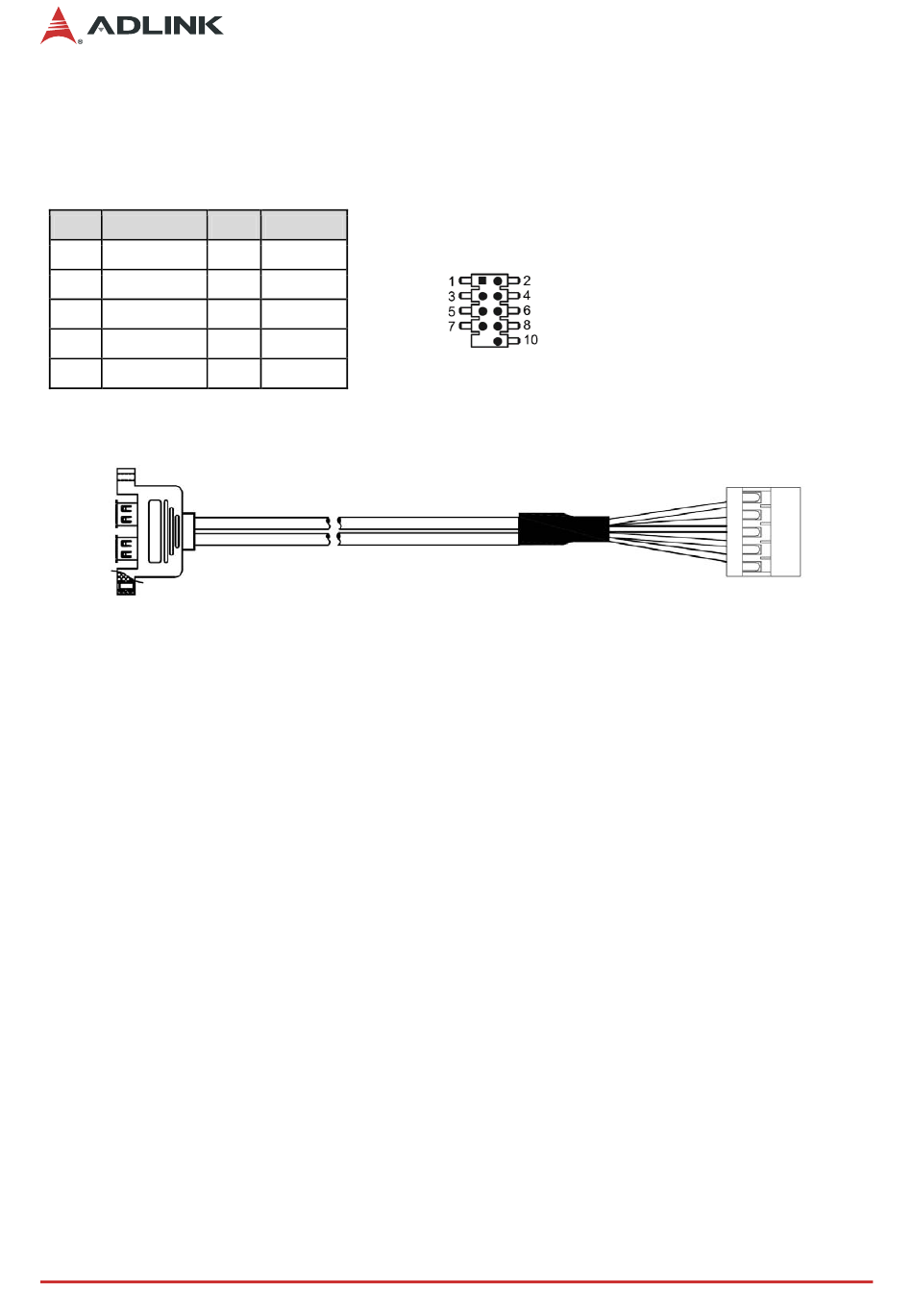

4.2.4
USB 2.0 Header (USB78)
2x USB 2.0.
2x5-pin 2.54mm pitch header.
Pin
Signal
1
+5VDC
3
D-
5
D+
7
GND
9
KEY (no pin)
USB Cable (optional):
USB 2.0 Header to 2x Female Type-A Cable (length 150mm), P/N: 30-21625-0000-B0
20
Pin
Signal
2
+5VDC
4
D-
6
D+
8
GND
10
GND
Connectors and Jumpers
