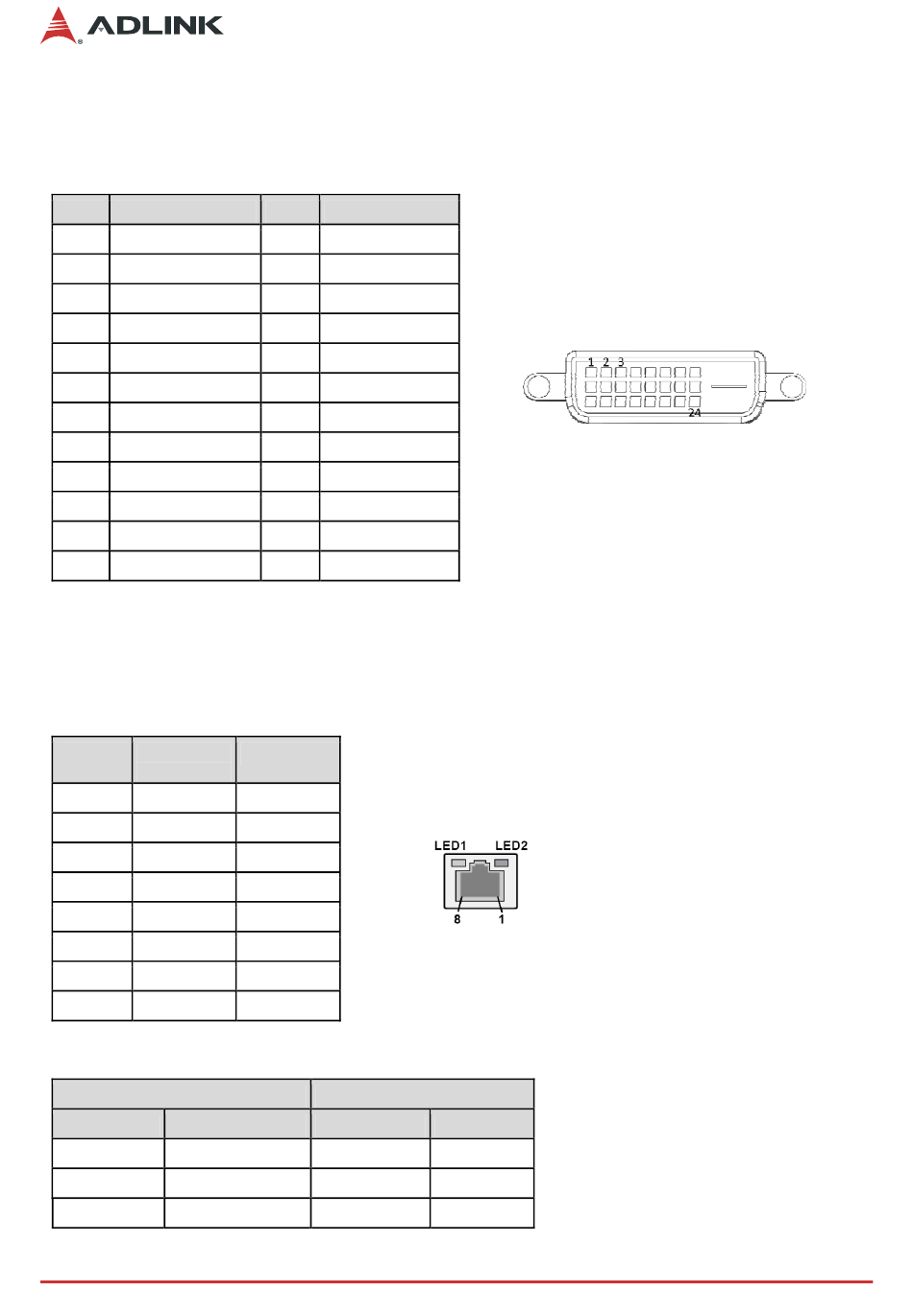

4.1.3 DVI
One DVI-D port up to 1920 x 1200 @ 60 Hz
Pin Signal
1 DVI1_CON_DN2
2 DVI1_CON_DP2
3 GND
4 N/C
5 N/C
6 DVI1_DDC_CLK
7 DVI1_DDC_DATA
8 N/C
9 DVI1_CON_DN1
10 DVI1_CON_DP1
11 GND
12 N/C
4.1.4 Ethernet Connectors (LAN1, LAN2)
Dual 10/100/1000Mbit/s LAN Ethernet controllers based on Realtek RTL8111G, supporting PXE and WOL over
both LANs
10BASE-T/
Pin
100BASE-TX
1 TX+
2 TX-
3 RX+
4 --
5 --
6 RX-
7 --
8 --
LED Behavior
LED1 (Link/Activity)
Status Description
Off 10 Mb connection
Orange 100 Mb connection
Green 1 Gb connection
16
Pin Signal
13 N/C
14 +5V
15 GND
16 DVI1_B_HPD
17 DVI1_CON_DN0
18 DVI1_CON_DP0
19 GND
20 N/C
21 N/C
22 GND
23 DVI1_CON_CKP
24 DVI1_CON_CKN
1000BASE-T
LAN_MDI0+
LAN_MDI0-
LAN_MDI1+
LAN_MDI2+
LAN_MDI2-
LAN_MDI1-
LAN_MDI3+
LAN_MDI3-
LED2 (Speed)
Status
Off
Green
Blanking
Description
No Link
Linked
Data Activity
