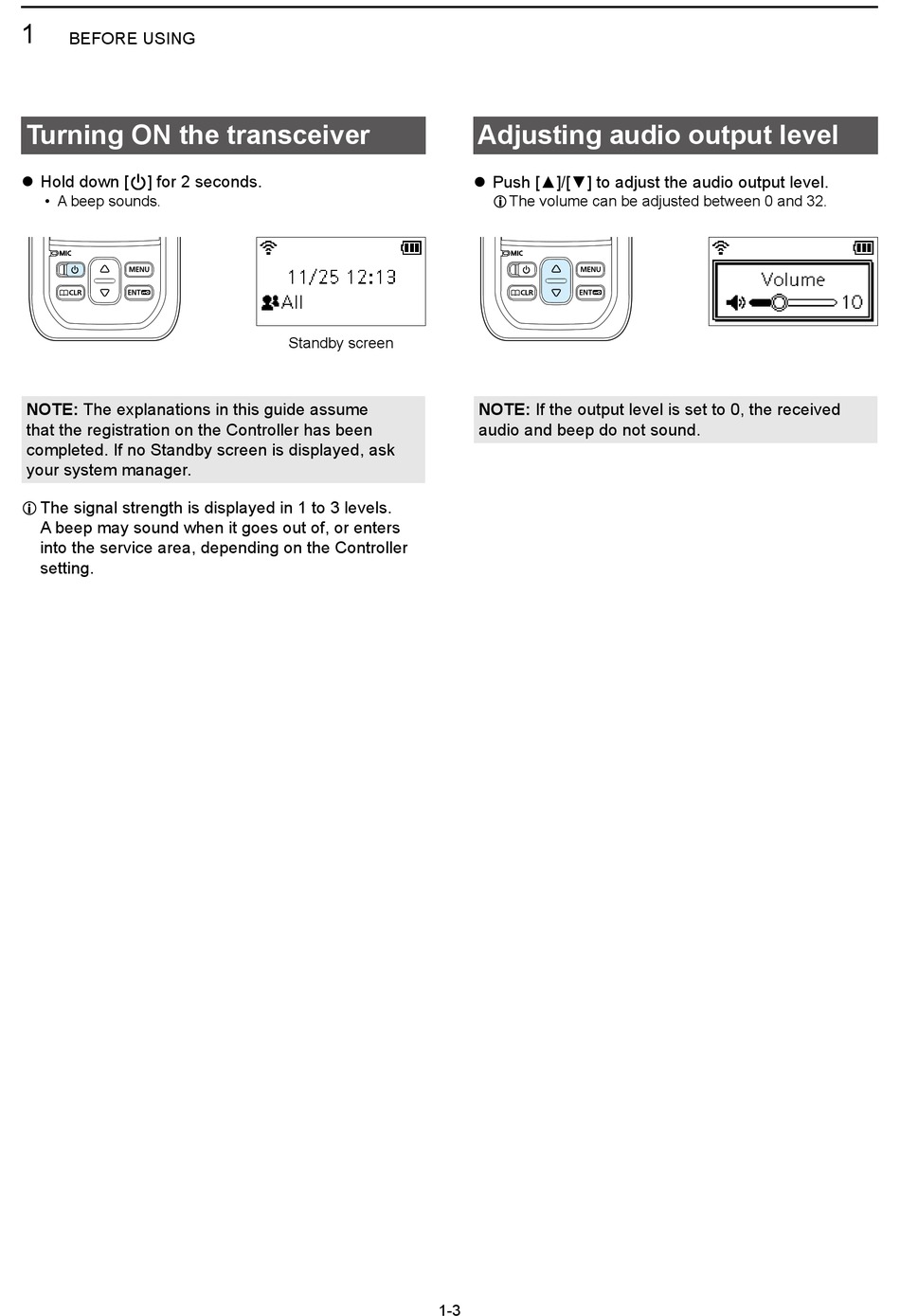

BEFORE USING

Turning ON the transceiver

z Hold down [ ] for 2 seconds�
• A beep sounds�
NOTE: The explanations in this guide assume
that the registration on the Controller has been
completed� If no Standby screen is displayed, ask
your system manager�
L The signal strength is displayed in 1 to 3 levels�
A beep may sound when it goes out of, or enters
into the service area, depending on the Controller
setting�
Standby screen
1-3

Adjusting audio output level

z Push [▲]/[▼] to adjust the audio output level.
L The volume can be adjusted between 0 and 32�
NOTE: If the output level is set to 0, the received
audio and beep do not sound�
