5
OPTIONS

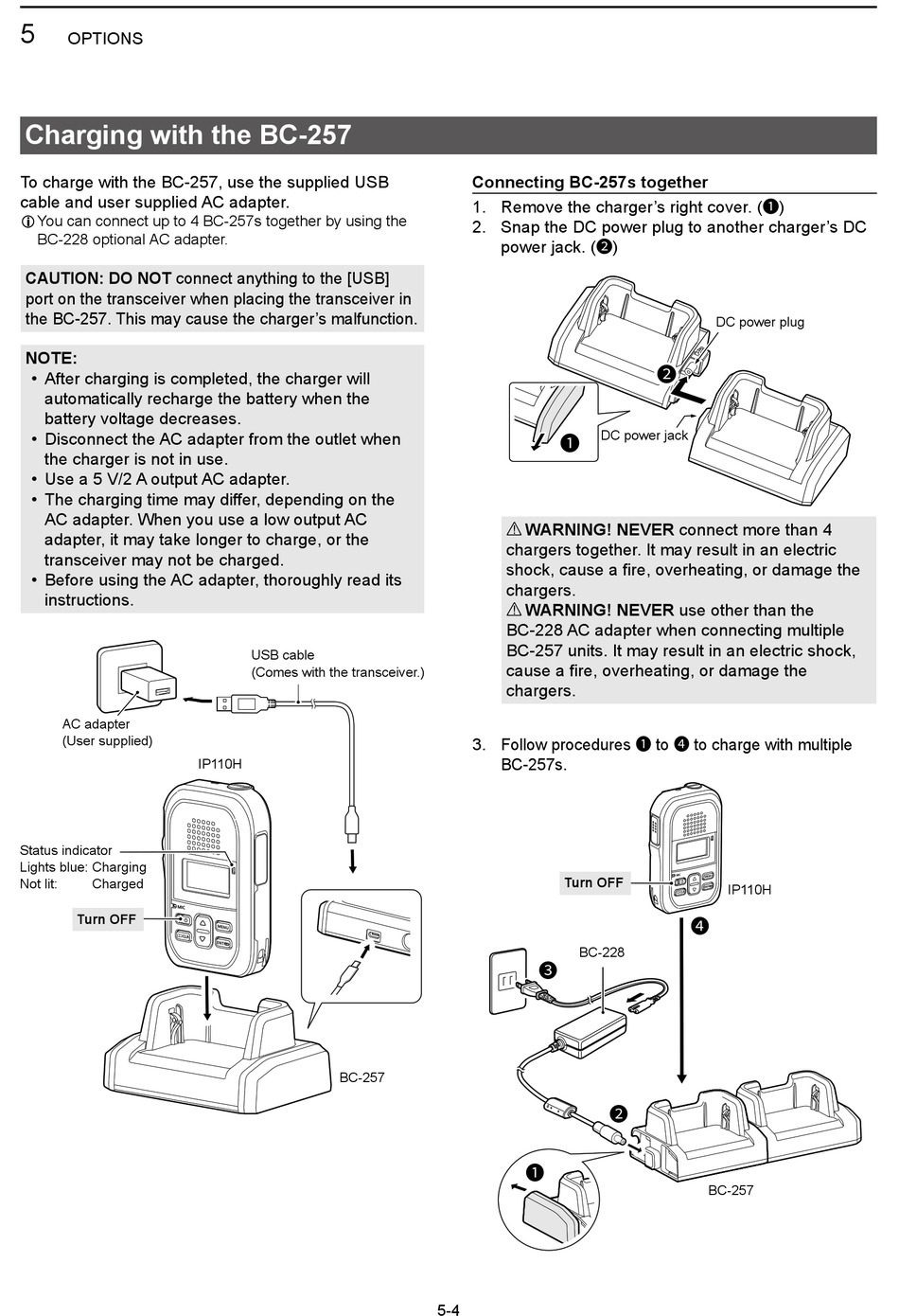

Charging with the BC-257

To charge with the BC-257, use the supplied USB
cable and user supplied AC adapter�
L You can connect up to 4 BC-257s together by using the
BC-228 optional AC adapter�
CAUTION: DO NOT connect anything to the [USB]
port on the transceiver when placing the transceiver in
the BC-257. This may cause the charger's malfunction.
NOTE:
• After charging is completed, the charger will
automatically recharge the battery when the
battery voltage decreases�
• Disconnect the AC adapter from the outlet when
the charger is not in use�
• Use a 5 V/2 A output AC adapter�
• The charging time may differ, depending on the
AC adapter� When you use a low output AC
adapter, it may take longer to charge, or the
transceiver may not be charged�
• Before using the AC adapter, thoroughly read its
instructions�
AC adapter
(User supplied)
Status indicator
Lights blue: Charging
Not lit: Charged
Turn OFF
USB cable
(Comes with the transceiver�)
IP110H
BC-257
Connecting BC-257s together
1� Remove the charger's right cover. (1)
2� Snap the DC power plug to another charger's DC
power jack� (2)
DC power jack
1
R WARNING! NEVER connect more than 4
chargers together� It may result in an electric
shock, cause a fire, overheating, or damage the
chargers�
R WARNING! NEVER use other than the
BC-228 AC adapter when connecting multiple
BC-257 units� It may result in an electric shock,
cause a fire, overheating, or damage the
chargers�
3� Follow procedures 1 to 4 to charge with multiple
BC-257s�
Turn OFF
BC-228
3
1
5-4
DC power plug
2
IP110H
4
2
BC-257
