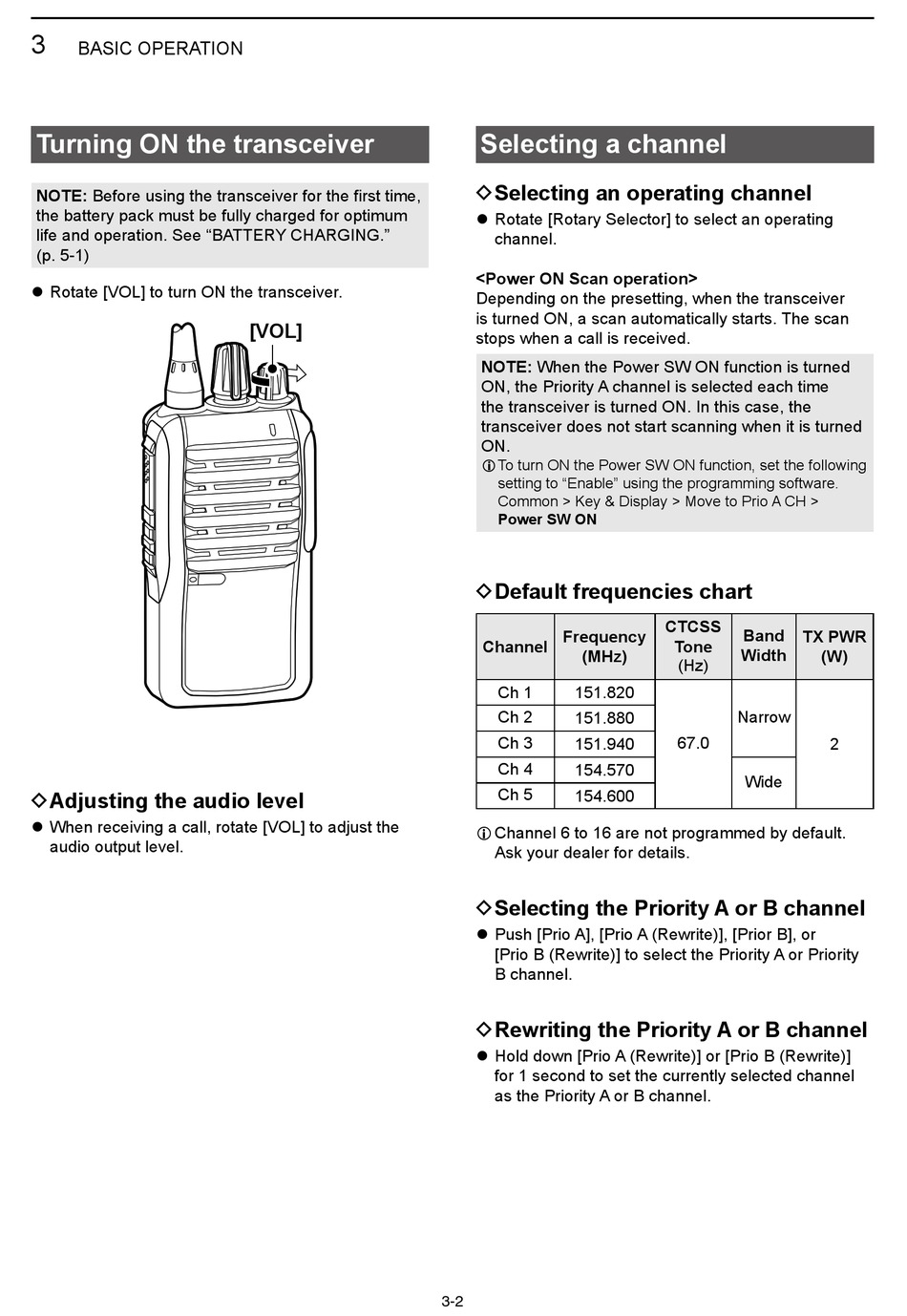

Section 3 Basic Operation; Turning On The Transceiver; Dadjusting The Audio Level; Selecting A Channel - Icom IC-V3MR Instruction Manual

3
BASIC OPERATION

Turning ON the transceiver

NOTE: Before using the transceiver for the first time,
the battery pack must be fully charged for optimum
life and operation� See "BATTERY CHARGING�"
(p� 5-1)
z Rotate [VOL] to turn ON the transceiver�

DAdjusting the audio level

z When receiving a call, rotate [VOL] to adjust the
audio output level�
[VOL]

Selecting a channel

DSelecting an operating channel

z Rotate [Rotary Selector] to select an operating
channel�
<Power ON Scan operation>
Depending on the presetting, when the transceiver
is turned ON, a scan automatically starts� The scan
stops when a call is received�
NOTE: When the Power SW ON function is turned
ON, the Priority A channel is selected each time
the transceiver is turned ON� In this case, the
transceiver does not start scanning when it is turned
ON�
L To turn ON the Power SW ON function, set the following
setting to "Enable" using the programming software�
Common > Key & Display > Move to Prio A CH >
Power SW ON

DDefault frequencies chart

Frequency
Channel
(MHz)
Ch 1 151�820
Ch 2
151�880
Ch 3
151�940
Ch 4
154�570
Ch 5
154�600
L Channel 6 to 16 are not programmed by default�
Ask your dealer for details�

DSelecting the Priority A or B channel

z Push [Prio A], [Prio A (Rewrite)], [Prior B], or
[Prio B (Rewrite)] to select the Priority A or Priority
B channel�

DRewriting the Priority A or B channel

z Hold down [Prio A (Rewrite)] or [Prio B (Rewrite)]
for 1 second to set the currently selected channel
as the Priority A or B channel�
3-2
CTCSS
Band
TX PWR
Tone
Width
(W)
(Hz)
Narrow
67�0
2
Wide
