Icom IP110H Operating Manual page 48

6
FOR YOUR REFERENCE

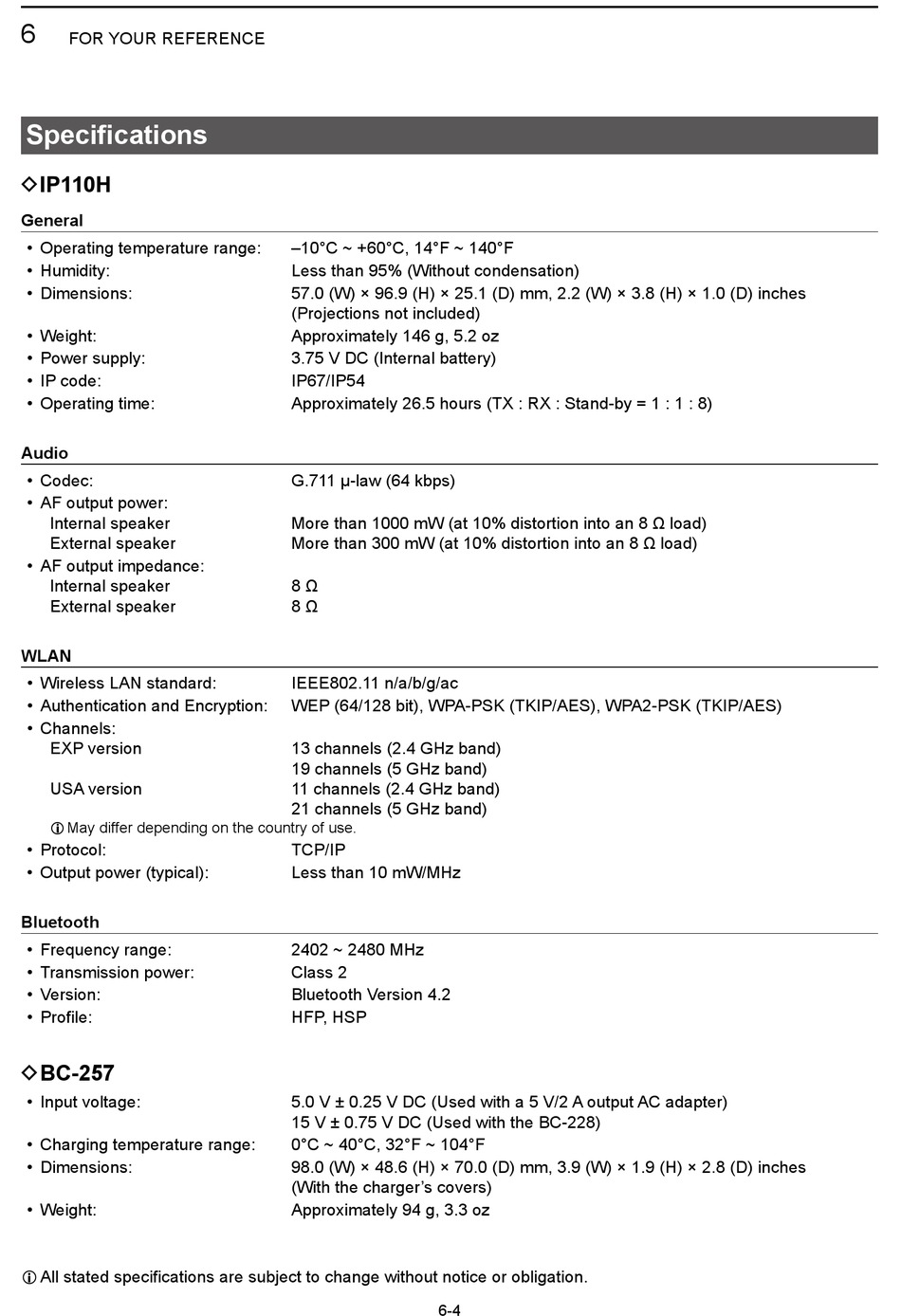

Specifications
DIP110H
General
• Operating temperature range:
• Humidity:
• Dimensions:
• Weight:
• Power supply:
• IP code:
• Operating time:
Audio
• Codec:
• AF output power:
Internal speaker
External speaker
• AF output impedance:
Internal speaker
External speaker
WLAN
• Wireless LAN standard:
• Authentication and Encryption:
• Channels:
EXP version
USA version
L May differ depending on the country of use.
• Protocol:
• Output power (typical):
Bluetooth
• Frequency range:
• Transmission power:
• Version:
• Profile:
DBC-257
• Input voltage:
• Charging temperature range:
• Dimensions:
• Weight:
L All stated specifications are subject to change without notice or obligation.
–10°C ~ +60°C, 14°F ~ 140°F
Less than 95% (Without condensation)
57�0 (W) × 96�9 (H) × 25�1 (D) mm, 2�2 (W) × 3�8 (H) × 1�0 (D) inches
(Projections not included)
Approximately 146 g, 5�2 oz
3�75 V DC (Internal battery)
IP67/IP54
Approximately 26�5 hours (TX : RX : Stand-by = 1 : 1 : 8)
G.711 μ-law (64 kbps)
More than 1000 mW (at 10% distortion into an 8 Ω load)
More than 300 mW (at 10% distortion into an 8 Ω load)
8 Ω
8 Ω
IEEE802.11 n/a/b/g/ac
WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
13 channels (2�4 GHz band)
19 channels (5 GHz band)
11 channels (2�4 GHz band)
21 channels (5 GHz band)
TCP/IP
Less than 10 mW/MHz
2402 ~ 2480 MHz
Class 2
Bluetooth Version 4�2
HFP, HSP
5.0 V ± 0.25 V DC (Used with a 5 V/2 A output AC adapter)
15 V ± 0�75 V DC (Used with the BC-228)
0°C ~ 40°C, 32°F ~ 104°F
98�0 (W) × 48�6 (H) × 70�0 (D) mm, 3�9 (W) × 1�9 (H) × 2�8 (D) inches
(With the charger's covers)
Approximately 94 g, 3�3 oz
6-4
