Icom IP110H Operating Manual page 12

2
BASIC OPERATION

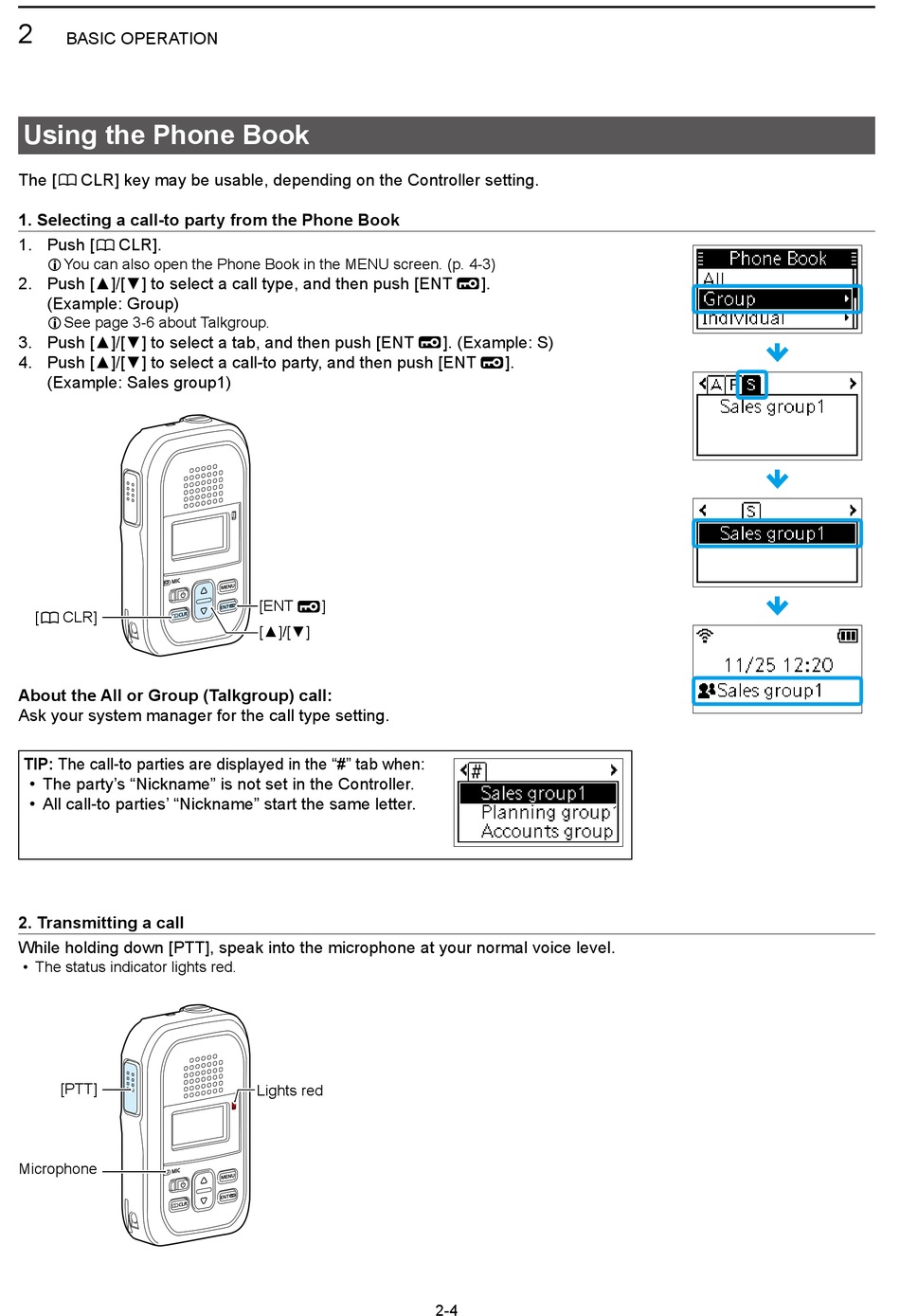

Using the Phone Book
The [ CLR] key may be usable, depending on the Controller setting�
1. Selecting a call-to party from the Phone Book
1� Push [ CLR]�
L You can also open the Phone Book in the MENU screen� (p� 4-3)
2� Push [▲]/[▼] to select a call type, and then push [ENT
(Example: Group)
L See page 3-6 about Talkgroup�
3� Push [▲]/[▼] to select a tab, and then push [ENT
4� Push [▲]/[▼] to select a call-to party, and then push [ENT
(Example: Sales group1)
[ CLR]
About the All or Group (Talkgroup) call:
Ask your system manager for the call type setting�
TIP: The call-to parties are displayed in the "#" tab when:
• The party's "Nickname" is not set in the Controller�
• All call-to parties' "Nickname" start the same letter�
2. Transmitting a call
While holding down [PTT], speak into the microphone at your normal voice level�
• The status indicator lights red�
[PTT]
Microphone
[ENT ]
[▲]/[▼]
Lights red
]�
]� (Example: S)
]�
2-4
