5
OPTIONS

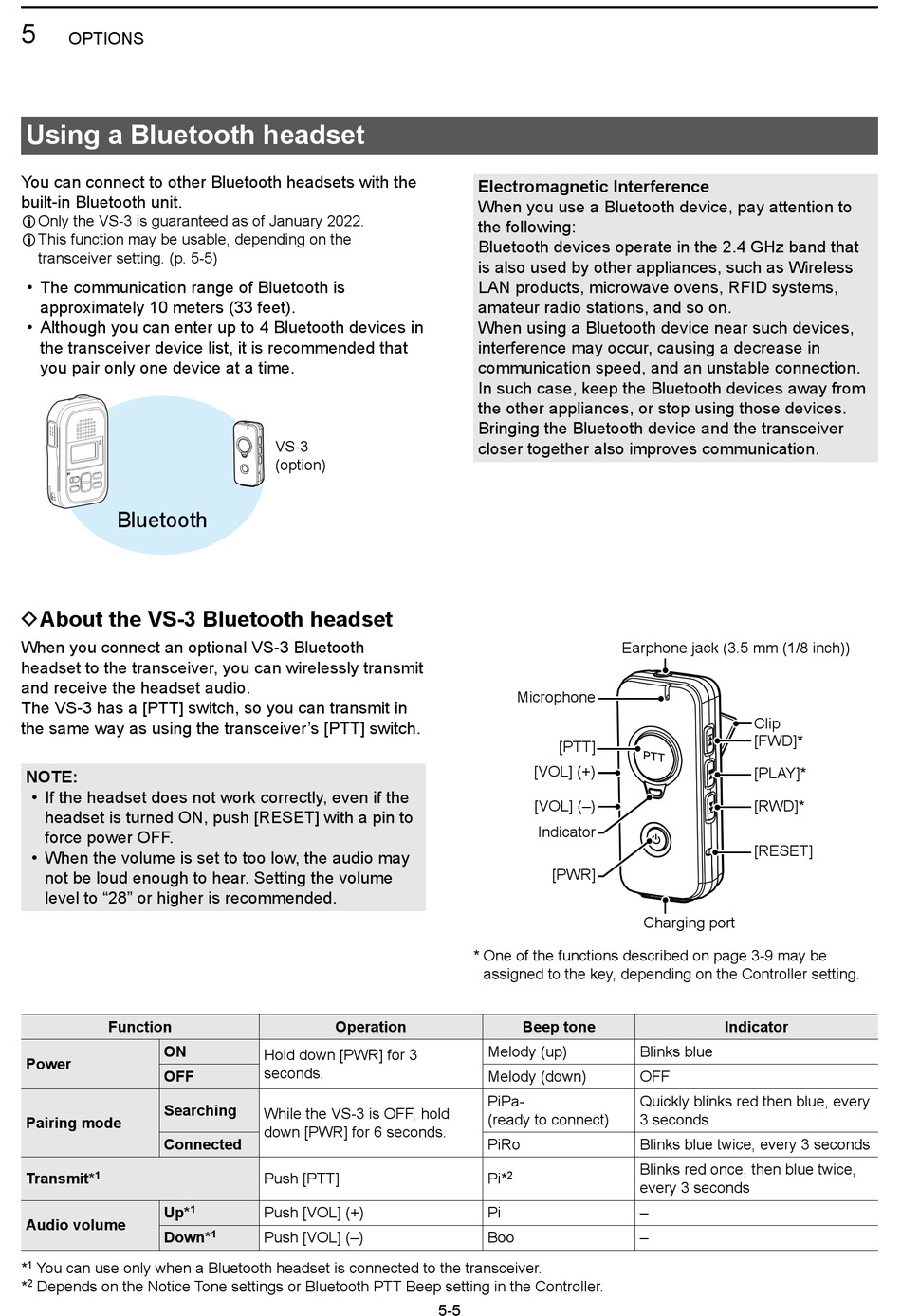

Using a Bluetooth headset
You can connect to other Bluetooth headsets with the
built-in Bluetooth unit�
L Only the VS-3 is guaranteed as of January 2022�
L This function may be usable, depending on the
transceiver setting� (p� 5-5)
• The communication range of Bluetooth is
approximately 10 meters (33 feet)�
• Although you can enter up to 4 Bluetooth devices in
the transceiver device list, it is recommended that
you pair only one device at a time�
Bluetooth
DAbout the VS-3 Bluetooth headset
When you connect an optional VS-3 Bluetooth
headset to the transceiver, you can wirelessly transmit
and receive the headset audio�
The VS-3 has a [PTT] switch, so you can transmit in
the same way as using the transceiver's [PTT] switch.
NOTE:
• If the headset does not work correctly, even if the
headset is turned ON, push [RESET] with a pin to
force power OFF�
• When the volume is set to too low, the audio may
not be loud enough to hear� Setting the volume
level to "28" or higher is recommended�
Function
ON
Power
OFF
Searching
Pairing mode
Connected
Transmit*
1
Up*
1
Audio volume
Down*
*
1
You can use only when a Bluetooth headset is connected to the transceiver�
*
Depends on the Notice Tone settings or Bluetooth PTT Beep setting in the Controller�
2
VS-3
(option)
Operation
Hold down [PWR] for 3
seconds�
While the VS-3 is OFF, hold
down [PWR] for 6 seconds�
Push [PTT]
Push [VOL] (+)
1
Push [VOL] (–)
Electromagnetic Interference
When you use a Bluetooth device, pay attention to
the following:
Bluetooth devices operate in the 2�4 GHz band that
is also used by other appliances, such as Wireless
LAN products, microwave ovens, RFID systems,
amateur radio stations, and so on�
When using a Bluetooth device near such devices,
interference may occur, causing a decrease in
communication speed, and an unstable connection�
In such case, keep the Bluetooth devices away from
the other appliances, or stop using those devices�
Bringing the Bluetooth device and the transceiver
closer together also improves communication�
Microphone
[PTT]
[VOL] (+)
[VOL] (–)
Indicator
[PWR]
* One of the functions described on page 3-9 may be
assigned to the key, depending on the Controller setting�
Beep tone
Melody (up)
Melody (down)
PiPa-
(ready to connect)
PiRo
Pi*
2
Pi
Boo
5-5
Earphone jack (3�5 mm (1/8 inch))
Clip
[FWD]*
[PLAY]*
[RWD]*
[RESET]
Charging port
Indicator
Blinks blue
OFF
Quickly blinks red then blue, every
3 seconds
Blinks blue twice, every 3 seconds
Blinks red once, then blue twice,
every 3 seconds
–
–
