2.2.1 Paging Amplifier Components

Figure 2-3
Operations Guide
shows the components of the Paging Amplifier.

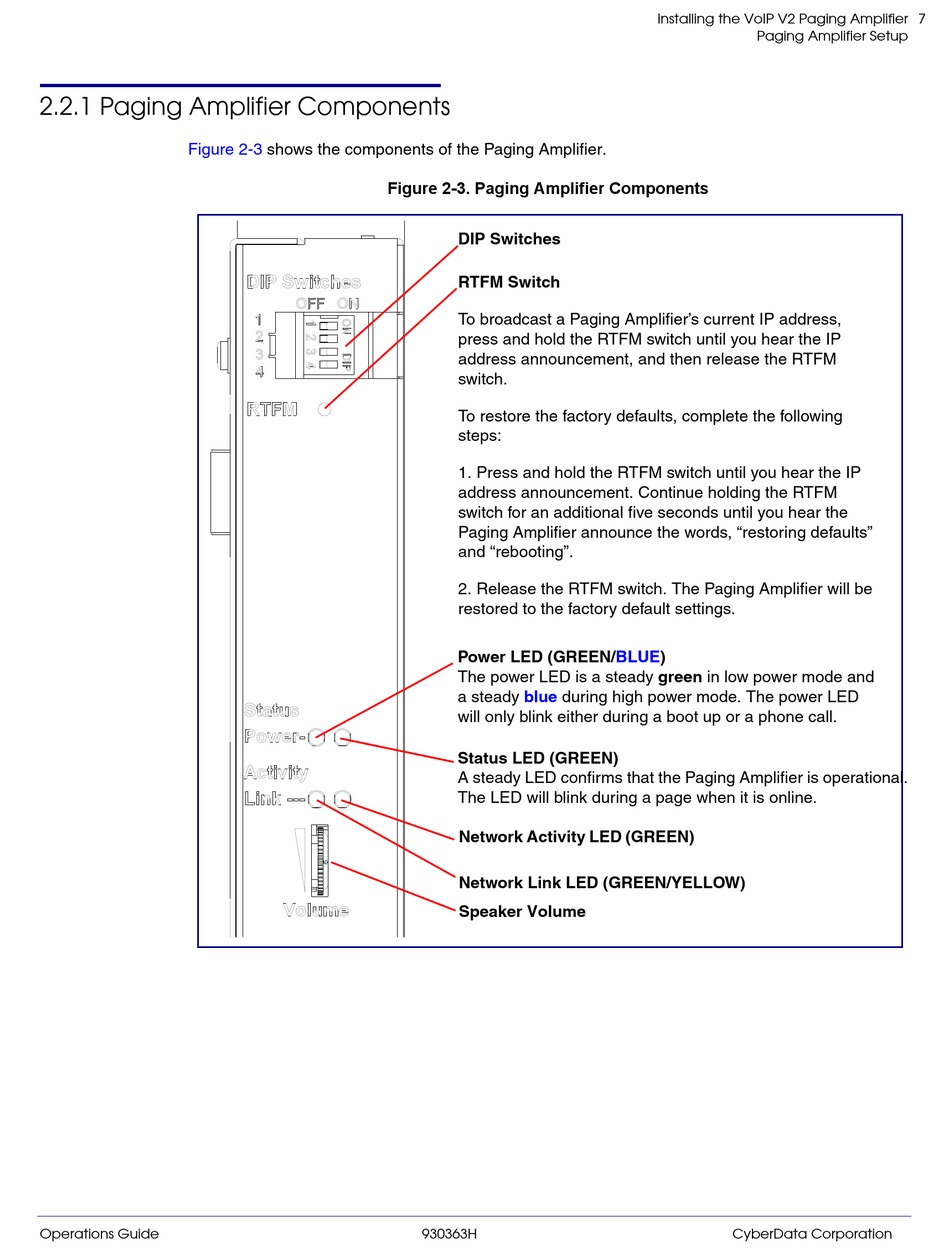

Figure 2-3. Paging Amplifier Components
930363H
DIP Switches
RTFM Switch
To broadcast a Paging Amplifier's current IP address,
press and hold the RTFM switch until you hear the IP
address announcement, and then release the RTFM
switch.
To restore the factory defaults, complete the following
steps:
1. Press and hold the RTFM switch until you hear the IP
address announcement. Continue holding the RTFM
switch for an additional five seconds until you hear the
Paging Amplifier announce the words, "restoring defaults"
and "rebooting".
2. Release the RTFM switch. The Paging Amplifier will be
restored to the factory default settings.
Power LED (GREEN/BLUE)
The power LED is a steady green in low power mode and
a steady blue during high power mode. The power LED
will only blink either during a boot up or a phone call.
Status LED (GREEN)
A steady LED confirms that the Paging Amplifier is operational.
The LED will blink during a page when it is online.
Network Activity LED (GREEN)
Network Link LED (GREEN/YELLOW)
Speaker Volume
