CyberData 011085 Operation Manual page 19

Speaker Connection
011068 Loudspeaker
Relay Connection
+12V Strobe
AC or DC
Power
Source
See
Connection
Ethernet
Operations Guide
802.3af Compliant Ethernet Switch or
802.3at High Power PoE Switch
1 2
802.3at PoE Injector
Paging Amplifier
(8 Ohm) (up to 25 watts)

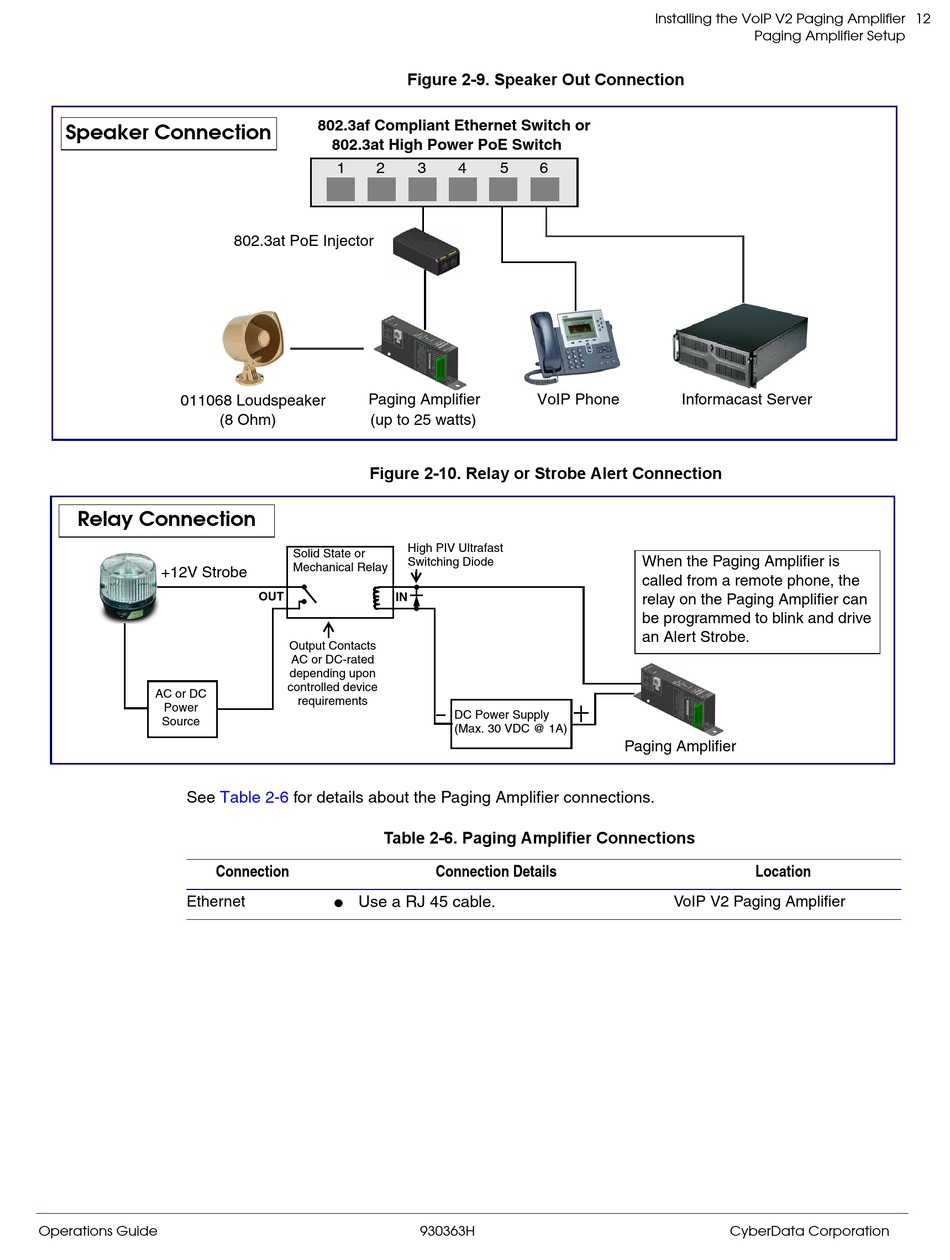

Figure 2-10. Relay or Strobe Alert Connection
Solid State or 
Mechanical Relay
OUT
IN
Output Contacts
AC or DC-rated
depending upon
controlled device
requirements
Table 2-6 for details about the Paging Amplifier connections.
Table 2-6. Paging Amplifier Connections
Use a RJ 45 cable.
●
Figure 2-9. Speaker Out Connection
3 4 5 6
VoIP Phone
High PIV Ultrafast
Switching Diode
DC Power Supply
(Max. 30 VDC @ 1A)
Connection Details
930363H
Installing the VoIP V2 Paging Amplifier
Paging Amplifier Setup
Informacast Server
When the Paging Amplifier is
called from a remote phone, the
relay on the Paging Amplifier can
be programmed to blink and drive
an Alert Strobe.
Paging Amplifier
Location
VoIP V2 Paging Amplifier
CyberData Corporation
12
