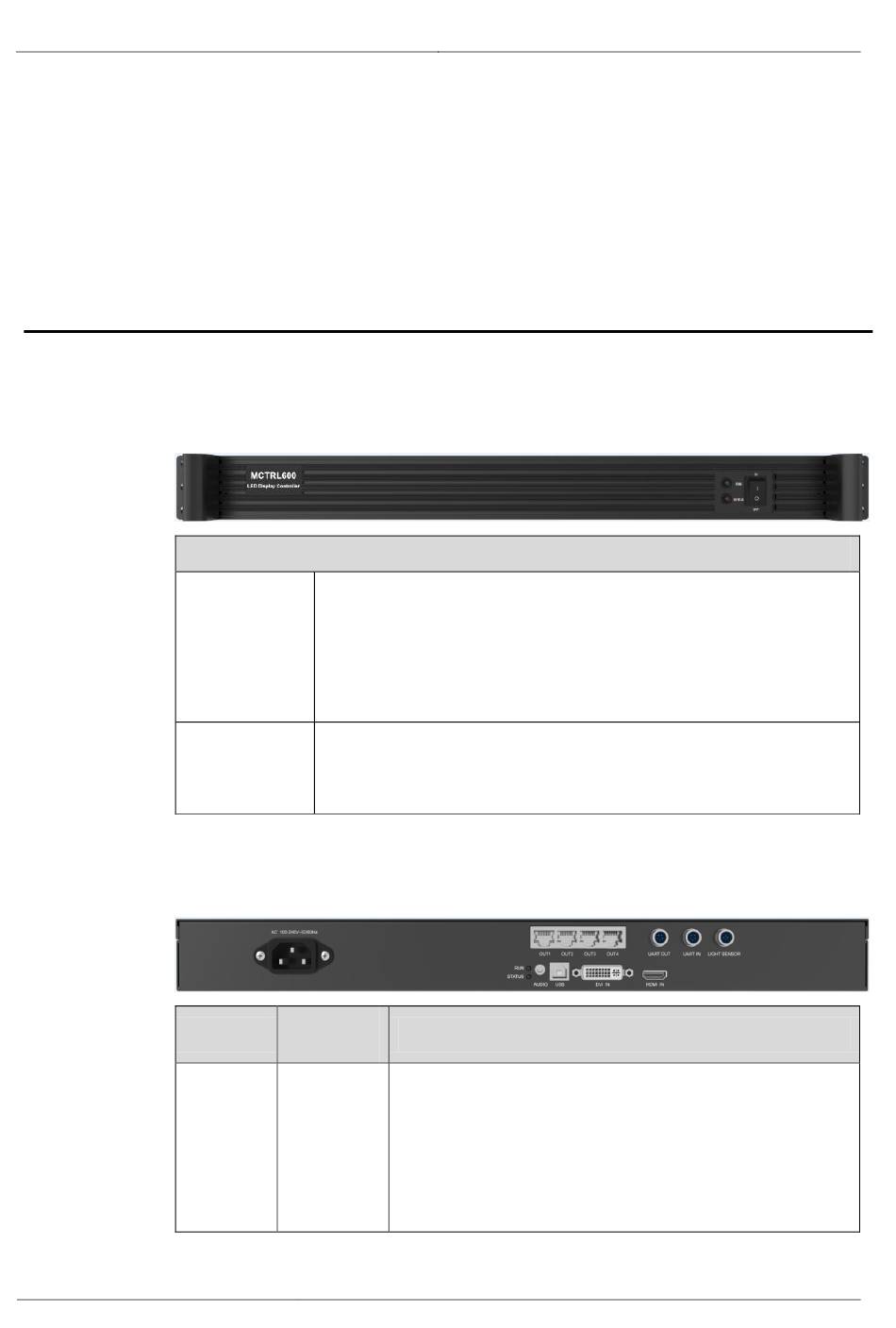

3.1 Front Panel

Indicators
RUN
STATUS

3.2 Rear Panel

Connector
Input
www.novastar.tech
Device operating indicator. Working status:
 Flashing slowly: Video input unavailable

Flashing normally: Video input available
 Flashing rapidly: The screen is displaying startup image.
 Breathing: Ethernet port redundancy has taken effect.
Device power indicator. Working status:
 On: The power supply is normal.
 Off: The power is not supplied, or the power supply is abnormal.
Connector
Description
Name
DVI IN  Single-link DVI connector
 Resolution up to 1920×1200@60Hz and downward
compatible
 Custom resolutions supported:
Resolution with maximum width: 3840×600@60Hz
Resolution with maximum height: 800×2560@60Hz
