Appearance

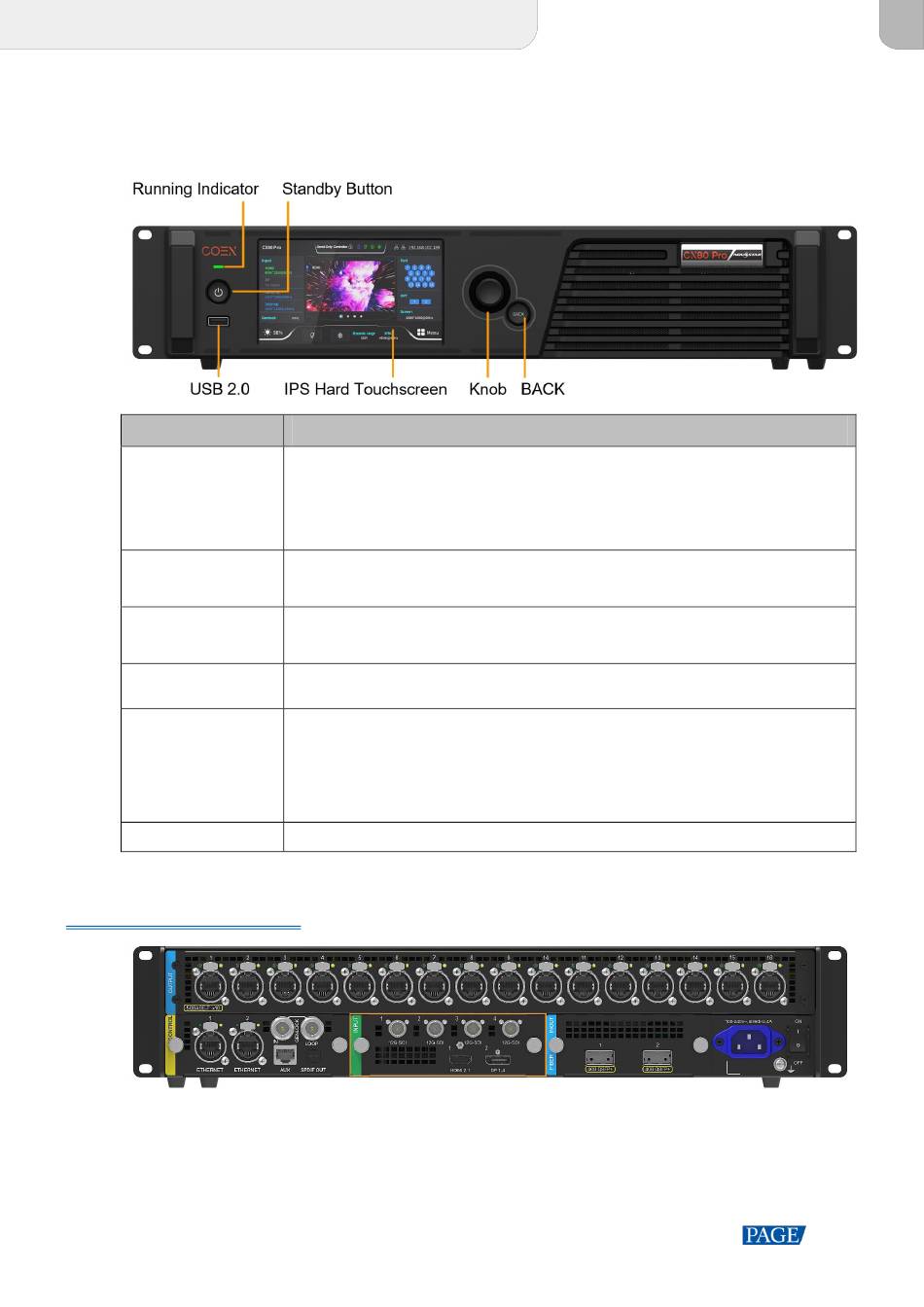

2.1 Front Panel

Name
Running Indicator
Standby Button
USB 2.0
IPS Hard Touchscreen
Knob
BACK

2.2 Rear Panel

With Input Card 1 Installed
www.novastar.tech
Description

Solid red: Standby

Solid blue: The device is being started.

Solid green: The device is running normally.

Flashing red: The device is running abnormally.

Press the button to power on or power off the device.

Hold down the button for 5s or longer to restart the device.

Connect to the USB drive only to export the device diagnostic result.

Only the NTFS and FAT32 file systems are supported. Others are not supported.
A 5.5-inch 1080p screen used to display the device status, set parameters and send
control commands.

On the home screen, press the knob to enter the main menu screen.

On the main menu screen, rotate the knob to select a menu item or adjust the
parameter value. Press the knob to confirm the operation.

Hold down the knob and BACK button simultaneously for 5s or longer to lock or unlock
the touch screen and buttons.
Go back to the previous menu or cancel the current operation.
