ACCESSORIES

Relay Modules

2098-9737 Relay Module Wiring
The 2098-9737 Relay module is used with 4098-9791 sensor base. Install the
relay module using Figure 15 and 20 as a reference.
+24VDC
FROM PANEL
SEE NOTE 1
CENTER
CONTACT B
N.C.
SEE NOTE 2
N.O.
Notes:
1. 18 to 32 VDC 24 mA typical/35 mA maximum.
2. Contact A or B: dry, Form C, each rated 3 amps at 28 VDC/115 VAC, resistive.
3. Maximum wire length between sensor and relay module is 100 feet.

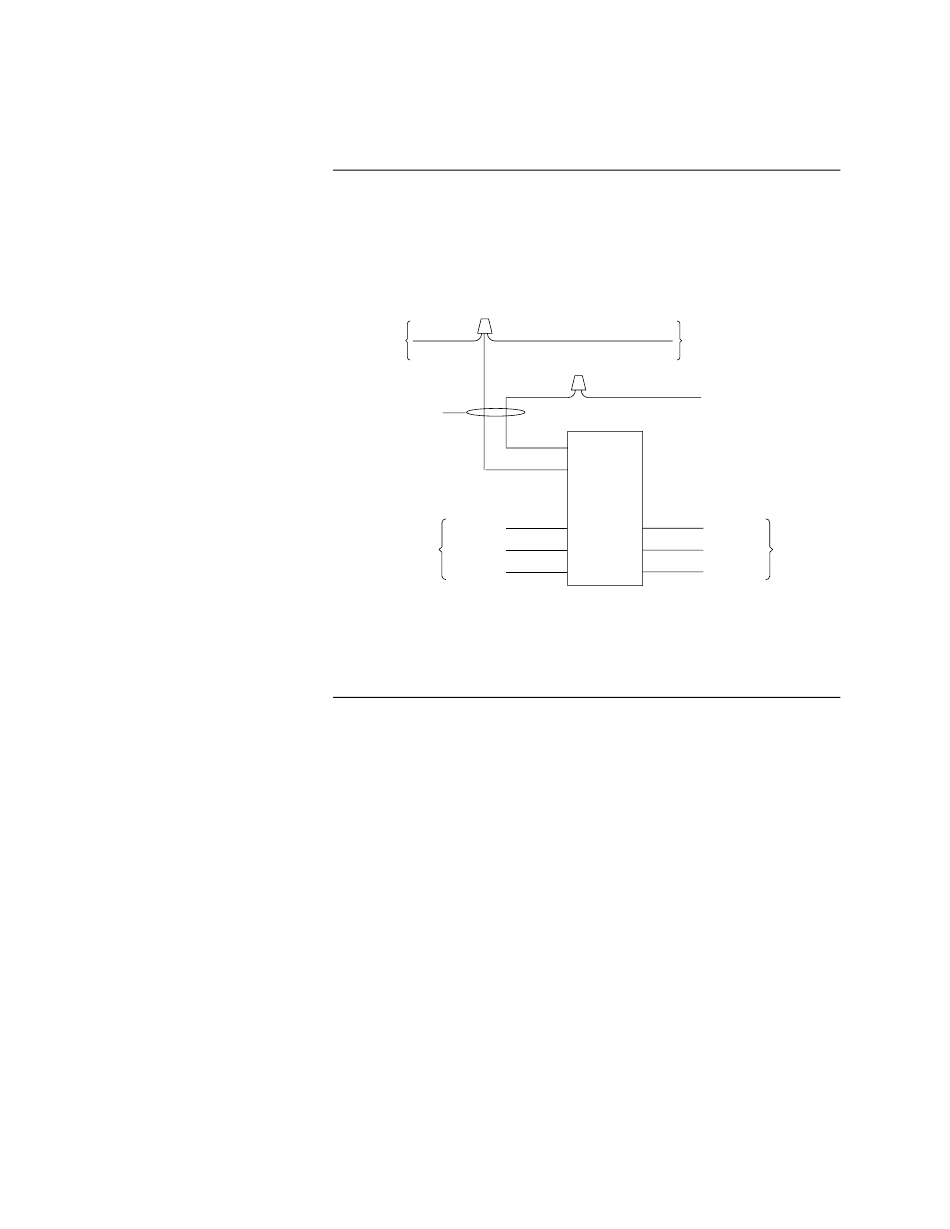

Figure 20. 2098-9737 Relay Module Wiring
38
firealarmresources.com
+24VDC
SUPERVISORY MODULE
BLACK/WHITE
BLACK
2098-9737
BLACK
RELAY
BLUE ORANGE
VIOLET YELLOW
GREY GREEN
Continued on next page
TO OTHER 24VDC
DEVICES OR
TO 4098-9791
SENSOR BASE
SEE NOTE 3
CENTER
CONTACT A
N.C.
SEE NOTE 2
N.O.
