4098 TrueAlarm SENSOR BASES,
Wiring (continued)
FROM
PANEL
TO NEXT
24V OR NAC
CIRCUIT
(SEE NOTES 8 & 10)
4098-9794, -9795
SENSOR BASE
SHIELD
(SEE NOTE 3)
+ MAPNET II/IDNet
FROM
PANEL
- MAPNET II/IDNet
Notes:
1.
Remote LED and relay wires are not supervised.
2.
Maximum quantity of devices per circuit is 127 for 4020, 4100+, or 4120, 128 for the 2120 CDT panel, and 250 for the 4010 panel. Maximum quantity of 4098-9795 and -9796 Multi-Sensor bases is 63
with 4020, 4100+, and 4120, and 124 for the 4010 panel. If 4098-9795 output is coded (Temporal code, etc.) via MAPNET II/IDNet control see note 10.
3.
If shield is used, twist shield wires together and cap with wire nut. Shield should be insulated from electrical box.
4.
Contact A or B: Dry, Form C - each rated 2 amperes at 24 VDC/0.5 amperes at 110 VAC, resistive.
5.
18 to 32 VDC, .008 amperes typical/.013 amperes max.
6.
Do not use remote LED if the 4098-9822 relay module is used.
7.
Contact A or B: Dry, Form C – Each rated at 3 amperes at 28 VDC/115 VAC, resistive.
8.
4098-9791, 4098-9794, 4098-9795, and 4098-9796 are not compatible with 2120 CDT.
9.
Maximum wire length between 4098-9791 sensor base and 2098-9737 relay module is 100 feet.
10. Maximum quantity of sensors with 4098-9794 or 4098- 9795 sounder bases limited to 43 if output is coded (Temporal code, etc.) via MAPNET II/IDNet control. If coding is performed via 24VDC or NAC circuit,
see note 2.
Continued
Caution: Do not loop wire under terminals. Break wire runs to provide supervision.
+24V
FROM
PANEL
0V
2098-9808
+
+
REMOTE LED
OR 4098-9822
-
-
RELAY (IF USED)
(SEE NOTE 1)
(SEE
NOTE 5)
(SEE NOTE 8)
4098-9792
4098-9789, -9796
SENSOR BASE
SENSOR BASE
SHIELD
(SEE NOTE 3)
(SEE NOTE 3)

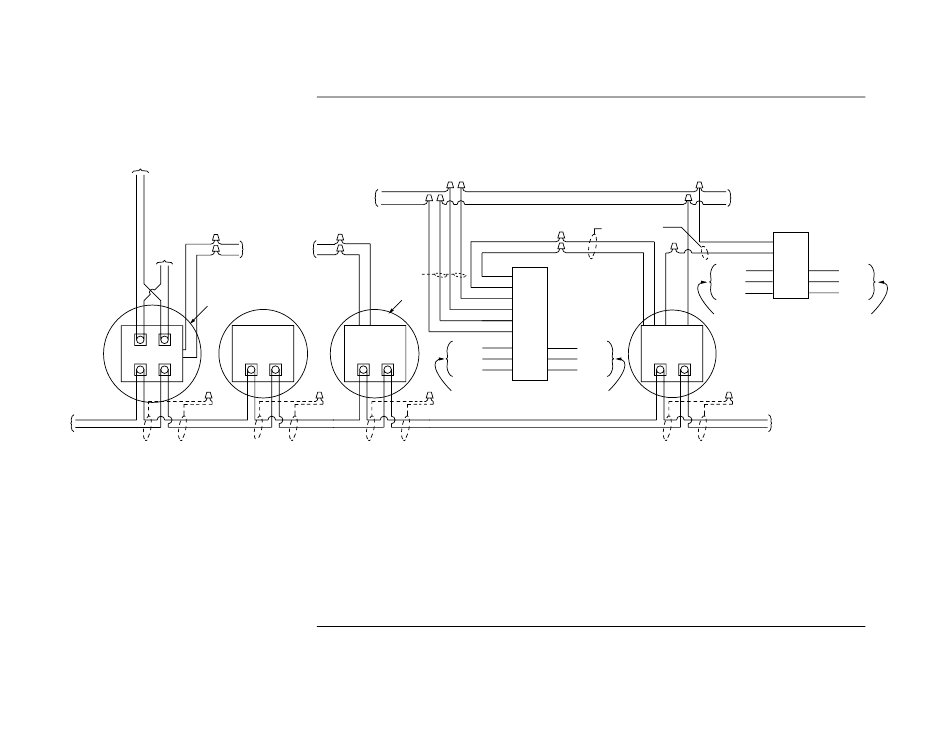

Figure 15. Sensor Base Connections
firealarmresources.com
+
-
BLUE
4098-9822
WHITE
RELAY
MODULE
RED
(SEE
RED
NOTE 6)
BLACK
BLACK
BROWN
ORANGE
CENTER
CENTER
VIOLET
YELLOW
N.C.
N.C.
GREY
GREEN
N.O.
N.O.
SHIELD
CONTACT A
CONTACT B
(SEE NOTE 4)
(SEE NOTE 4)
32
+24V
TO OTHER 24V DEVICES
0V
(SEE
(SEE
NOTE 9)
NOTE 6)
BLACK
2098-9737
BLACK
BLUE
CENTER
VIOLET
N.C.
GREY
N.O.
CONTACT B
(SEE NOTE 7)
4098-9791
SENSOR BASE
(SEE NOTE 8)
SHIELD
(SEE NOTE 3)
+ MAPNET II/IDNet
IDNet DEVICES
- MAPNET II/IDNet
Continued on next page
RELAY
(SEE
NOTE 9)
ORANGE
CENTER
YELLOW
N.C.
GREEN
N.O.
CONTACT A
(SEE NOTE 7)
TO OTHER
MAPNET II/
(SEE NOTE 2)
