List Operation

Users can use the front panel keypad or Power View 8500(PV-8500) software to
programming the list sequence. Please refer to the software user's guide.
The following example will help you how to do the list operation in front panel.

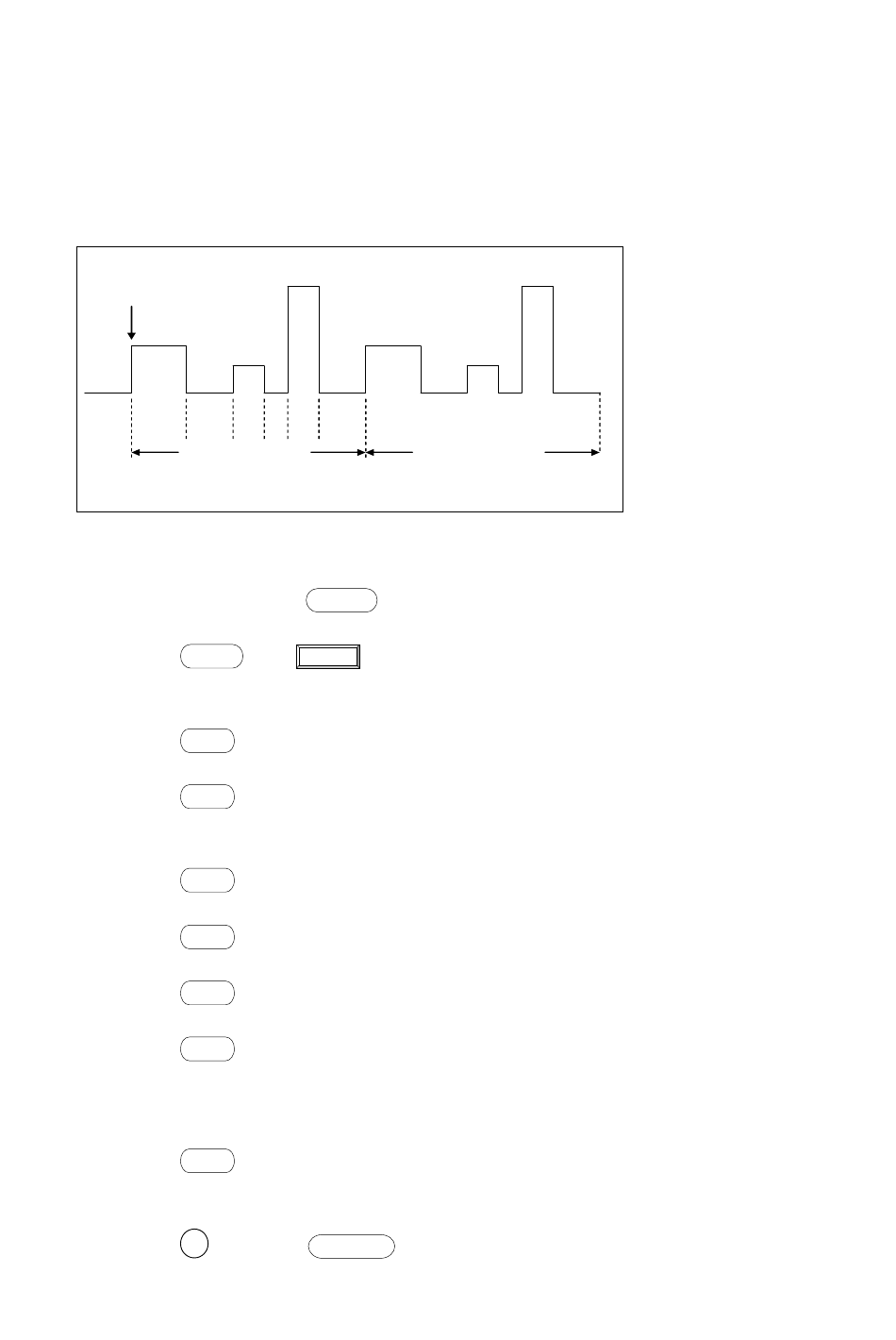

Trigger
0 1 2
List count=1
Action
1) Press the button of
Shift
2) Press
SET .
ENTER
3) Press into the next step menu .move cursor to EDIT LIST FILE.
ENTER
4) Press into the next step menu, move cursor to CURRENT LIST,
select CURRENT MODE.
ENTER
，move cursor to REPEAT . Setup LIST is in cycle mode.
5) Press
ENTER
6) Press to confirm, setup the list steps = 6.
ENTER
7) Press to confirm, setup step 1 current =3A.
ENTER
8) Press to confirm, setup step 1 width=6mS.
9) Repeat 7) and 8) operation , set current and width of one step 0A, 5mS;2A,
4mS;6A,2mS;0A,5mS.
ENTER
10) Press
to confirm, save file in group1.
11)
Move cursor to CONFIG, set trigger mode is IMMEDIATE.
ESC
，Press
12) Press
3 4 5
List sequence
Input on/off ，execute the input of Load I in OFF state.
Menu ，move cursor to the option of menu of LIST
and
Input on/off ，Make Load in ON state.
List count=2
