3 | Components
Problem solved?
Service manual
210
b
a

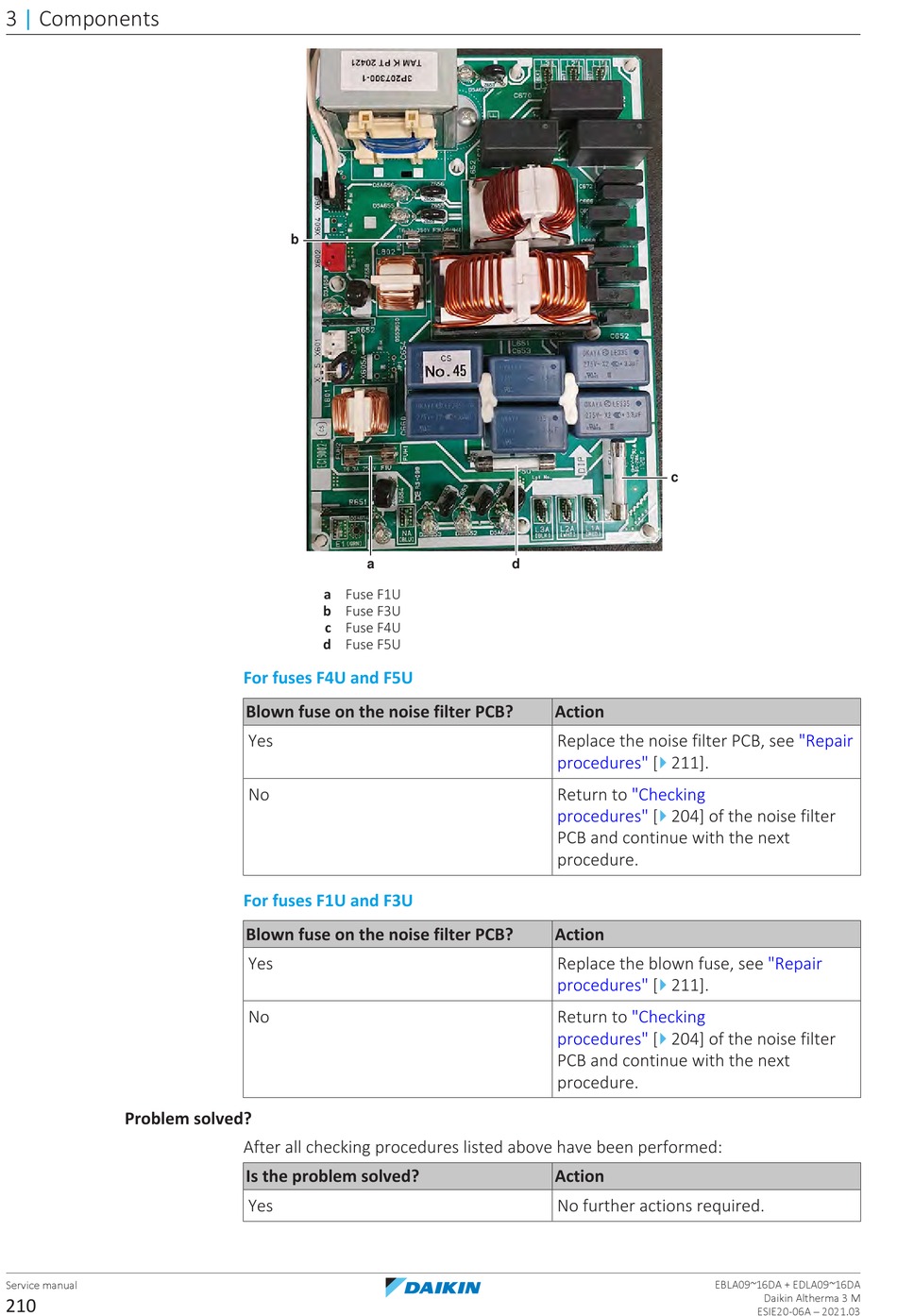

a Fuse F1U
b Fuse F3U
c Fuse F4U
d Fuse F5U
For fuses F4U and F5U
Blown fuse on the noise filter PCB?
Yes
No
For fuses F1U and F3U
Blown fuse on the noise filter PCB?
Yes
No
After all checking procedures listed above have been performed:
Is the problem solved?
Yes
c
d
Action
Replace the noise filter PCB, see
4
procedures" [ 211].
Return to "Checking
4
procedures" [ 204] of the noise filter
PCB and continue with the next
procedure.
Action
Replace the blown fuse, see
4
procedures" [ 211].
Return to "Checking
4
procedures" [ 204] of the noise filter
PCB and continue with the next
procedure.
Action
No further actions required.
"Repair
"Repair
