Hioki PW8001-01 Instruction Manual page 85

To connect torque meters and tachometers
Necessary items: L9217 Connection Cord (necessary quantity),
device to be connected (such as torque sensor and tachometer)
1
Verify that the instrument and the device being connected have been turned off.
2
Connect the device's output terminal to the instrument with a connection cord.
See "Connection examples of motor analysis" (p. 81).
3
Turn on the instrument.
4
Turn on the connected device.
Connection method
There are several different operating modes and connection patterns available for the motor inputs.
Display screen [INPUT]
1 1
2 2
[Individual input] mode
The motor inputs can be used as independent analog DC inputs or as pulse inputs.
Operating mode
Individual Input
Using this mode can measure and display the signal from a voltage-output sensor, or measure the frequency
of a pulse input and display the waveform.
> [MOTOR]
3 3
Settable channels
AB, CD, EF, GH
HIOKI PW8001A961-00
Motor Measurement (Motor Analysis-Equipped Model)
1

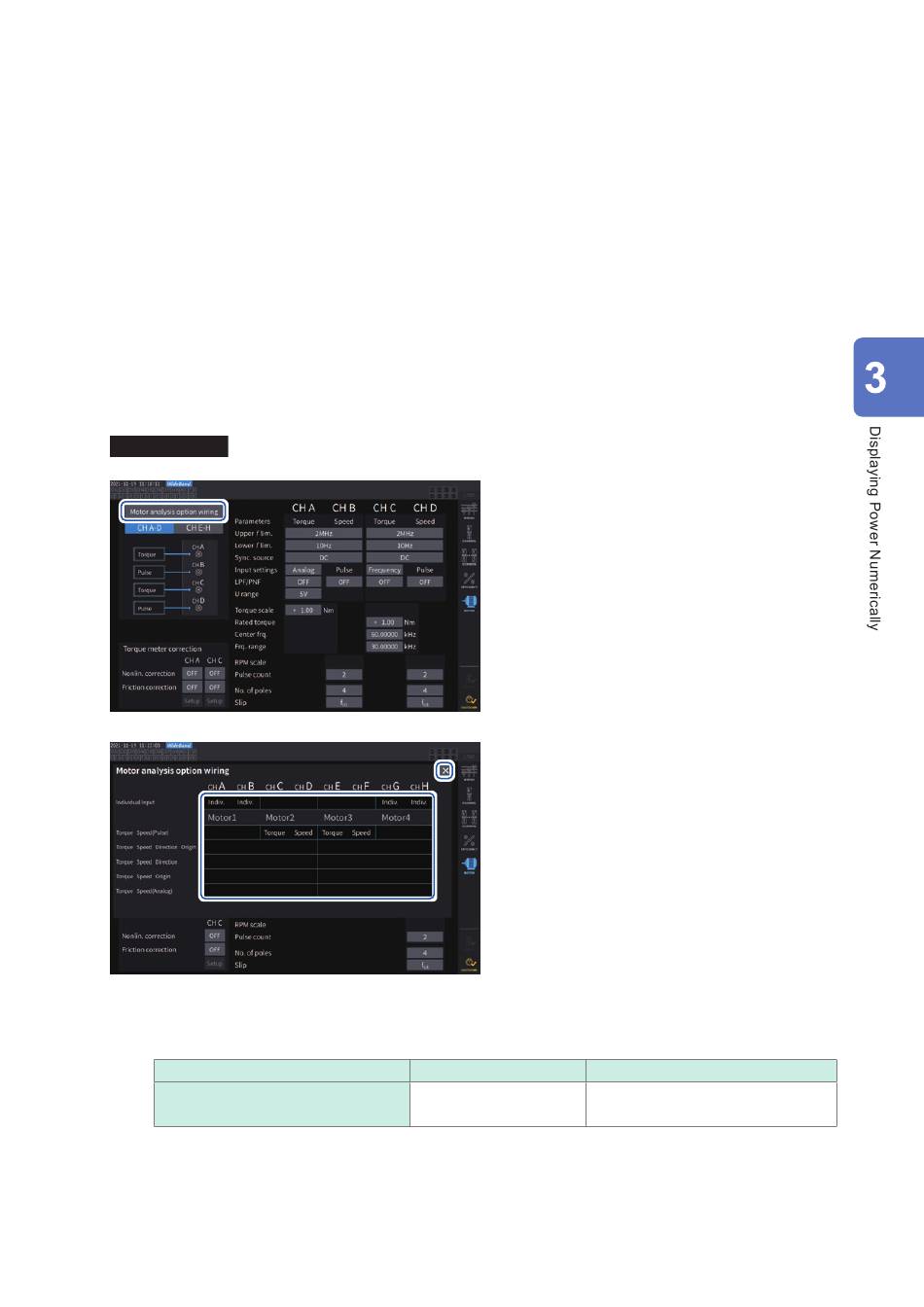

Tap [Motor analysis option wiring]
open the settings window.
2
Select the operation mode for the
motor analysis option channels.
3
×
Tap [ ] to close the setting window.
Description
For measuring voltage signals and
pulse signals
to
79
