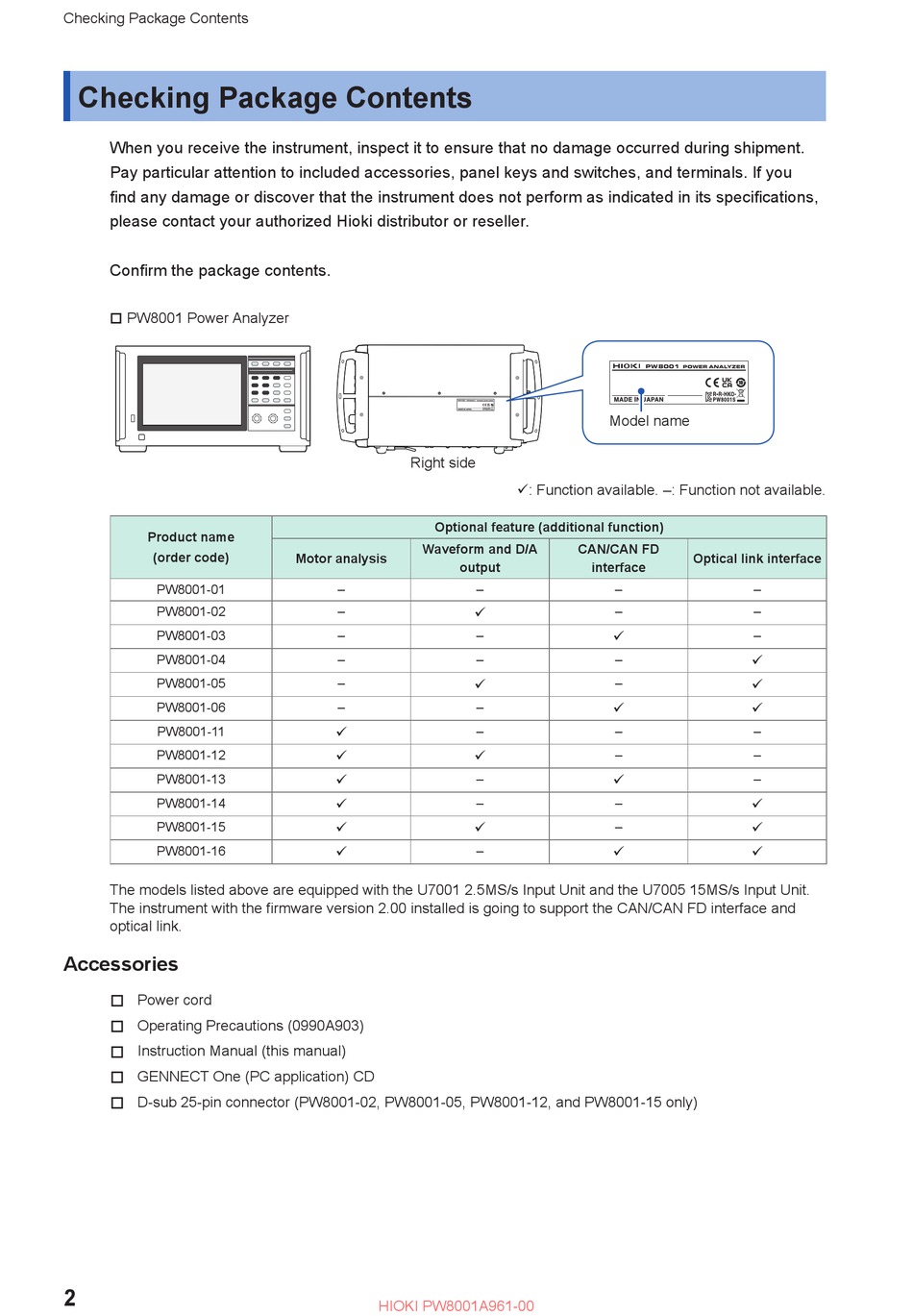

Checking Package Contents

Checking Package Contents
When you receive the instrument, inspect it to ensure that no damage occurred during shipment.
Pay particular attention to included accessories, panel keys and switches, and terminals. If you
find any damage or discover that the instrument does not perform as indicated in its specifications,
please contact your authorized Hioki distributor or reseller.
Confirm the package contents.
 PW8001 Power Analyzer
Product name
(order code)
PW8001-01
PW8001-02
PW8001-03
PW8001-04
PW8001-05
PW8001-06
PW8001-11
PW8001-12
PW8001-13
PW8001-14
PW8001-15
PW8001-16
The models listed above are equipped with the U7001 2.5MS/s Input Unit and the U7005 15MS/s Input Unit.
The instrument with the firmware version 2.00 installed is going to support the CAN/CAN FD interface and
optical link.
Accessories
Power cord

Operating Precautions (0990A903)

Instruction Manual (this manual)

GENNECT One (PC application) CD

D-sub 25-pin connector (PW8001-02, PW8001-05, PW8001-12, and PW8001-15 only)

2
Right side
Optional feature (additional function)
Waveform and D/A
Motor analysis
output
–
–
–
–
–
–






HIOKI PW8001A961-00
Model name
: Function available. –: Function not available.
CAN/CAN FD
interface
– –
–

–

– –
–

–

– –
–

–

– –
–

–

Optical link interface
–
–
–



–
–
–



