Record and Analyze Power Supply Problems Simultaneously with a Single Unit
The New World Standard for Power Quality Analysis
Never Miss
the Moment
● Detect power supply problems and perform onsite troubleshooting
● Do preventive maintenance to avert accidents by managing the power quality
CAT
IV-600V Safety Standard
● Meets the CAT IV safety rating required to check an incoming power line
● Safe enough to measure up to 6,000Vpeak of transient overvoltage
Easy Setup
Function with PRESETS
● Just select the measurement course, wiring, and clamps
● Automatic one-step setup based on measurement conditions
Compliant with
International Standards
● International power quality measurement standard IEC 61000-4-30 Edition 2 Class A
● High precision with a basic voltage measurement accuracy of 0.1%
POWER QUALITY ANALYZER
AC FLEXIBLE CURRENT SENSOR
Introducing 2 new variations with a thinner cable!
Easy to loop around, even in confined spaces
CT9667-01
φ100 mm (3.94")

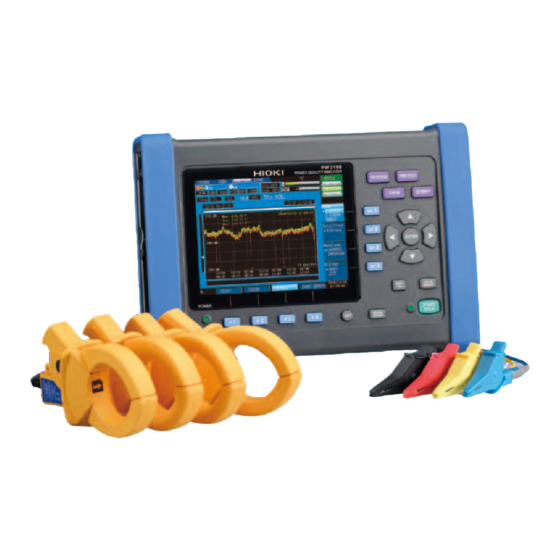

PW3198
Cable diameter
φ13 mm(0.51")
Legacy
product
New
additions
CT9667-01, -02
Cable diameter
φ7.4 mm(0.29")
CT9667-02
φ180 mm (7.09")
Advertisement
Related Manuals for Hioki PW3198-90
Summary of Contents for Hioki PW3198-90
- Page 1 POWER QUALITY ANALYZER PW3198 Record and Analyze Power Supply Problems Simultaneously with a Single Unit The New World Standard for Power Quality Analysis Never Miss the Moment ● Detect power supply problems and perform onsite troubleshooting ● Do preventive maintenance to avert accidents by managing the power quality IV-600V Safety Standard ●...
- Page 2 One Single Unit Can Solve All Your Power Supply Problems The number of power supply problems is increasing as power systems are becoming more and more complicated - all due to the rising use of power electronics devices plus a growing installed base of large systems and distributed power supplies.
- Page 3 Advanced Features for Safe, Simple, and Accurate Measurements CAT IV-600V Safety International Standard IEC61000-4-30 Edition 2 Class A Class A is defined in the international standard IEC61000-4-30, The PW3198 is compliant with the measurement category which specifies compatibility with power quality parameters, CAT IV - 600V and can also safely test the incoming lines for accuracy, and standards to enable comparison and discussion both single-phase and three-phase power supplies.
- Page 4 PW3198 Never Misses the Moment a Power Supply Failure Occurs The PW3198 can measure all waveforms of power, harmonic, and error events simultaneously. When a problem occurs with the equipment or system on your site, the PW3198 will help you detect the cause of the problem early and solve it quickly. You can depend on the PW3198 to monitor all aspects of your power supplies.
- Page 5 TIME PLOT Data Event Waveforms Simultaneous Recording of TIME PLOT Data TIME PLOT Recording of All Parameters The PW3198 can simultaneously record 8,000 or more parameters, such as voltage, current, power, power factor, frequency, integral power, harmonic, and flicker, at the specified recording interval. The PW3198 never fails to capture the peak because it performs cal- culations continuously and records the maximum, minimum, and average values within the recording interval.
-
Page 6: Viewer Function
Even Analyze Data Recorded with Models 3196 and 3197 PQAs EN50160 Display Function Data recorded with the HIOKI 3196 and 3197 Power Quality Analyzers can EN50160 is a power quality standard for the EU. In this mode, evaluate and also be analyzed. - Page 7 1000A AC and 5000A AC rated currents, a 5A AC sensor is also PW3198, plus download the data stored in the SD memory available. In addition, HIOKI’s CLAMP ON LEAK SENSORS enable you to accurately measure for leakage current down to the mA level, card using dedicated software (LAN access required).
- Page 8 Power Quality Survey Applications The power supply of the office equipment sometimes shuts down Medical equipment malfunctions urvey Objective urvey Objective The power supply of a printer at the office shuts down even Replacing the equipment with a new one by the service pro- though it is not operated.
-
Page 9: Measurement Items
Recording basic parameters and harmonics All Data (Full): Recording P&Harm items and inter-harmonics Memory data capacity SD memory card/ SDHC memory card 2G to 32GB Contact your HIOKI representative for special order larger capacity cards that offer the HIOKI guarantee. -
Page 10: Display Specifications
Slot : SD standard compliant Compatible card : SD memory card/ SDHC memory card (Use only HIOKI-approved SD memory cards) Supported memory capacity : SD memory card: Up to 2GB, SDHC memory card: Up to 32GB Media full processing : Saving of data to SD memory card is stopped... - Page 11 Measurement Specifications (For specifications when measuring 400Hz circuits, please inquire with your HIOKI distributor.) TIME PLOT The MAX/MIN/AVG of each recording interval for each parameter are recorded. EVENT When a power anomaly occurs, approx. 200ms instantaneous waveform is recorded. TRANSIENT When a transient overvoltage is detected, the 2ms instantaneous waveforms before and after the occurrence (total 4ms) are recorded.
- Page 12 Voltage DC value (ch4 only) TIME PLOT EVENT Measurement method Average value during approx. 20ms aggregation synchronized with the reference channel (CH4 only) Sampling frequency 200kHz Measurement range, resolution 600.00V, 0.01V Measurement accuracy ±0.3%rdg. ±0.08%f.s. Current DC value (ch4 only; when using compatible sensor) TIME PLOT EVENT Measurement method...
- Page 13 Total harmonic voltage/ Total harmonic current distortion factor TIME PLOT EVENT Display items THD-F (total harmonic distortion factor for the fundamental wave) THD-R (total harmonic distortion factor for the total harmonic including the fundamental wave) Measurement method Based on IEC61000-4-7:2002; Max. order: 50th Comparison window width 10 cycles (50 Hz), 12 cycles (60 Hz) No.
- Page 14 Clamp-on sensors specifications (Options) Clamp-on sensor CLAMP ON SENSOR 9694 CLAMP ON SENSOR 9660 CLAMP ON SENSOR 9661 Appearance Primary current rating 5A AC 100A AC 500A AC Output voltage 10mV/A AC AC 1mV/A AC AC 1mV/A AC Measurement range See input specifications Amplitude accuracy * ±0.3%rdg.±0.02%f.s.
- Page 15 AC/DC AUTO-ZERO CURRENT SENSOR AC/DC AUTO-ZERO CURRENT SENSOR AC/DC AUTO-ZERO CURRENT SENSOR Clamp-on sensor CT7731 CT7736 CT7742 Appearance Primary current rating 100A AC/DC 600A AC/DC 2000A AC/DC Output voltage 60A range : 10mV/A 60A range : 10mV/A 600A ramge : 1mV/A (The range is switched using 100A range : 1mV/A 600A range : 1mV/A...
- Page 16 PW3198 set with PQA HiVIEW PRO 9624-50 Note: Company names and Product names appearing in this catalog are trademarks or registered trademarks of various companies. HIOKI (Shanghai) SALES & TRADING CO., LTD. DISTRIBUTED BY TEL +86-21-6391-0090/0092 FAX +86-21-6391-0360 info@hioki.com.cn / www.hioki.cn HIOKI SINGAPORE PTE.LTD.
