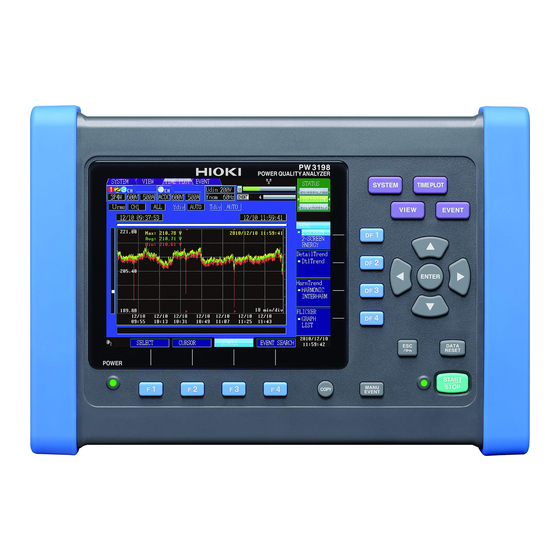

POWER QUALITY ANALYZER
Record and Analyze Power Supply Problems Simultaneously with a Single Unit
Record and Analyze Power Supply Problems Simultaneously with a Single Unit
The New World Standard for Power Quality Analysis
Power Measuring Instruments
Never Miss
the Moment
● Detect power supply problems and perform onsite troubleshooting
● Do preventive maintenance to avert accidents by managing the power quality
CAT
IV-600V Safety Standard
● Meets the CAT IV safety rating required to check an incoming power line
● Safe enough to measure up to 6,000Vpeak of transient overvoltage
Easy Setup
Function with PRESETS
● Just select the measurement course, wiring, and clamps
● Automatic one-step setup based on measurement conditions
Compliant with
New International Standards
● International power quality measurement standard IEC 61000-4-30 Edition 2 Class A
● High precision with a basic voltage measurement accuracy of 0.1%
PW3198

Advertisement

loading
Need help?

Need help?

Do you have a question about the PW3198 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hioki PW3198

Summary of Contents for Hioki PW3198

  • Page 1 PW3198 POWER QUALITY ANALYZER Power Measuring Instruments Record and Analyze Power Supply Problems Simultaneously with a Single Unit Record and Analyze Power Supply Problems Simultaneously with a Single Unit The New World Standard for Power Quality Analysis Never Miss the Moment ●...

  • Page 2: Troubleshooting

    The quickest way to approach these problems is to understand the situation quickly and accurately. The PW3198 Power Quality Analyzer is ready to effectively solve your power supply problems. Troubleshooting ✔...
  • Page 3 GPS box. Class Class Easy to set up - Just select the measurement course and the PW3198 will do the rest Simply choose the course based on the measurement objective and the necessary confi gurations will be set automatically.
  • Page 4 If your PC is not equipped with an SD card slot, sim- another line using Channel 4. ply connect a USB cable between the PW3198 and the PC. The PC will then recognize the SD card as removable media.
  • Page 5 Method Setup is ver y easy. Just install the PW3198 on the site, Select the “U Events” course in the PW3198 in the same way as and measure the voltage, current, and power. To troubleshoot, with the office equipment example.
  • Page 6 PW3198 Specifications (Accuracy guaranteed for one year) PRESETS function U Events Measurement items Record and monitor voltage elements and frequency, plus detect events Voltage RMS voltage Waveform voltage peak Standard Power Quality measurement items Frequency Frequency (1 cycle, 10-sec) Record and monitor voltage and current elements, frequency,...
  • Page 7 Measurement Specifications Frequency TIME PLOT EVENT (For specifications when measuring 400Hz circuits, please inquire with your HIOKI distributor.) Measurement Calculated as the reciprocal of the accumulated whole-cycle time during TIME PLOT The MAX/MIN/AVG of each recording interval for each parameter are recorded.
  • Page 8 Clamp-on leak sensor CLAMP ON LEAK SENSOR 9657-10 CLAMP ON LEAK SENSOR 9675 <1% of harmonic input nominal voltage: ±0.05% of nominal voltage Primary current rating 10A AC (Up to 5A on Model PW3198) Inter-harmonic current: Unspecified Output voltage 100 mV/A AC...
  • Page 9 CONNECTION CORD 9219 9657-10 9675 100A AC, φ15mm(0.59”), 1000A AC, φ55mm(2.17”), For connecting 9695-02,9695-03 10A AC (Up to 5A on Model PW3198), 10A AC(Up to 5A on Model PW3198), φ40mm(1.57"), φ30mm(1.18"), Cord length : 3m(9.84ft) 80(3.15")×20(0.79")mm busbar, Cord length : 3m(9.84ft) Cord length : 3m(9.84ft)
