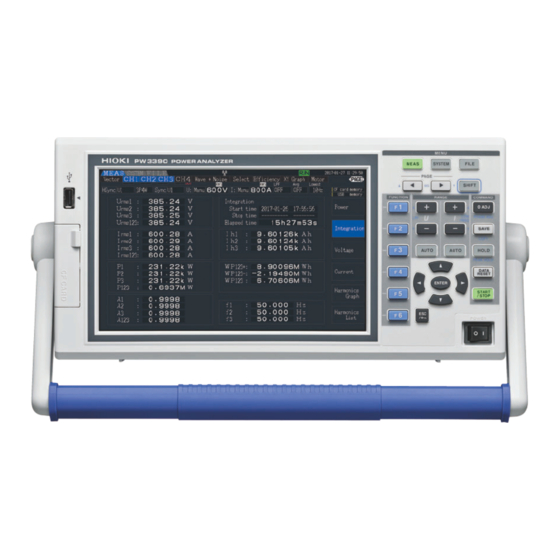

Hioki PW3390 Instruction Manual

Power analyzer
Hide thumbs Also See for PW3390:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
This instruction manual handles only parts related to commands.
For communication settings, please refer to the instruction manual for the main unit
Care has been taken to ensure the accuracy of the contents in this instruction
manual, however, please approach HIOKI's Sales Planning Division or your
nearest HIOKI dealer should you have any queries or found any mistakes.
Improvements may be made to this instruction manual without prior notice.
Unauthorized reproduction or copying of this instruction manual is prohibited.
May.2018 Revised edition 1
PW3390A975-01 18-05H

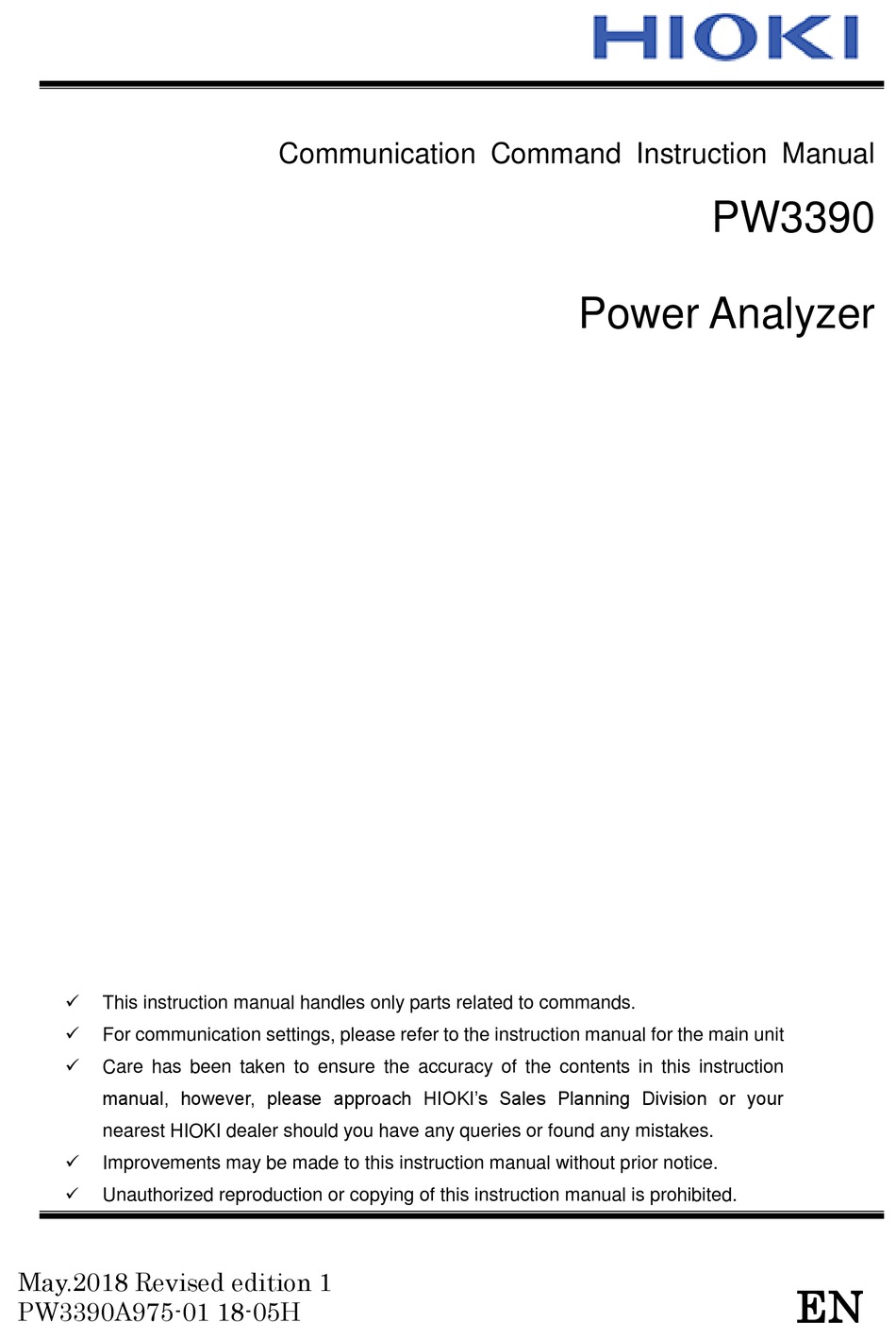

Communication Command Instruction Manual
PW3390
Power Analyzer
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PW3390 and is the answer not in the manual?

Questions and answers

Related Manuals for Hioki PW3390

Summary of Contents for Hioki PW3390

  • Page 1 Care has been taken to ensure the accuracy of the contents in this instruction manual, however, please approach HIOKI’s Sales Planning Division or your nearest HIOKI dealer should you have any queries or found any mistakes.  Improvements may be made to this instruction manual without prior notice.

  • Page 2: Table Of Contents

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Communication Command Overview ..................6 Commands/Messages ..........................6 Command Syntax ..........................7 Command Program Header ........................7 Query Program Header ......................... 8 Response Message ..........................8 Terminator and Separator ........................9 Multiple-Command Header Omission ....................
  • Page 3 PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Phase Correction Angle for Current Sensors ............27 Set and Query Phase Correction Frequency for Current Sensors ........... 27 Select and Query Current Rectifier Type ..................28 Set and Query Current Range ......................29 Set and Query Current Sensor for CT9920 ..................
  • Page 4 PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Motor Analysis Function Motor Pole Value ............. 54 Set and Query Pulse Values of Motor Analysis Function Channel B ..........55 Set and Query Motor Analysis Function Channel B Scaling ............55 Select and Query Motor Analysis Function Channel B Units ............
  • Page 5 PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Normal Measurement Value Communication Output Items of Respective Channels .............................. 78 Set and Query SUM’s Normal Measurement Value Communication Output Items ..... 79 Set and Query Voltage Data Communication Output Items ............80 Set and Query Current Data Communication Output Items ............

  • Page 6: Communication Command Overview

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition 1. Communication Command Overview The PW3390 Power Analyzer can communicate with PC via LAN(TCP/IP) or RS-232C, so that users can control the functions, and acquire measurement data and recorded data through text commands and queries.

  • Page 7: Command Syntax

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Command Syntax Commands are accepted in uppercase, lowercase or a mixture of both types of letters. Command names are chosen to mnemonically represent their function, and can be abbreviated. The full command name is called the "long form", and the abbreviated name is called the "short form".

  • Page 8: Query Program Header

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Query Program Header These commands are used to interrogate the instrument about the results of operations and settings. A query is formed by appending a question mark "?" after a program header...

  • Page 9: Terminator And Separator

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Terminator and Separator (1) Message Terminator The message terminator means the division of one message forwarding. However, there is no message in the terminator. ANSI Word Main instrument/Communication code Meaning English Name...

  • Page 10: Multiple-Command Header Omission

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Multiple-Command Header Omission When several commands having a common header are combined to form a compound command if they are written together in sequence, the common portion can be omitted. This common portion is called the "current path", and until it is cleared, the interpretation of subsequent commands presumes...

  • Page 11: Command Reference (Standard Command)

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition 2. Command Reference (Standard Command) Clear Standard Event Status Register (SESR) (except Output Queue) Syntax Command *CLS Example Clear Event Register. (SESR) ・No effect on Output Cue. Note Read Standard Event Status Register (SESR)

  • Page 12: Query Device Id (Recognition Code)

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Query Device ID (Recognition Code) Syntax Query *IDN? Example Query Instrument ID. “Maker’s name”, “Model name”, “Serial number”, “Software version” Response Description Response HIOKI,PW3390-03,081225345,V1.00 InstrumentID is HIOKI,PW3390-03,081225345, and software version is 1.00.

  • Page 13: Query Instrument Options

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Query Instrument Options Syntax Query *OPT? Description Queries the types of options available in the instrument. Response CH1 sensor, CH2 sensor, CH3 sensor, CH4 sensor Example ACDC500, ACDC500, ACDC500, ACDC500 Note "*OPT?"...

  • Page 14: Execute Next Command After Command Has Finished Processing

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Execute Next Command after Command Has Finished Processing Syntax Command *WAI Description Commands after *WAI will not be executed until the next update has finished. The time required for updating is usually 50 ms.

  • Page 15: Command Reference (Device-Specific Commands)

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition 3. Command Reference (Device-Specific Commands) Set and Query Frequency Full Scale Syntax Command :AOUT:FREQuency (Frequency Data) Query :AOUT:FREQuency? Response Frequency Data :100Hz/500Hz/1kHz/5kHz Sets the maximum frequency of D/A output’s Frequency Full Scale and the Description Command motor.

  • Page 16: Set And Query D/A Output Items

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query D/A Output Items :AOUT:ITEM “Item 1”, “Item 2”,..,”Item 16” Syntax Command Query :AOUT:ITEM? “Item 1”, “Item 2”, “Item 3”,..,”Item 15”, “Item 16” Response “Item 1 – 16” = Basic measured item parameters (Refer to 4.

  • Page 17: Setting And Querying Full-Scale D/A Output Waveform

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Setting and Querying Full-scale D/A Output Waveform Syntax Command :AOUT:MONitor:SCALe <1/2> Query :AOUT:MONitor:SCALe? : ±1V f.s. Response : ±2V f.s. Description Command Sets full-scale of D/A waveform output. Query Returns setting for full-scale of D/A waveform output as a numeric value.

  • Page 18: Set And Query Average

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Average Syntax Command :AVEraging:MODE <OFF/FAST/MID/SLOW/SLOW2/SLOW3> Query :AVEraging:MODE? Response <OFF/FAST/MID/SLOW/SLOW2/SLOW3> Explanation Command Sets the average. Query Returns the average setting as words. Example Command :AVE:MODE FAST Set the average to FAST.

  • Page 19: Select And Query Beep Sound

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Select and Query Beep Sound Syntax Command :BEEPer <ON/OFF> Query :BEEPer? Response <ON/OFF> Description Command Set the beep sound ON/OFF. Query Returns the On/OFF beep sound setting as ON or OFF.

  • Page 20: Set And Query Efficiency, Pout Of Loss Calculation Formula

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Efficiency, Pout of Loss Calculation Formula Syntax Command :CALCulate[number]:POUT <P1/P2/P3/P4/P12/P34/P123/Pm> Query :CALCulate[number]:POUT? [number] ････ 1,2,3 “P1/P2/P3/P4/P12/P34/P123/Pm” Response Description Command Sets the items for Efficiency, Pout of Loss Calculation Formula.

  • Page 21: Query Existence Of Cf Card

    Acquires the file name under the folder specified from the CF card. Example Query :CARD:FILE? PW3390 Acquire and return the file name under the PW3390 folder from the CF card. Response :CARD:FILENAME H3390001.BMP,44862,M3390000.CSV,578 (when HEADER is ON) 3390001.BMP,44682,M3390000.CSV,578 (when HEADER is OFF) Note Up to 90 files displayed from the start of the screen can be acquired.

  • Page 22: Acquire Folder Name In Cf Card

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Acquire Folder Name in CF Card Syntax Query :CARD:FOLDername? “Folder name”, “Folder name”, “Folder name”… Response Folder names will continue for as long as there are folders. When there are no more folders, the words “NO_FOLDER” will be returned.

  • Page 23: Acquire File Data In Cf Card

    STX (02) to the start and ETX (03) to the end of the data to be forwarded, and forward data. Example Query :CARD:PICK? 02030100.CSV,1,1000,PW3390 Return the 1-100 byte data of the 02030100.CSV file under the PW3390 folder from the CF card. Response STX(02)HIOKI PW3390・・・・・ETX(03) Note Even when the header is set as ON, headers will not attach to Response data.

  • Page 24: Querying File Size In Cf Card

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Querying File Size in CF Card Syntax Query :CARD:SIZE? <Specified File Name>,<Specified Folder Name> Response <File size (Bytes)> Description Query Returns the size of the specified file. Example Query :CARD:SIZE? H3390000.BMP,PW3390...

  • Page 25: Set And Query Time

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Time :CLOCk “Year Data”, “Month Data”, “Day Data”, “Hour Data”, “Minute Syntax Command Data”, “Second Data” Query :CLOCk? “Year Data”, “Month Data”, “Day Data”, “Hour Data”, “Minute Data”, “Second Response Data”...

  • Page 26: Set And Query Current Auto Range

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Current Auto Range Syntax Command :CURRent[CH]:AUTO <ON/OFF> Query :CURRent[CH]:AUTO? [CH] ････ 1,2,3,4 Response ON: Measure current with auto range. OFF: Measure current with manual range. Description Command Set the current auto range ON/OFF.

  • Page 27: Set And Query Phase Correction Angle For Current Sensors

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Phase Correction Angle for Current Sensors Syntax Command :CURRent[CH]:DEGRee <Phase correction angle> Query :CURRent[CH]:DEGRee? [CH] ････ 1,2,3,4 Response Phase correction angle (°) -90.00 to +90.00 Description Command Sets phase correction angle for current sensors. [CH]: 1 to 4.

  • Page 28: Select And Query Current Rectifier Type

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Select and Query Current Rectifier Type Syntax Command :CURRent[CH]:MEAN <ON/OFF> Query :CURRent[CH]:MEAN? [CH] ････ 1,2,3,4 Response ON: Set the current rectifier type to MEAN. OFF: Set the current rectifier type to RMS.

  • Page 29: Set And Query Current Range

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Current Range Syntax Command :CURRent[CH]:RANGe <Current Range(NR2)> Query :CURRent[CH]:RANGe? [CH] ････ 1,2,3,4 Response 0.1/0.2/0.4/0.5/0.8/1/2/4/5/8/10/20/40/50/80/ 100/200/400/500/800/1000/2000/4000/8000/20000 Description Command Specifies the current range suitable for the sensor. (Unit is [A]) Query Queries the current range setting.

  • Page 30: Set And Query Current Sensor For Ct9920

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Current Sensor for CT9920 Syntax Command :CURRent[CH]:TYPE <Current sensor> Query :CURRent[CH]:TYPE? [CH] ････ 1,2,3,4 Response 100uV/A,1mV/A,10mV/A,100mV/A, CT7642,CT7742,CT7044,CT7045,CT7046 Description Command Specifies current sensor for CT9920. Query Queries the current sensor setting. Returns the current sensor as a character string.

  • Page 31: Set And Query Efficiency, Saved Items Of Loss Calculation Value

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Efficiency, Saved Items of Loss Calculation Value Syntax Command :DATAout:ITEM:EFFiciency <0 to 255> Query :DATAout:ITEM:EFFiciency? Response bit 7 bit 6 bit 5 bit 4 bit 3 bit 2...

  • Page 32: Initialize Harmonic Saved Data Items

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Initialize Harmonic Saved Data Items Syntax Command :DATAout:ITEM:HARMonic:ALLClear Description Command Initializes harmonic saved data items. All harmonic saved data items become OFF (factory defaults). Example Command :DATA:ITEM:HARM:ALLC Initialize harmonic saved data items.

  • Page 33: Select And Query Harmonic List Saved Items

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Select and Query Harmonic List Saved Items Syntax Command :DATAout:ITEM:HARMonic:LIST <Level UI>,<Level P>, <Content UI>,<ContentP>,<Phase Angle UI>,<Phase Angle P> Query :DATAout:ITEM:HARMonic:LIST? Response <Level UI>,<LevelP>,<Content UI>,<Content P>,<Phase Angle UI>, <Phase Angle P>...

  • Page 34: Set And Query Output Order Of Harmonic Data Saving

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Output Order of Harmonic Data Saving Syntax Command :DATAout:ITEM:HARMonic:ORDer <Lower limit order>, <Upper limit order>,<ODD/EVEN/ALL> Query :DATAout:ITEM:HARMonic:ORDer? Response Lower limit order (NR1) :0 - 100 Upper limit order (NR1)

  • Page 35: Set And Query Saved Items Of Integration Values

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Saved Items of Integration Values Syntax Command :DATAout:ITEM:INTEGrate <PIH>,<MIH>,<IH>,<PWP>,<MWP>,<WP>, <PWP_SUM>,<MWP_SUM>,<WP_SUM>,<Elapsed time> Query :DATAout:ITEM:INTEGrate? Response <PIH>,<MIH>,<IH>,<PWP)>,<MWP>,<WP>,<PWP_SUM>,<MWP_SUM>,<WP_SUM>, <Elapsed time> bit 7 bit 6 bit 5 bit 4 bit 3 bit 2...

  • Page 36: Set And Query Noise Peak Value Saving

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Noise Peak Value Saving Syntax Command :DATAout:ITEM:NOISepeak <ON/OFF> Query :DATAout:ITEM:NOISepeak? ：Output noise peak value Response ：Do not output noise peak value Description Command Sets noise peak value saving.

  • Page 37: Set And Query Saved Items Of Normal Measurement Values In Respective Channels

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Saved Items of Normal Measurement Values in Respective Channels Syntax Command :DATAout:ITEM:NORMal <U Data>,<I Data>,<P Data>,<S Data>, <Q Data>,<PF Data>,<DEG Data>,<FREQ Data> Query :DATAout:ITEM:NORMal? Response <U Data>,<I Data>,<P Data>,<S Data>,<Q Data>, <PF Data>,<DEG Data>,<FREQ Data>...

  • Page 38: Set And Query Saved Items Of Sum's Normal Measurement Values

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Saved Items of SUM’s Normal Measurement Values Syntax Command :DATAout:ITEM:SUM <U Data>,<I Data>,<P Data>,<S Data>, <Q Data>,<PF Data>,<DEG Data> Query : DATAout:ITEM:SUM? Response <U Data>, <I Data>,<P Data>,<S Data>,<Q Data>,<PF Data>,<DEG Data>...

  • Page 39: Set And Query Saved Items Of Voltage Data

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Saved Items of Voltage Data Syntax Command :DATAout:ITEM:U <CH 1>,< CH 2>,< CH 3>,< CH 4>, <SUM12>,<SUM34>,<SUM123> Query :DATAout:ITEM:U? Response <CH 1>,< CH 2>,< CH 3>,< CH 4>,<SUM12>,<SUM34>,<SUM123>...

  • Page 40: Set And Query Saved Items Of Current Data

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Saved Items of Current Data Syntax Command :DATAout:ITEM:I <CH 1>,< CH 2>,< CH 3>,< CH 4>, <SUM12>,<SUM34>,<SUM123> Query :DATAout:ITEM:I? Response <CH 1>,< CH 2>,< CH 3>,< CH 4>,<SUM12>,<SUM34>,<SUM123>...

  • Page 41: Select And Query On/Off Of Δ-Y Calculation

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Δ-Y Select and Query ON/OFF of Calculation Syntax Command :DELTay <ON/OFF> Query :DELTay? : Process Δ-Ycalculation. Response : Do not process Δ-Y calculation. Sets Δ-Y calculation ON/OFF. Description Command Returns ON/OFF setting for Δ-Y calculation with ON or OFF.

  • Page 42: Execute And Query Zero Adjust

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Execute and Query Zero Adjust Syntax Command :DEMAg Query DEMAg? Response <OK/BUSY/ERROR> :Normal completion BUSY :Degaussing ERROR :Zero adjust failed Description Command Executes zero adjust. Query Returns result of zero adjust as character string.

  • Page 43: Key Operations Of The Instrument

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Key Operations of The Instrument Syntax Command :DISPlay:KEY <Key name> Description Command Execute same operation as the key operations from the main instrument. <Key name> MEAS : MEAS key : ESC key...

  • Page 44: Setting And Querying Display Items Of Select Screens

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Setting and Querying Display Items of Select Screens Syntax Command :DISPlay:SELect[number] <Item name>,...,<Item name> Query :DISPlay:SELect[number]? Response <Item name>,...,<Item name> Item name:Basic measured item parameters (Refer to 4. Fundamental Measurement Item...

  • Page 45: Select And Query Start Up Screen

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Select and Query Start Up Screen Syntax Command :DISPlay:SET:STARting <BACKUP/WIRING> Query :DISPlay:SET:STARting? Response BACKUP: Last shut down screen WIRING: Wiring confirmation screen Description Command Sets the start up screen. Query Returns the start up screen setting as character string.

  • Page 46: Select And Query Motor Analysis Function Channel A Input

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Select and Query Motor Analysis Function Channel A Input Syntax Command :EXTernalinA:FREQuency <ON/OFF> Query :EXTernalinA:FREQuency? Response : Frequency input : Input Analog DC input Description Command Sets the motor analysis function of Channel A input.

  • Page 47: Set And Query Motor Analysis Function Channel A Input Frequency Range

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Motor Analysis Function Channel A Input Frequency Range Syntax Command :EXTernalinA:FREQuency:RANGe <fc>,<fd> Query :EXTernalinA:FREQuency:RANGe? Response :3000 to 98000 (3kHz to 98kHz) :1000 to 48000 (1kHz to 48kHz) Description Command Sets the fc and fd of the Channel A input frequency.

  • Page 48: Set And Query Motor Analysis Function Channel A Rating Torque

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Motor Analysis Function Channel A Rating Torque Syntax Command :EXTernalinA:FREQuency:TORQue <Rating Torque> Query :EXTernalinA:FREQuency:TORQue? Response Rating Torque :001 to 999 Description Command Sets the rating torque value of Channel A.

  • Page 49: Execute And Clear Motor Analysis Function's Phase Zero Adjust

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Execute and Clear Motor Analysis Function’s Phase Zero Adjust Syntax Command :EXTernalinA:PHASe:ZEROadjust <SET/CLEAR> : Phase zero adjust execution CLEAR : Phase zero adjust value clear Description Command Executes the phase zero adjust of the motor analysis function, or clear the phase zero adjust value.

  • Page 50: Set And Query Motor Analysis Function Channel A Scaling

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Motor Analysis Function Channel A Scaling Syntax Command :EXTernalinA:SCALe <Scaling value> Query :EXTernalinA:SCALe? Response Scaling Value :0000.01 to 9999.99 Description Command Sets the scaling value for Channel A.

  • Page 51: Set And Query Motor Analysis Function's Motor Synchronized Sources

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Motor Analysis Function’s Motor Synchronized Sources Syntax Command :EXTernalinA:SOURce < Synchronized Sources > Query :EXTernalinA:SOURce? Response < Synchronized Sources > :U1/U2/U3/U4/I1/I2/I3/I4/Ext/DC50ms/DC100ms Description Command Sets the motor synchronized sources.

  • Page 52: Execute Zero Adjust Of Motor Analysis Function

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Execute Zero Adjust of Motor Analysis Function Syntax Command :EXTernalinA:ZEROadjust Description Command Executes the zero adjust for motor analysis function. Example Command :EXTA:ZERO Execute zero adjust. Set and Query Motor Analysis Function Channel B Range...

  • Page 53: Set And Query Pulse On/Off Of Motor Analysis Function Channel B Input

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Pulse ON/OFF of Motor Analysis Function Channel B Input Syntax Command :EXTernalinB:PULSe <ON/OFF> Query :EXTernalinB:PULSe? Response : Pulse input : Analog DC input Description Command Sets the pulse/analog DC of Channel B input.

  • Page 54: Set And Query Motor Analysis Function Channel B Measured Maximum Frequency

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Motor Analysis Function Channel B Measured Maximum Frequency Syntax Command :EXTernalinB:PULSe:FREQuency <100Hz/500Hz/1kHz/5kHz> Query :EXTernalinB:PULSe:FREQuency? Response <100Hz/500Hz/1kHz/5kHz> :Set frequency Description Command Sets the maximum frequency for Channel B during pulse input.

  • Page 55: Set And Query Pulse Values Of Motor Analysis Function Channel B

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Pulse Values of Motor Analysis Function Channel B Syntax Command :EXTernalinB:PULSe:NUMBer <Pulse> Query :EXTernalinB:PULSe:NUMBer? Response Pulse :00001 to 60000 Description Command Sets the pulse for Channel B. Query Returns the pulse setting for Channel B as a numerical value.

  • Page 56: Select And Query Motor Analysis Function Channel B Units

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Select and Query Motor Analysis Function Channel B Units Syntax Command :EXTernalinB:UNIT <Unit data> Query :EXTernalinB:UNIT? Response <Unit data> : V/Hz/rpm Description Command Sets the unit for Channel B. Query Returns the unit setting for Channel B as a character string.

  • Page 57: Set And Query Noise Lower Limit Frequency

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Noise Lower Limit Frequency Syntax Command :FFT:LOWerfreq <frequency data> Query :FFT:LOWerfreq? <frequency data> ： Response <OFF/1kHz/2kHz/3kHz/4kHz/5kHz/6kHz/7kHz/8kHz/9kHz/10kHz> Description Command Sets noise lower limit frequency. Query Returns the noise lower limit frequency setting as a character string data.

  • Page 58: Select And Query Noise Analysis Sampling Speed

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Select and Query Noise Analysis Sampling Speed Syntax Command :FFT:SAMPling <Sampling> Query :FFT : SAMPling? ：<10kS/25kS/50kS/100kS/250kS/500kS> Response <Sampling> Description Command Sets the noise analysis sampling speed. Query Returns the noise analysis sampling speed as a character string.

  • Page 59: Set And Query Zero Cross Filter

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Zero Cross Filter Syntax Command :FILTer <STRONG/WEAK/OFF> Query :FILTer? Response STRONG:Filter strong WEAK :Filter weak :Filter OFF Description Command Sets the zero cross filter. Query Returns the zero cross filter setting as a character string.

  • Page 60: Select And Query Frequency Measurement Source

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Select and Query Frequency Measurement Source Syntax Command :FREQuency:SOURce[CH] <U/I> Query :FREQuency:SOIURce[CH]? [CH] ････ 1,2,3,4 Response : frequency source is voltage : frequency source is current Sets the specified channel’s frequency measurement source.

  • Page 61: Set And Query Thd Calculation Formula

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query THD Calculation Formula Syntax Command :HARMonic:THD <F/R> Query :HARMonic:THD? Response :THD-F(Fundamental wave standard) :THD-R(Harmonic total value standard) Description Command Sets the THD calculation formula. Query Returns the THD calculation formula as a character string.

  • Page 62: Set And Query Hold Status

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Hold Status Syntax Command :HOLD <OFF/ON/PEAK> Query :HOLD? Response :Hold OFF :Hold ON PEAK :Peak Hold ON Description Command Sets the hold status. Query Return the hold status as a character string.

  • Page 63: Set And Query Integration Mode

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Integration Mode Syntax Command :INTEGrate:MODE[CH] <DC/RMS> Query :INTEGrate:MODE[CH]? [CH] ････ 1,2,3,4 Response : Integration DC mode : Integration RMS mode Description Command Sets the integration mode. Query Returns the integration mode setting as DC or RMS.

  • Page 64: Execute Integration (Time) Start

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Execute Integration (Time) Start Syntax Command :INTEGrate:STARt Description Command Starts integration (time). Example Command :INTEG:STAR Start integration (time). Query Integration (Time) Syntax Query :INTEGrate:STATe? Response RESET : Integration reset status STOP...

  • Page 65: Set And Query Interval Time

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Interval Time Syntax Command :INTERval <Time data> Query :ITERval? Response OFF/50ms/100ms/200ms/500ms/1s/5s/10s/15s /30s/1min/5min/10min/15min/30min/60min Description Command Sets the interval time. Query Returns the interval time setting as a character string.

  • Page 66: Set And Query Default Gateway

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Default Gateway Syntax Command :IP:DEFaultgateway <Address 1>,<Address 2>,<Address 3>,<Address 4> Query :IP:DEFaultgateway? Response Address 1 :000 to 255 Address 2 :000 to 255 Address 3 :000 to 255...

  • Page 67: Set And Query Key Lock

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Key Lock Syntax Command :KEYLock <ON/OFF> Query :KEYLock? Response : Turn key lock on. : Turn key lock off. Description Command Sets the key lock ON/OFF. Query Returns the key lock setting as ON or OFF.

  • Page 68: Select And Query Low Pulse Filter (Lpf)

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Select and Query Low Pulse Filter (LPF) Syntax Command :LPF[CH] <OFF/500Hz/5kHz/100kHz> Query :LPF[CH]? [CH] ････ 1,2,3,4 Response <OFF/500Hz/5kHz/100kHz> Description Command Sets the cutoff frequency for the low pulse filter (LPF). Query Returns the setting for the cut off frequency for the low pulse filter as a character string.

  • Page 69: Query Measurement Data

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Query Measurement Data Syntax Query :MEASure? <Item 1>, <Item 2>, ..,<Item 63>,<Item 64> Response <Item 1>, <Item 2>, ..,<Item 63>,<Item 64> <Item 1 to 64> : Fundamental measurement item arbitrary within the parameter.

  • Page 70: Query Harmonic Measurement Data

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Query Harmonic Measurement Data Syntax Query :MEASure:HARMonic? Description Query Creates measurement data of item specified under a type of :MEASure:ITEM Command. The measurement data order is fixed. (Refer to the output item and order table) Statusdata is always attached to the beginning of the data.

  • Page 71: Query Noise Measurement Value Data

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Query Noise Measurement Value Data Syntax Query :MEASure:NOISepeak? Description Query Returns the voltage of the noise measurement value, the frequencies of the top 10 pole current values and numerical values. The measurement data order is fixed. (Refer to the output item and order...

  • Page 72: Query Current Noise Measurement Value Data

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Query Current Noise Measurement Value Data Syntax Query :MEASure:NOISepeak:I? Description Query Returns the frequencies of the top 10 pole current values and numerical values. The measurement data order is fixed. (Refer to the output item and order...

  • Page 73: Set And Query Efficiency, Loss Calculation Value Communication Output Items

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Efficiency, Loss Calculation Value Communication Output Items Syntax Command :MEASure:ITEM:EFFiciency <0 to 255> Query :MEASure:ITEM:EFFiciency? Response bit 7 bit 6 bit 5 bit 4 bit 3 bit 2...

  • Page 74: Set And Query Communication Output Items Of Motor Input

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Communication Output Items of Motor Input Syntax Command :MEASure:ITEM:EXTernalin <0 to 255> Query :MEASure:ITEM:EXTernalin? Response bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1...

  • Page 75: Select And Query Harmonic List Communication Output Items

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Select and Query Harmonic List Communication Output Items Syntax Command :MEASure:ITEM:HARMonic:LIST <LevelUI>,<LevelP>, <Content UI>,<Content P>,<Phase Angle UI>,<Phase Angle P> Query :MEASure:ITEM:HARMonic:LIST? Response <Level UI>,<Level P>,<Content UI>,<Content P>, <Phase Angle UI>,<Phase Angle P>...

  • Page 76: Set And Query Output Order Of Harmonic Data Communication Output

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Output Order of Harmonic Data Communication Output Syntax Command :MEASure:ITEM:HARMonic:ORDer <Lower limit order>, <Upper limit order>, <ODD/EVEN/ALL> Query :MEASure:ITEM:HARMonic:ORDer? Response Lower limit order (NR1) :0 to 100 Upper limit order (NR1)

  • Page 77: Set And Query Communication Output Items Of Integration Value

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Communication Output Items of Integration Value Syntax Command :MEASure:ITEM:INTEGrate <PIH>,<MIH>,<IH>,<PWP>,<MWP>,<WP>, <PWP_SUM>,<MWP_SUM>,<WP_SUM>,<Elapsed Time> Query :MEASure:ITEM:INTEGrate? Response <PIH>,<MIH>,<IH>,<PWP)>,<MWP>,<WP>, <PWP_SUM>,<MWP_SUM>,<WP_SUM>,<Elapsed Time> bit 7 bit 6 bit 5 bit 4 bit 3...

  • Page 78: Set And Query Normal Measurement Value Communication Output Items Of Respective Channels

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Normal Measurement Value Communication Output Items of Respective Channels Syntax Command :MEASure:ITEM:NORMal <Udata>,<Idata>,<Pdata>,<Sdata>, <Qdata>,<PFdata>,<DEGdata>,<FREQdata> Query :MEASure:ITEM:NORMal? Response <Udata>,<Idata>,<Pdata>,<Sdata>,<Qdata>, <PFdata>,<DEGdata>,<FREQdata> bit 7 bit 6 bit 5 bit 4 bit 3...

  • Page 79: Set And Query Sum's Normal Measurement Value Communication Output Items

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query SUM’s Normal Measurement Value Communication Output Items Syntax Command :MEASure:ITEM:SUM <Udata>,<Idata>,<Pdata>,<Sdata>, <Qdata>,<PFdata>,<DEGdata> Query :MEASure:ITEM:SUM? Response <Udata>,<Idata>,<Pdata>,<Sdata>,<Qdata>,<PFdata>,<DEGdata> bit 7 bit 6 bit 5 bit 4 bit 3 bit 2...

  • Page 80: Set And Query Voltage Data Communication Output Items

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Voltage Data Communication Output Items Syntax Command :MEASure:ITEM:U <CH 1>,< CH 2>,< CH 3>,< CH 4>, <SUM12>,<SUM34>,<SUM123> Query :MEASure:ITEM:U? Response <CH 1>,< CH 2>,< CH 3>,< CH 4>,<SUM12>,<SUM34>,<SUM123>...

  • Page 81: Set And Query Current Data Communication Output Items

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Current Data Communication Output Items Syntax Command :MEASure:ITEM:I <CH 1>,< CH 2>,< CH 3>,< CH 4>, <SUM12>,<SUM34>,<SUM123> Query :MEASure:ITEM:I? Response <CH 1>,< CH 2>,< CH 3>,< CH 4>,<SUM12>,<SUM34>,<SUM123>...

  • Page 82: Query Existence Of Usb Memory

    Description Query Acquires the file name under the folder specified from the USB memory. Example Query :MEM:FILE? PW3390 Acquire and return the file name under the PW3390 folder from the USB memory. Response :MEMORY:FILENAME H3390001.BMP,44862,M3390000.CSV,578 (WHEN HEADER IS ON) H3390001.BMP,44682,M3390000.CSV,578 (WHEN HEADER IS OFF) Note Up to 90 files displayed from the start of the screen can be acquired.

  • Page 83: Acquire Folder Name In Usb Memory

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Acquire Folder Name in USB Memory Syntax Query :MEMory:FOLDername? Response <Folder name>,<Folder name>,<Folder name>,,,,, Folder names will continue for as long as there are folders. When there are no more folders, the words “NO_FOLDER” will be returned.

  • Page 84: Querying File Size In Usb Memory

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Querying File Size in USB Memory Syntax Query :MEMory:SIZE? <Specified File Name>,<Specified Folder Name> Response <File size (Bytes)> Description Query Returns the size of the specified file. Example Query :MEM:SIZE? H3390000.BMP,PW3390...

  • Page 85: Select And Query Wiring Mode

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Select and Query Wiring Mode Syntax Command :MODE <TYPE1/TYPE2/TYPE3/TYPE4/TYPE5/TYPE6/TYPE7/TYPE8> Query :MODE? Response TYPE1: 1P2W, 1P2W, 1P2W, 1P2W TYPE2: 1P3W, 1P2W, 1P2W TYPE3: 3P3W, 1P2W, 1P2W TYPE4: 1P3W, 1P3W TYPE5: 3P3W2M, 1P3W...

  • Page 86: Setting And Querying Formula For Three-Phase Power

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Setting and Querying Formula for Three-phase Power Syntax Command :OPERation <TYPE1/TYPE2> Query :OPERation? Response TYPE1: 3P3W3M standard calculation method TYPE2: Calculation method to improve the mutual compatibility with 3V3A wiring of other power meter Description Command Sets formulas of three-phase power.

  • Page 87: Select And Query Rs232C Communication Speed

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Select and Query RS232C Communication Speed Syntax Command :RS232c:BAUD <9600bps/19200bps/38400bps> Query :RS232c:BAUD? Response <9600bps/19200bps/38400bps> Description Command Sets the RS232C communication speed. Query Returns the setting for the RS232C communication speed as a character string.

  • Page 88: Set And Query Manual Saving Folder Name

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Manual Saving Folder Name Syntax Command :SAVE:FOLDername <Folder name> Query :SAVE:FOLDername? Response The folder name is a character string of up to 8 characters. Characters that can be used are ASCII characters H’20 – H’7E (except for "...

  • Page 89: Setting And Querying Delimiter For Csv File

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Setting and Querying Delimiter for CSV File Syntax Command :SAVE:SEParator <CSV/SSV> Query :SAVE:SEParator? CSV: Comma-delimited “,”, period-decimal”.” Response SSV: Semicolon-delimited”;”, comma-decimal”,” Description Command Sets a type of delimiter for CSV file.

  • Page 90: Set And Query Vt Ratio

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query VT Ratio Syntax Command :SCALe[CH]:VT <VT Ratio> Query :SCALe[CH]:VT? [CH] ････ 1,2,3,4 Response VT Ratio :0000.01 to 9999.99 Description Command Sets the VT ratio of the specified channel.

  • Page 91: Select And Query Actual Time On/Off

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Select and Query Actual Time ON/OFF Syntax Command :STIMe:CONTrol <ON/OFF> Query :STIMe:CONTrol? Response : Actual Time ON : Actual Time OFF Description Command Sets the actual time ON/OFF. Query Returns the setting for actual time as ON or OFF.

  • Page 92: Set And Query Actual Time Start Time

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Actual Time Start Time Syntax Command :STIMe:STARttime <Year>,<Month>,<Date>,<Hour>,<Minute> Query :STIMe:STARttime? Response Year data:2000 to 2079 (can be set 00 - 79) Month data:01 to 12 Date data:01 to 31...

  • Page 93: Set And Query Actual Time Stop Time

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Actual Time Stop Time Syntax Command :STIMe:STOPtime <Year>,<Month>,<Date>,<Hour>,<Minute> Query :STIMe:STOPtime? Response Year data:2000 to 2079 (can be set 00 - 79) Month data:01 to 12 Date data:01 to 31...

  • Page 94: Select And Query Master/Slave Of Synchronized Control Master

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Select and Query Master/Slave of Synchronized Control Master Syntax Command :SYNC:CONTrol <MASTER/SLAVE> Query :SYNC:CONTrol? Response MASTER : Master SLAVE : Slave Description Command Sets the master and slave of synchronized control.

  • Page 95: Set And Query Timer Control On/Off

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Timer Control ON/OFF Syntax Command :TIMEr:CONTrol <ON/OFF> Query :TIMEr:CONTrol? Response : Timer ON : Timer OFF Description Command Sets the timer ON/OFF. Query Returns the setting for the timer as ON or OFF.

  • Page 96: Set And Query Numerical Data Format

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Numerical Data Format Syntax Command :TRANsmit:COLumn <0/1> Query :TRANsmit:COLumn? Response 0 : Omit the + at the beginning of the fraction of the response measurement value data and the preceding 0...

  • Page 97: Set And Query Response Message Unit Separator

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Response Message Unit Separator Syntax Command :TRANsmit:SEParator <0/1> Query :TRANsmit:SEParator? 0: Semicolon ‘;’ Response 1 : Colon ‘,’ Description Command Sets the message unit separator when the header is OFF.

  • Page 98: Set And Query Voltage Auto Range

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Voltage Auto Range Syntax Command :VOLTage [CH]:AUTO <ON/OFF> Query :VOLTage [CH]:AUTO? [CH] ････ 1,2,3,4 Response : Measures voltage by auto range. : Measures voltage by manual range. Description Command Sets the voltage auto range ON/OFF.

  • Page 99: Select And Query Voltage Rectifier Type

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Select and Query Voltage Rectifier Type Syntax Command :VOLTage [CH]:MEAN <ON/OFF> Query :VOLTage [CH]:MEAN? [CH] ････ 1,2,3,4 Response : Sets the voltage rectifier type to MEAN. : Sets the voltage rectifier type to RMS.

  • Page 100: Set And Query Voltage Range

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Voltage Range Syntax Command :VOLTage[CH]:RANGe <Voltage range> Query :VOLTage[CH]:RANGe? [CH] ････ 1,2,3,4 Response <Voltage range> : 15/30/60/150/300/600/1500 Description Command Specifies the voltage range. (Unit is [V]) Query Queries the voltage range. Returns the voltage range as a numerical value.

  • Page 101: Set And Query Zero Suppress

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Set and Query Zero Suppress Syntax Command :ZEROsp <OFF/0.1%/0.5%> Query :ZEROsp? Response <OFF/0.1%/0.5%> Description Command Sets zero suppress. Query Returns setting for zero suppress as a character string. Example Command :ZERO 0.1% Set the zero suppress level o 0.1% f.s.

  • Page 102: Fundamental Measurement Item Parameters

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Fundamental Measurement Item Parameters Contents Parameter List Voltage RMS Urms1/Urms2/Urms3/Urms4/Urms12/Urms34/Urms123 Rectified Voltage Average Umn1/Umn2/Umn3/Umn4/Umn12/Umn34/Umn123 Voltage Component, Uac1/Uac2/Uac3/Uac4/HU1P/HU2P/HU3P/HU4P Fundamental Wave Phase Angle Voltage Simple Average, Udc1/Udc2/Udc3/Udc4/Ufnd1/Ufnd2/Ufnd3/Ufnd4 Fundamental Wave Component Voltage ± Peak...
  • Page 103 PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Output Items of :MEASure? and the order Output Item Output Item and the order Status Status Elapsed time Laptime Elapsed time in ms Laptime(ms) Urms1 to Urms4 Urms12 Urms34 Urms123 Voltage...
  • Page 104 PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Output Items of :MEASure:HARMonic? and the order Harmonic Measurement Items Status Status Harmonic Frequency HFREQ Level HU1Ln Content HU1Dn Phase angle HU1Pn … nth order voltage Level HU4Ln Content HU4Dn Phase angle...
  • Page 105 PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Output Items of :MEASure:NOISepeak? and the order Noise Measurement Items Voltage UNf01 UN01 UNf10 UN10 Noise Current INf01 IN01 INf10 IN10 105/107...
  • Page 106 PW3390 Power Analyzer Communication Command Instruction Manual Second Edition About Status data The status information shows the measurement status when the measurement data is being saved, and is shown as a hexadecimal of 32bit. Contents of the individual bits in the 32bit are shown below.

  • Page 107: Troubleshooting

    PW3390 Power Analyzer Communication Command Instruction Manual Second Edition Troubleshooting Please refer to the following contents for any operation that is not processed properly. Symptoms Causes Solutions When using a HUB to connect the main instrument and the computer, use a straight cable.

Table of Contents
