Delta Conversion Function
Y– Δ conversion
This function can be enabled in 3P4W wiring mode.
This can measure line voltages when phase voltages are inputted from a Y-connected circuit.
The voltage waveforms, various measured voltage values, and harmonic voltages are all inputted
as phase voltages; however, they are calculated as line voltages.

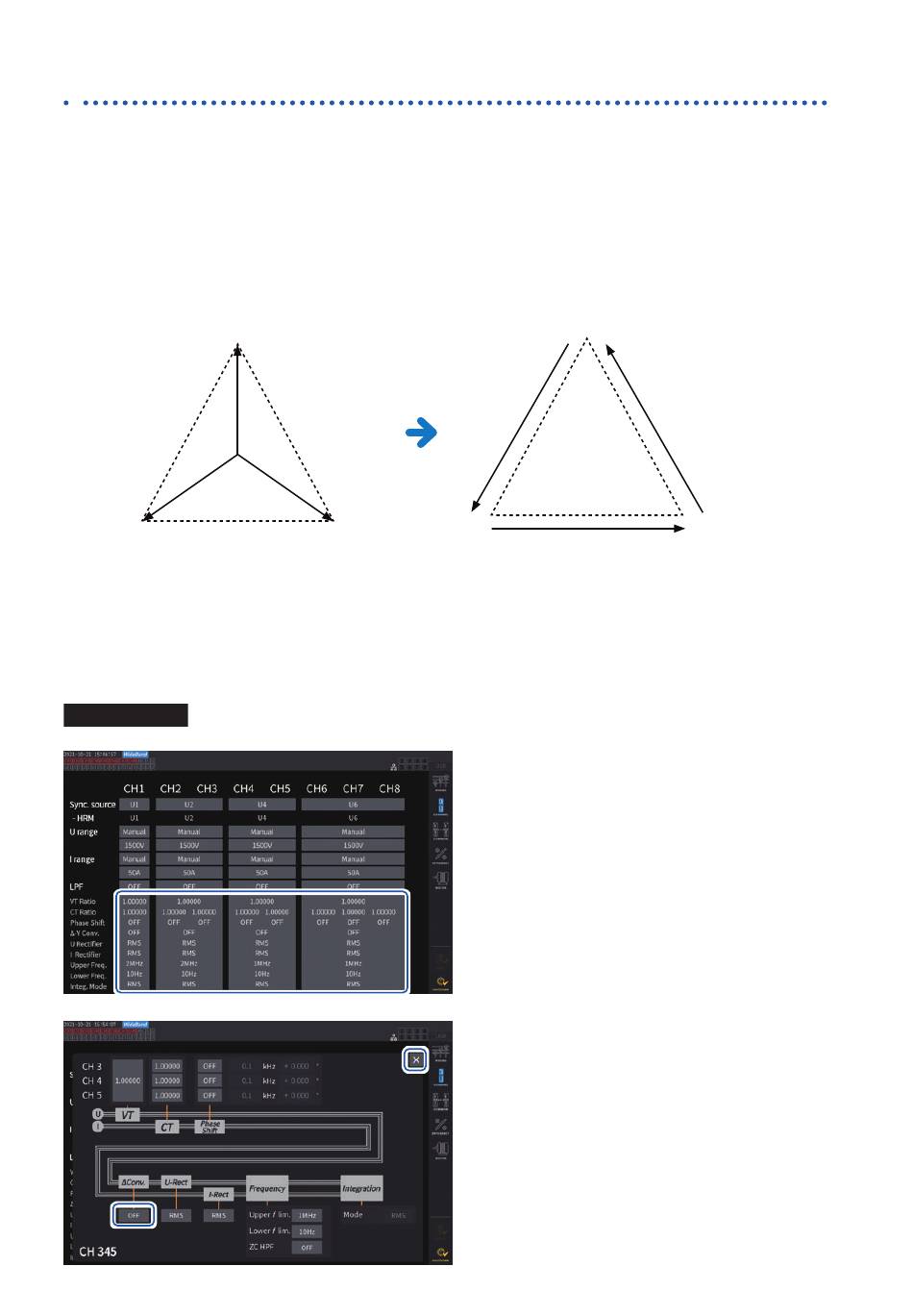

Conceptual diagram of Y–Δ conversion
In 3P4W wiring mode
A
U3
C
• The vector diagram shown on the wiring screen is the same as the 3P3W3M vector diagram.
• Peak-over judgment and the voltage peak value display range are determined using not-
converted values.
• When the voltage range is set to auto-ranging, voltage range switching is determined using
converted measured values.
Display screen [INPUT]
1 1
2 2
112
U1
U2
B
> [CHANNEL]
3 3
HIOKI PW8001A961-00
A
U3
C
U2
1
Tap the channel detail display area for
the channel you wish to configure to
open the settings window.
2
Tap the [ Δ Conv.] box to set Y–Δ
conversion to [ON].
3
×
Tap [ ] to close the setting window.
U1
B
