The vibrator is driven by an exclusive circuit, and a reference circuit design is shown below.

3.18. LCM Interfaces

Based on MIPI DSI standard, the video output interfaces (LCM interfaces) of SA800U-WF support
2560 × 1600 @ 60 fps VESA DSC 1.1 primary display with 4 lanes. Additionally, with a MIPI to HDMI
converter (LT9611 is recommended), its 8 lanes can support QUXGA display (resolution: 3840 × 2160).
The module supports dual-LCD independent display: default - DSI + DP (over USB Type-C), optional -
DSI0 + DSI1. Please note that DSI1 does not support screens with command mode.
Table 21: Pin Definition of LCM Interfaces
Pin Name
LDO14A_1V88
LCD_RST
LCD_TE
DSI0_CLK_N
DSI0_CLK_P
DSI0_LN0_N
DSI0_LN0_P
DSI0_LN1_N
SA800U-WF_Hardware_Design
HAP_P
C1
33 pF
HAP_M
Module

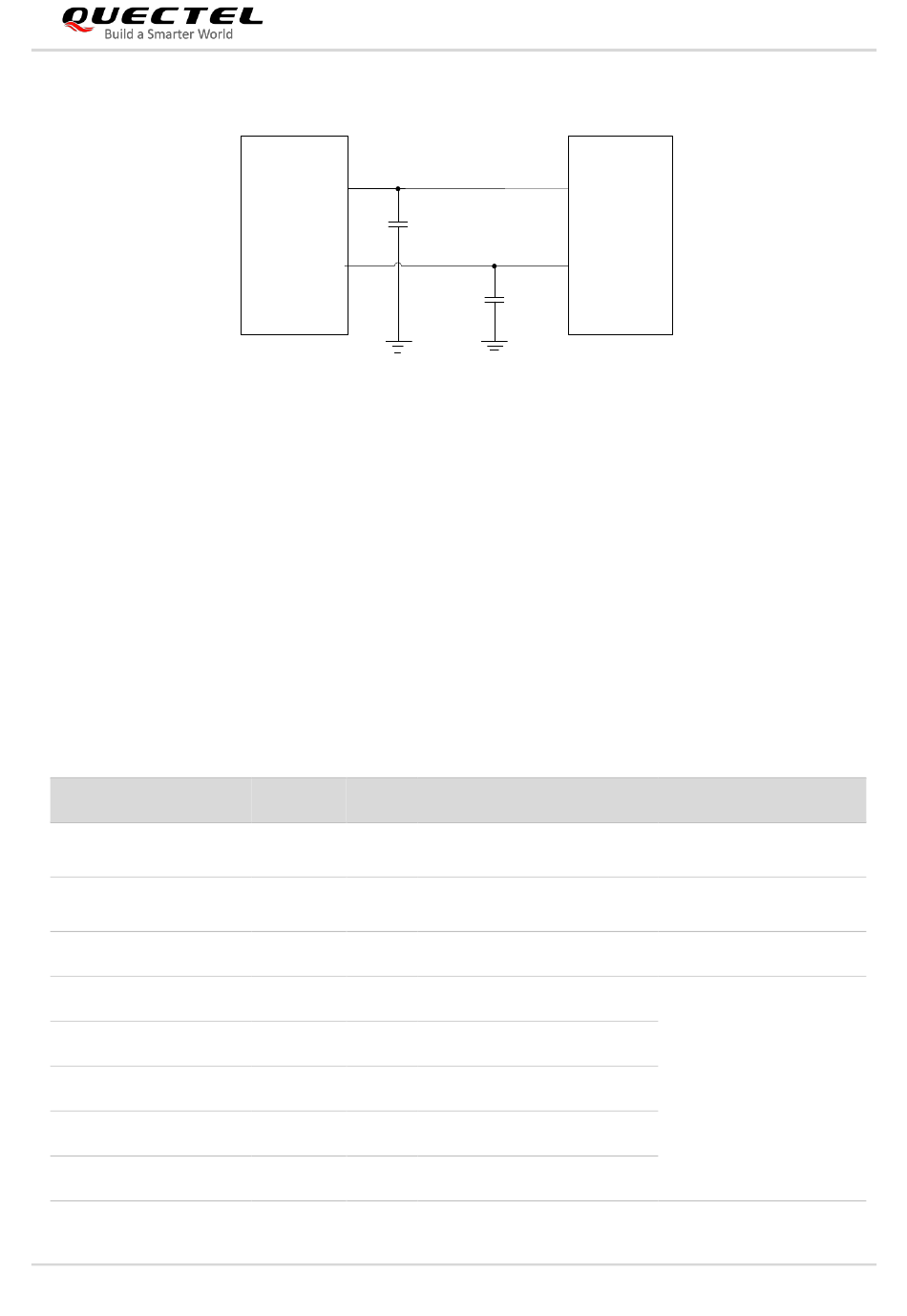

Figure 21: Reference Circuit for Vibrator Connection
Pin No. I/O
J4-9 PO
J2-62 DO
J2-60 DI
J2-26 AO
J2-28 AO
J2-38 AO
J2-40 AO
J2-32 AO
VIB+
VIB-
C2
33 pF Motor
Description
1.8 V output for IOVDD of
LCDs
LCD reset
LCD tearing effect
LCD0 MIPI clock (-)
LCD0 MIPI clock (+)
LCD0 MIPI lane 0 data (-)
LCD0 MIPI lane 0 data (+)
LCD0 MIPI lane 1 data (-)
Smart Module Series
SA800U-WF Hardware Design
Comment
Vnom = 1.8 V
I max = 50 mA
O
Active low.
1.8 V power domain.
1.8 V power domain.
100 Ω differential
impedance.
63 / 106
