Replacing The Air Filter Element And Cleaning The - Yamaha MBK X-MAX 300 2017 Service Manual

• Lower side covers
Refer to "GENERAL CHASSIS (4)" on page
4-10.
• Meter assembly
Refer to "GENERAL CHASSIS (3)" on page
4-7.
• Front cowling assemblies
Refer to "GENERAL CHASSIS (2)" on page
4-4.
• Battery
Refer to "GENERAL CHASSIS (1)" on page
4-1.
EAS31130

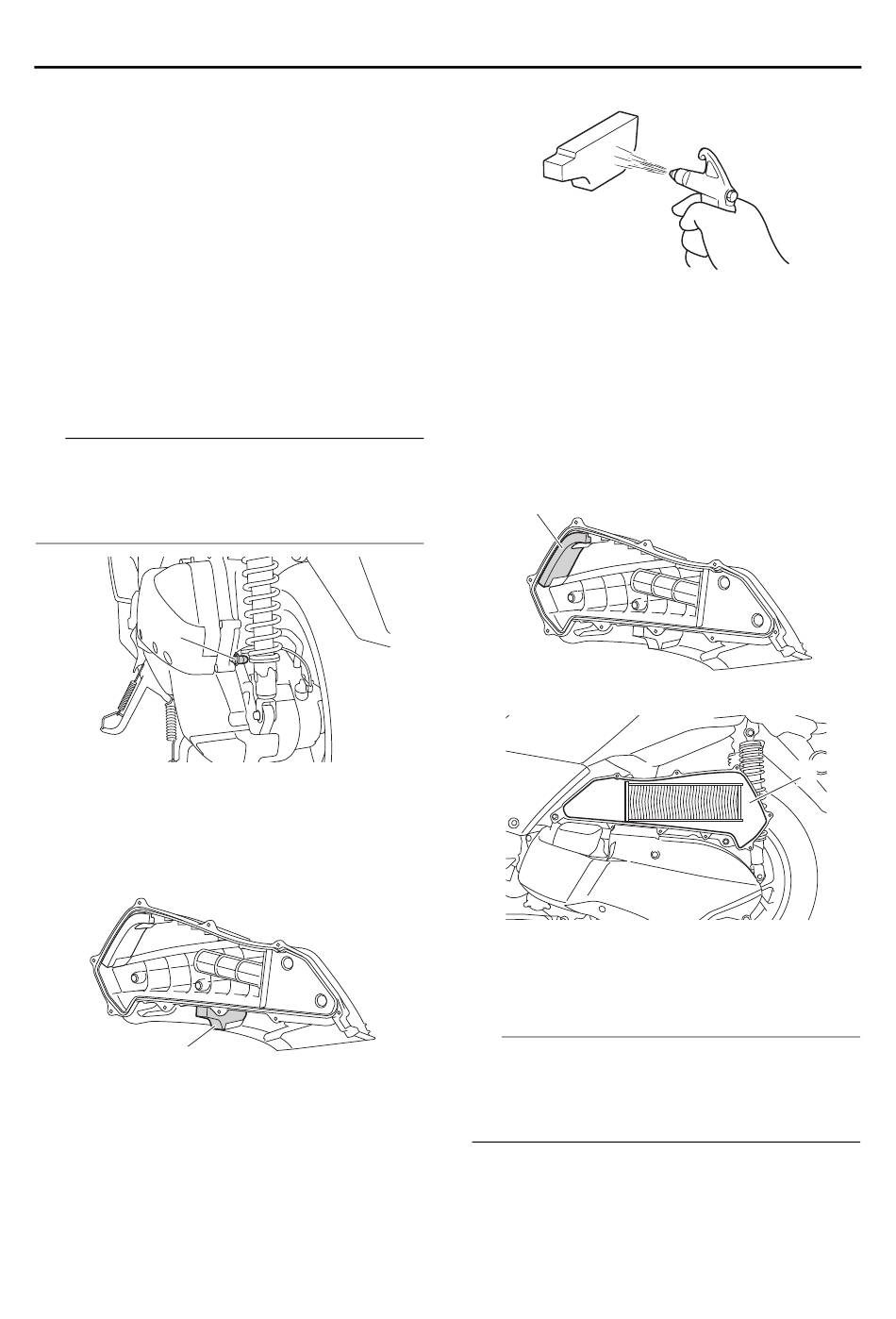

REPLACING THE AIR FILTER ELEMENT
AND CLEANING THE CHECK HOSE
TIP
Check the air filter check hose "1" that is located
on the rear side of the air filter case. If dust or
water or both collects in the hose, clean the hose
and replace the air filter element.
1
1. Remove:
• Air filter case cover
• Pre air filter element "1"
Refer to "AIR FILTER CASE" on page 7-11.
1
2. Clean:
• Pre air filter element
Blow the compressed air to the outer surface
of the pre air filter element.
PERIODIC MAINTENANCE
3. Install:
• Pre air filter element
Refer to "INSTALLING THE AIR FILTER
CASE" on page 7-12.
4. Remove:
• Sub air filter element "1"
• Air filter element "2"
Refer to "AIR FILTER CASE" on page 7-11.
1
5. Check:
• Sub air filter element
• Air filter element
Damage → Replace.
TIP
• Replace the air filter element every 20000 km
(12000 mi) of operation.
• The air filter needs more frequent service if you
are riding in unusually wet or dusty areas.
6. Install:
• Sub air filter element
• Air filter element
• Air filter case cover
3-9
2
