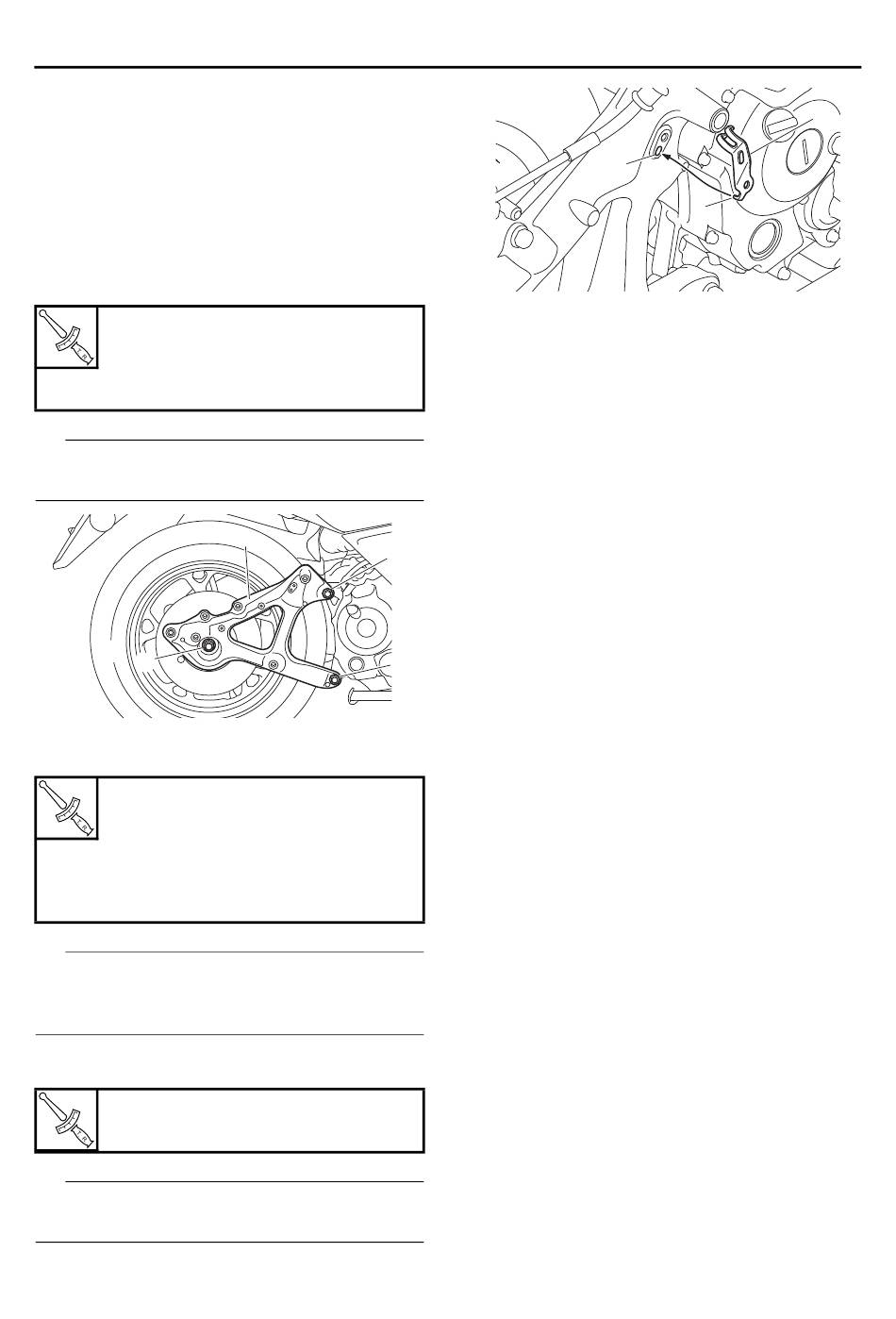

REAR SHOCK ABSORBER ASSEMBLIES AND SWINGARM
• Rear wheel axle nut "2"
(temporarily tighten)
• Swingarm mounting bolt (upper side) "3"
(temporarily tighten)
• Swingarm mounting bolt (lower side) "4"
(temporarily tighten)
4. Tighten:
• Rear wheel axle nut "2"
• Swingarm mounting bolt (upper side) "3"
• Swingarm mounting bolt (lower side) "4"
Rear wheel axle nut
125 N·m (12.5 kgf·m, 92 lb·ft)
Swingarm mounting bolt
57 N·m (5.7 kgf·m, 42 lb·ft)
TIP
Tighten the rear wheel axle nut "2", then the
swingarm mounting bolts "3", "4".
2
5. Install:
• Rear shock absorber assemblies
Rear shock absorber assembly
bolt
30 N·m (3.0 kgf·m, 22 lb·ft)
Rear shock absorber assembly
bolt
23 N·m (2.3 kgf·m, 17 lb·ft)
TIP
Tighten the rear shock absorber assembly bolts
temporarily, and then tighten them to specifica-
tion.
6. Install:
• Rear brake hose holder "1"
Rear brake hose holder bolt
7 N·m (0.7 kgf·m, 5.2 lb·ft)
TIP
Fit the projection "a" on the rear brake hose hold-
er into the hole "b" in the swingarm.
1
3
4
4-93
b
a
1
