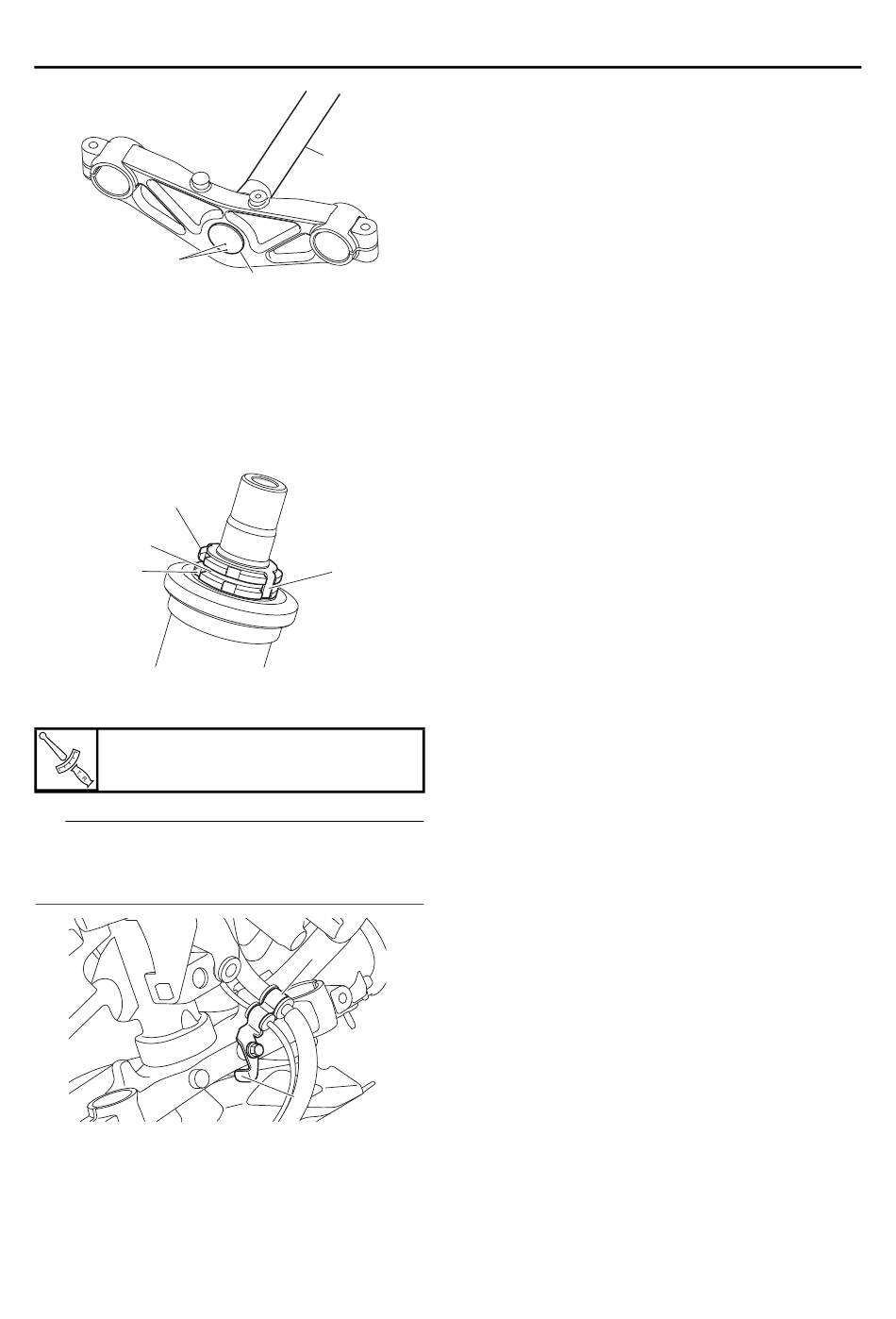

2. Install:
• Lower ring nut "1"
• Rubber washer "2"
• Upper ring nut "3"
• Lock washer "4"
Refer to "CHECKING AND ADJUSTING
THE STEERING HEAD" on page 3-15.
3
2
1
3. Install:
• Front brake hose holder "1"
Front brake hose holder bolt
7 N·m (0.7 kgf·m, 5.2 lb·ft)
TIP
While holding the front brake hose holder so that
the portion "a" of the holder contacts the lower
bracket, tighten the bolt to specification.
2
1
4
1
a
