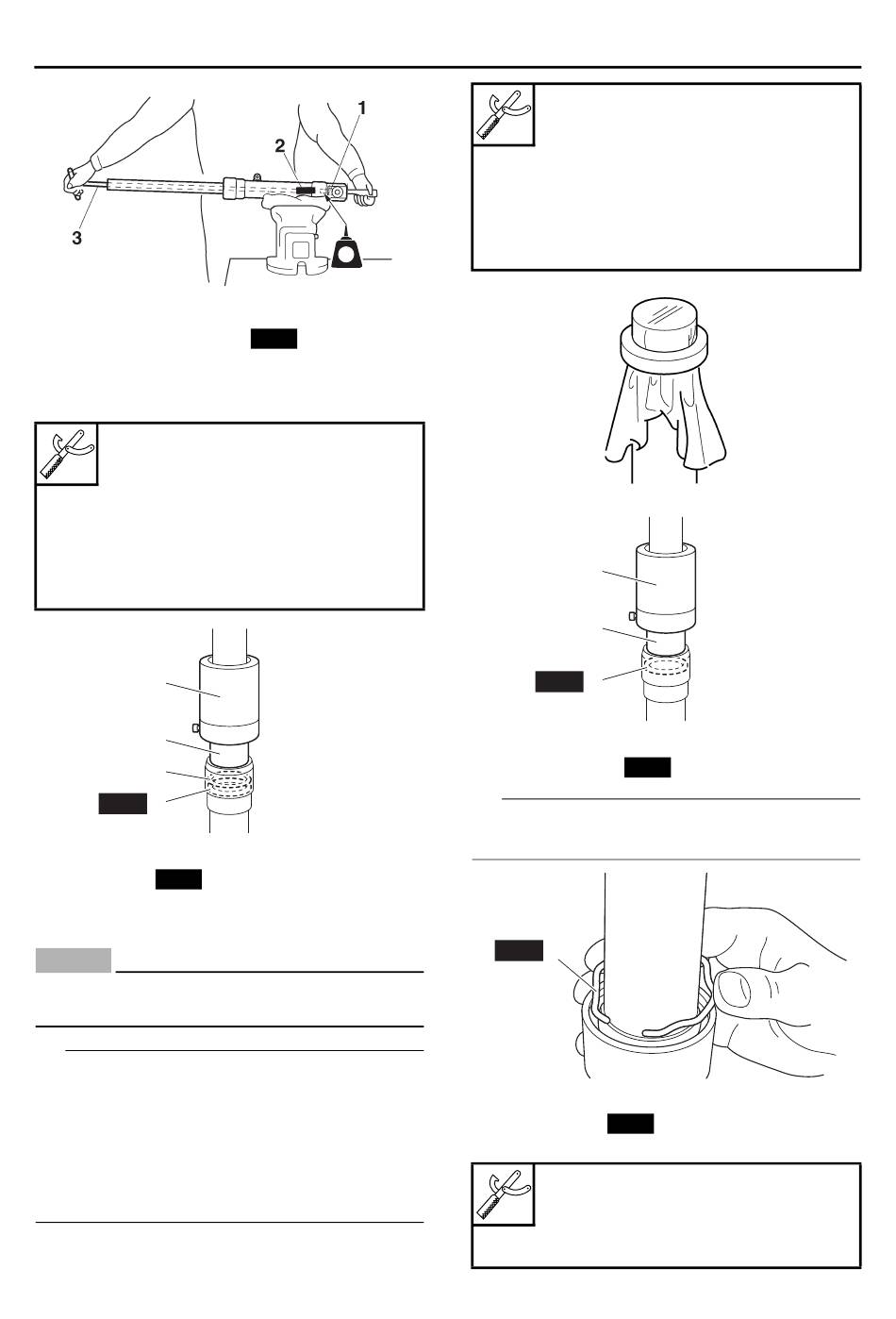

7. Install:
• Outer tube bushing "1"
• Washer "2"
(with the fork seal driver attachment "3" and
fork seal driver weight "4")
Fork seal driver weight
90890-01184
Replacement hammer
YM-A9409-7
Fork seal driver attachment (ø33)
90890-01368
Replacement 33 mm
YM-A9409-4
4
3
2
1
New
8. Install:
• Oil seal "1"
New
(with the fork seal driver attachment "2" and
fork seal driver weight "3")
ECA14220
NOTICE
Make sure the numbered side of the oil seal
faces up.
TIP
• Before installing the oil seal, lubricate its lips
with lithium-soap-based grease.
• Lubricate the outer surface of the inner tube
with fork oil.
• Before installing the oil seal, cover the top of
the front fork leg with a plastic bag to protect
the oil seal during installation.
LT
New
4-85
Fork seal driver weight
90890-01184
Replacement hammer
YM-A9409-7
Fork seal driver attachment (ø33)
90890-01368
Replacement 33 mm
YM-A9409-4
3
2
1
New
9. Install:
• Oil seal clip "1"
New
TIP
Adjust the oil seal clip so that it fits into the outer
tube's groove.
New 1
10.Install:
• Dust seal "1"
New
(with the fork seal driver weight "2")
Fork seal driver weight
90890-01184
Replacement hammer
YM-A9409-7
