• Oil flow stopper "2"
• Damper rod ring "3"
• Damper rod "4"
• Rebound spring

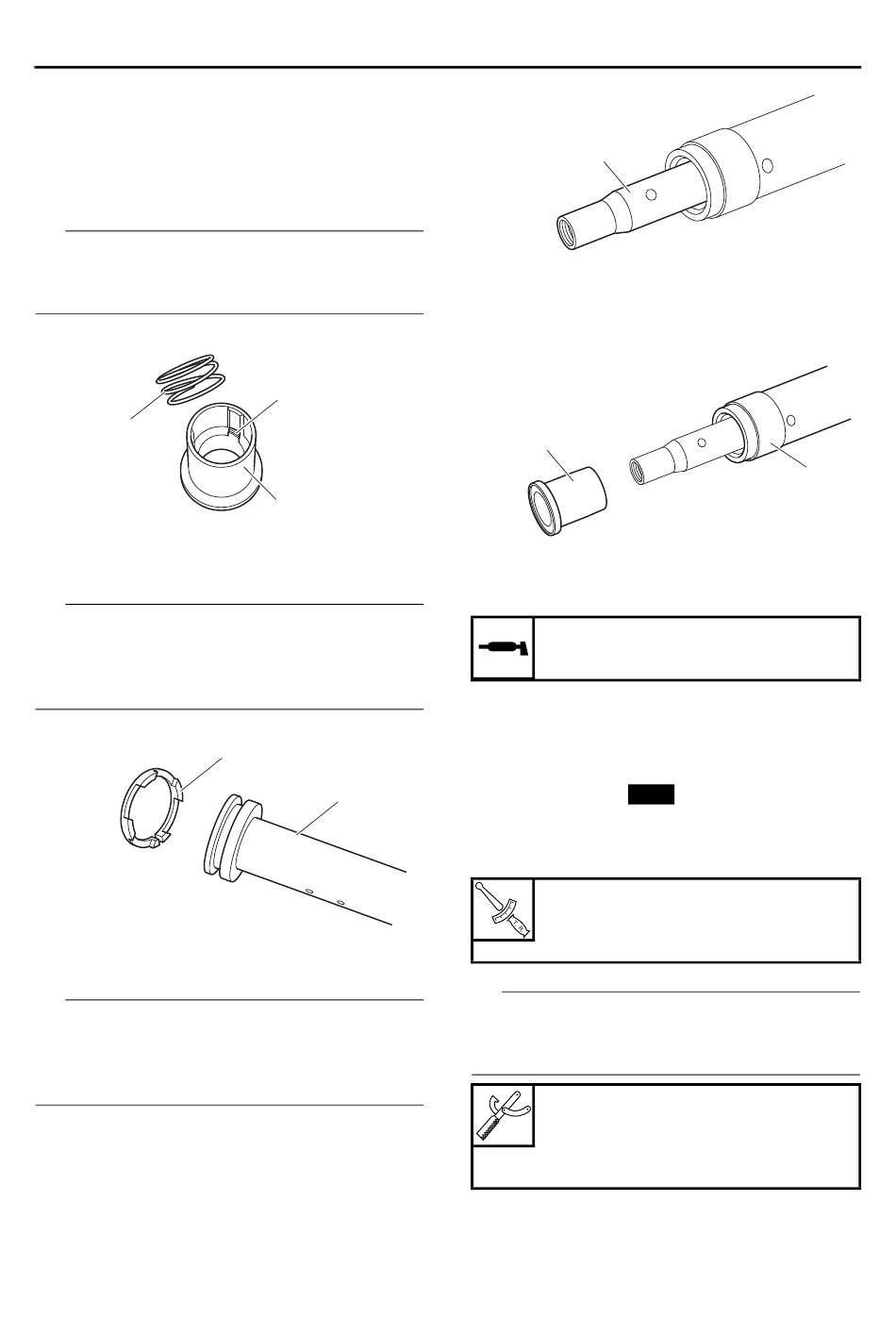

a. Install the oil flow stopper spring into the oil
flow stopper.
TIP
Make sure that the oil flow stopper spring is in-
stalled securely into the grooves "a" in the oil
flow stopper.
1
b. Install the damper rod ring onto the damp-
er rod.
TIP
Fit the damper rod ring into the damper rod
groove so that the side of the ring with the pro-
jections is facing in the direction shown in the il-
lustration.
c. Install the damper rod and rebound spring
to the inner tube.
TIP
Allow the damper rod to slide slowly down the in-
ner tube until it protrudes from the bottom of the
inner tube. Be careful not to damage the inner
tube.
a
2
3
4
4
d. Install the oil flow stopper onto the inner
tube "5".
2
3. Lubricate:
• Inner tube's outer surface
Recommended oil
Yamaha fork oil 10WT
4. Install:
• Inner tube
(in the outer tube)
5. Install:
• Copper washer
• Front fork damper rod bolt
6. Tighten:
• Front fork damper rod bolt "1"
Front fork damper rod bolt
30 N·m (3.0 kgf·m, 22 lb·ft)
LOCTITE®
TIP
While holding the damper rod assembly with a
hexagon bit socket (14 mm) "2" and the T-han-
dle "3", tighten the front fork damper rod bolt.
T-handle
90890-01326
T-handle 3/8" drive 60 cm long
YM-01326
4-84
FRONT FORK
New
5
