Adjusting The Handlebar Position; Removing The Upper Handlebar Cover; Removing The Handlebar - Yamaha MBK X-MAX 300 2017 Service Manual

EAS31396

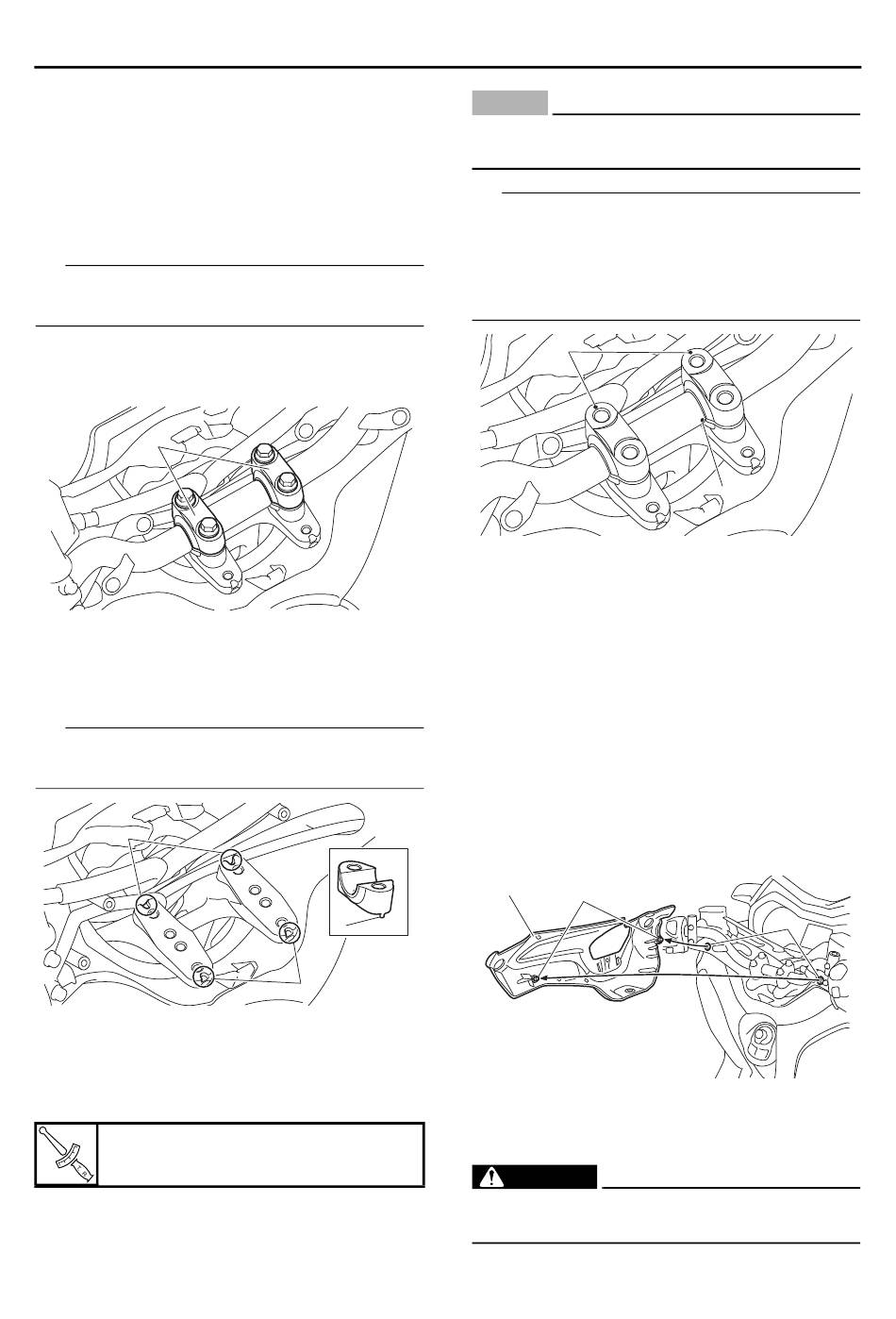

ADJUSTING THE HANDLEBAR POSITION

1. Remove:
• Upper handlebar cover
Refer to "REMOVING THE UPPER HAN-
DLEBAR COVER" on page 4-74.
2. Check:
• Handlebar position
TIP
The handlebar position can be adjusted to one
of two positions to suit the rider's preference.
3. Adjust:
• Handlebar position
a. Remove the upper handlebar holders "1".
1
b. Remove the handlebar.
c. Fit the projections "a" on the lower handle-
bar holders into the slots shown in the il-
lustration for the desired position.
TIP
Make sure that the lower handlebar holders are
installed in the same position.
b
b. Standard position
c. Rear position
d. Install the handlebar.
e. Install the upper handlebar holders.
Upper handlebar holder bolt
21 N·m (2.1 kgf·m, 15 lb·ft)
a
c
4-74
ECA18300
NOTICE
First, tighten the bolts on the front side of the
handlebar holder, and then on the rear side.
TIP
• The upper handlebar holders should be in-
stalled with the punch mark "a" facing forward.
• Align the punch mark "b" on the handlebar with
the inner edge of the upper surface of the right
lower handlebar holder.
a
4. Install:
• Upper handlebar cover
Refer to "INSTALLING THE UPPER HAN-
DLEBAR COVER" on page 4-77.
EAS32355
REMOVING THE UPPER HANDLEBAR
COVER
1. Remove:
• Upper handlebar cover "1"
a. Remove the quick fasteners and upper
handlebar cover screws.
b. Remove the projections "a" on the upper
handlebar cover from the holes "b" in the
lower handlebar cover.
1
a
EAS30203

REMOVING THE HANDLEBAR

1. Stand the vehicle on a level surface.
EWA13120
WARNING
Securely support the vehicle so that there is
no danger of it falling over.
HANDLEBAR
b
b
