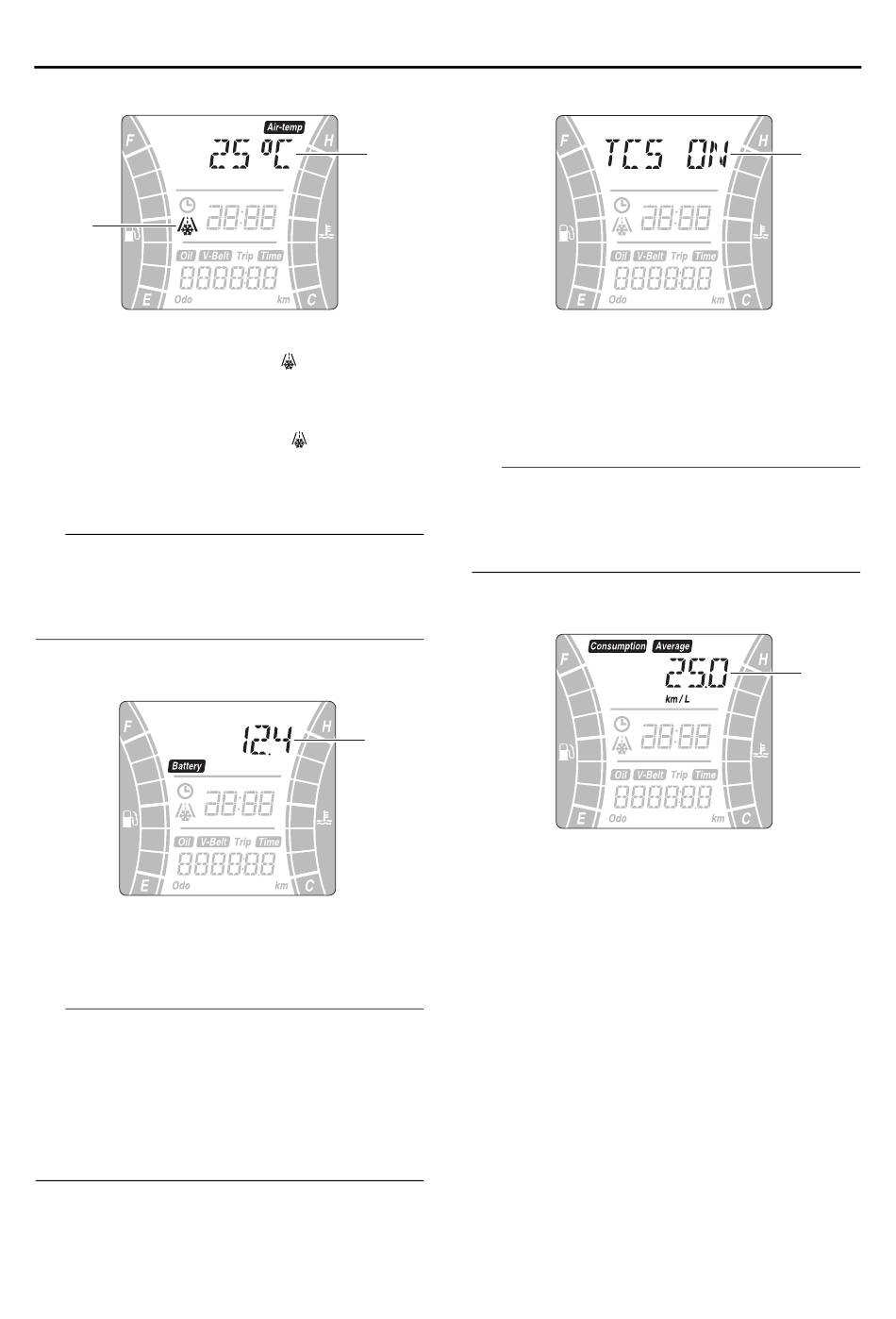

Air temperature display
2
1. Air temperature display
2. Icy road warning indicator " "
This display shows the air temperature from –10
°C to 50 °C in 1 °C increments.
The icy road warning indicator " " will flash
when the temperature is below 4 °C.
The temperature displayed may vary from the
actual ambient temperature.
TIP
The accuracy of the temperature reading may
be affected by engine heat when riding slowly
(under 20 km/h [12 mi/h]) or when stopped at
traffic signals, etc.
Battery voltage display
1. Battery voltage display
This display shows the current charge state of
the battery.
TIP
• If the engine turns over slowly when using the
start switch, check the battery. Refer to
"CHECKING AND CHARGING THE BAT-
TERY" on page 8-128.
• If "---" appears in the battery voltage display,
check the battery. Refer to "CHECKING AND
CHARGING THE BATTERY" on page 8-128.
Traction control system mode display
1
1. Traction control system mode display
This display shows the current status of the trac-
tion control system.
• "TCS ON": the system is on
• "TCSOFF": the system is off
TIP
If only "TCS" is displayed, there is a communica-
tion error within the vehicle. Check the electrical
circuit. Refer to "SIGNALING SYSTEM" on page
8-19.
Average fuel consumption display
1
1. Average fuel consumption display
This function calculates the average fuel con-
sumption since it was last reset.
The average fuel consumption can be displayed
as either "Consumption/Average_ _._ km/L",
"Consumption/Average_ _._ L/100 km" or "Con-
sumption/Average_ _ _._ MPG" (for the UK).
• "Consumption/Average_ _._ km/L": The aver-
age distance that can be traveled on 1.0 L of
fuel is shown.
• "Consumption/Average_ _._ L/100 km": The
average amount of fuel necessary to travel 100
km is shown.
• "Consumption/Average_ _ _._ MPG" (for the
UK): The average distance that can be trav-
eled on 1.0 Imp.gal of fuel is shown.
To reset the average fuel consumption, push the
"INFO" switch for at least three seconds.
1-6
FEATURES
1
1
