The fuel meter indicates the amount of fuel in the
fuel tank. The segments of the fuel meter disap-
pear from "F" (full) towards "E" (empty) as the
fuel level decreases. When the last segment of
the fuel meter starts flashing, refuel as soon as
possible.
TIP
• If a problem is detected in the fuel meter, the all
segments will flash repeatedly. If this occurs,
check the electrical circuit. Refer to "SIGNAL-
ING SYSTEM" on page 8-19.
• When approximately 2.4 L (0.63 US gal, 0.53
Imp.gal) of fuel remains in the fuel tank, the last
segment of the fuel meter will start flashing.
The display will automatically change to the
fuel reserve tripmeter "F Trip" and start count-
ing the distance traveled from that point.

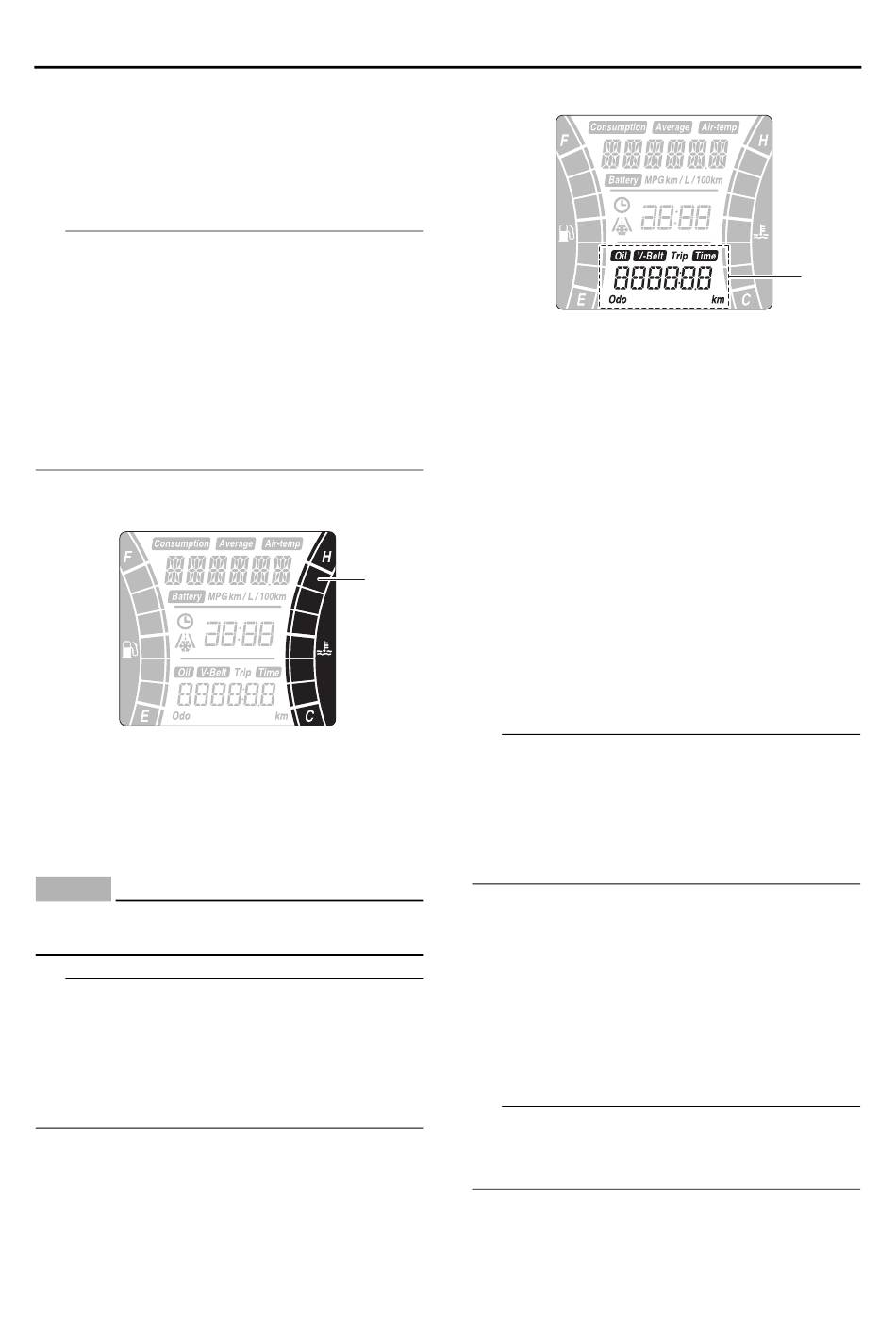

Coolant temperature meter
1. Coolant temperature meter
The coolant temperature meter indicates the
temperature of the coolant.
If the top segment flashes, stop the vehicle, then
stop the engine, and let the engine cool.
ECA10022
NOTICE
Do not continue to operate the engine if it is
overheating.
TIP
• If a problem is detected in the coolant tempera-
ture meter, all segments will flash repeatedly. If
this occurs, check the electrical circuit. Refer to
"COOLING SYSTEM" on page 8-27.
• The coolant temperature varies with changes
in the weather and engine load.
Tripmeter display
1. Tripmeter display
The tripmeter display is equipped with the fol-
lowing:
• odometer
• tripmeter
• time tripmeter
• fuel reserve tripmeter
• oil change tripmeter
• V-belt replacement tripmeter
Push the "TRIP" switch to change the display
between the odometer "Odo", tripmeter "Trip",
1
time tripmeter "Trip Time", oil change tripmeter
"Oil Trip", and V-belt replacement tripmeter "V-
Belt Trip" in the following order:
Odo → Trip → Trip Time → Oil Trip → V-Belt
Trip → Odo
TIP
When approximately 2.4 L (0.63 US gal, 0.53
Imp.gal) of fuel remains in the fuel tank, the last
segment of the fuel meter will start flashing. The
display will automatically change to the fuel re-
serve tripmeter "F Trip" and start counting the
distance traveled from that point.
Odometer "Odo" and tripmeter "Trip"
The odometer shows the total distance traveled
by the vehicle.
The tripmeter shows the distance traveled since
it was last reset.
To reset the tripmeter, select it by pushing the
"TRIP" switch, and then push the "TRIP" switch
for three seconds.
TIP
• The odometer will lock at 999999.
• The tripmeter will reset and continue counting
after 9999.9 is reached.
1-3
