Installing the Output Tray

Coming with your digitizer, there are two kinds and separated Output Trays
which store the stacked X-ray films which have been digitized. One of them is
called Output Guide, used to guide the digitized films staying on the table. The
other is called Output Basket, used to store and keep the digitized films in a
basket. You may use only one of them as an output tray at a time. Before using
them with your digitizer, you need to mount them onto the digitizer.

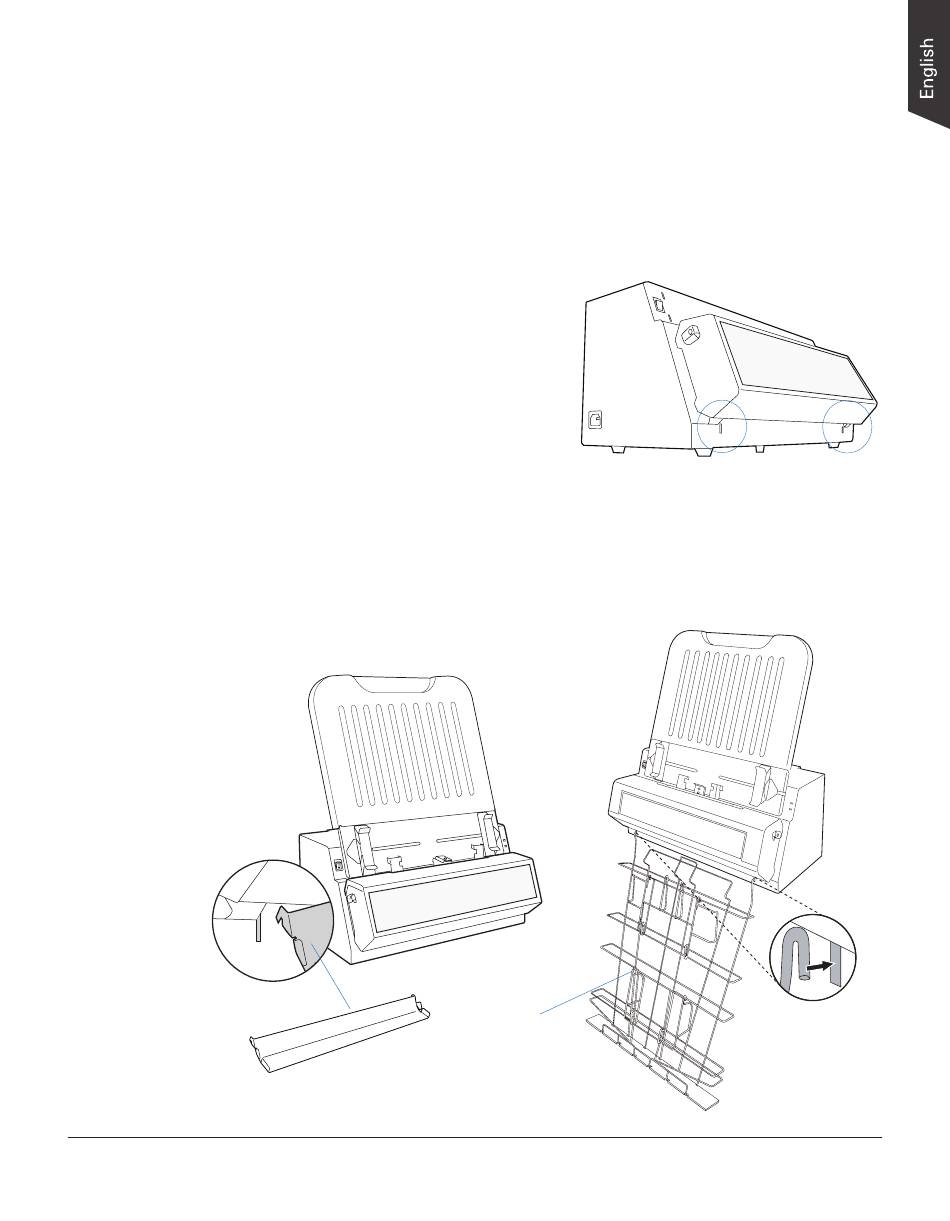

1. Look for two sets of Output Tray
Holes at both ends of the front-
bottom of the digitizer.
2. Insert and push down both sides of the Output Guide into its compartment
holes (a), making sure the Output Guide snaps into place.
Or, Insert and push down both sides of the Output Basket into its
compartment holes (b), making sure the Output Basket snaps into place.
(a)
Output Guide
Output Basket
(b)
