Output Basket

The Output Basket comes with two movable doors which are closed by the
factory settings. When a scanned film with a width larger than 5" (shown in
pic A), please open the lower door at the Output Basket. On the contrary, if the
scanned film with a width less than 5" (shown in pic B), pleas close both doors.

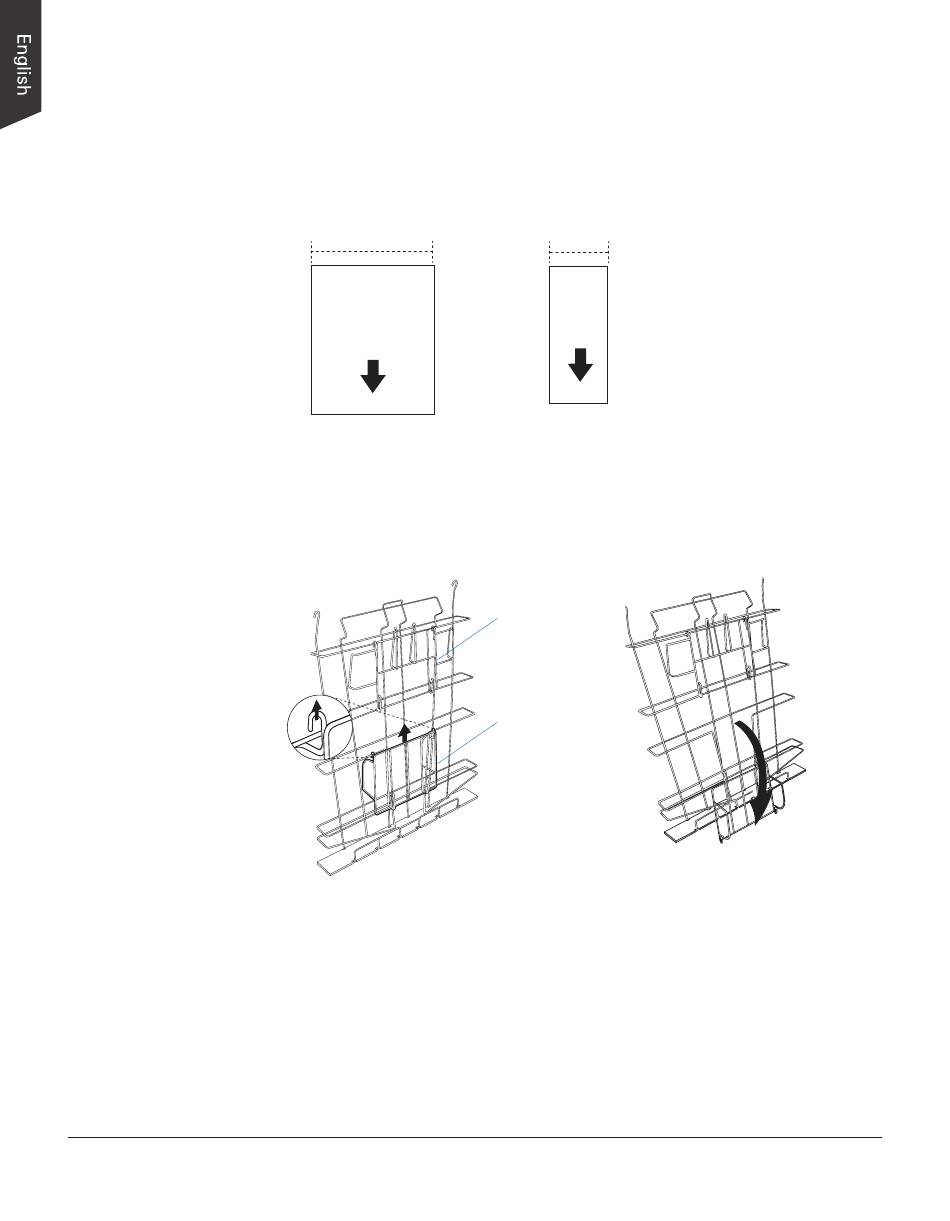

Follow the instructions and graphs below to open the doors of the basket:
1. Look for two doors at the basket first.
2. To open the door, a) locate the door's hook and then use it to raise the door
NOTE:
•
•
•
•
22 NDT-2000 User's Manual
W > 5 in
Pic A
up. b) Next, pull door outward to open.
(a)
When using the film holder, please open the lower door at the Output
Basket.
When using the AFF, please close the upper door in order to make the
sequences for output film correctly.
In order to take out output film conveniently from the basket, open the upper
door if necessary.
If the output film slips out from the basket, please close both upper and
lower doors at the Output Basket.
W < 5 in
Pic B
Upper door
Lower door
(b)
