Summary of Contents for Microtek Medi-7000

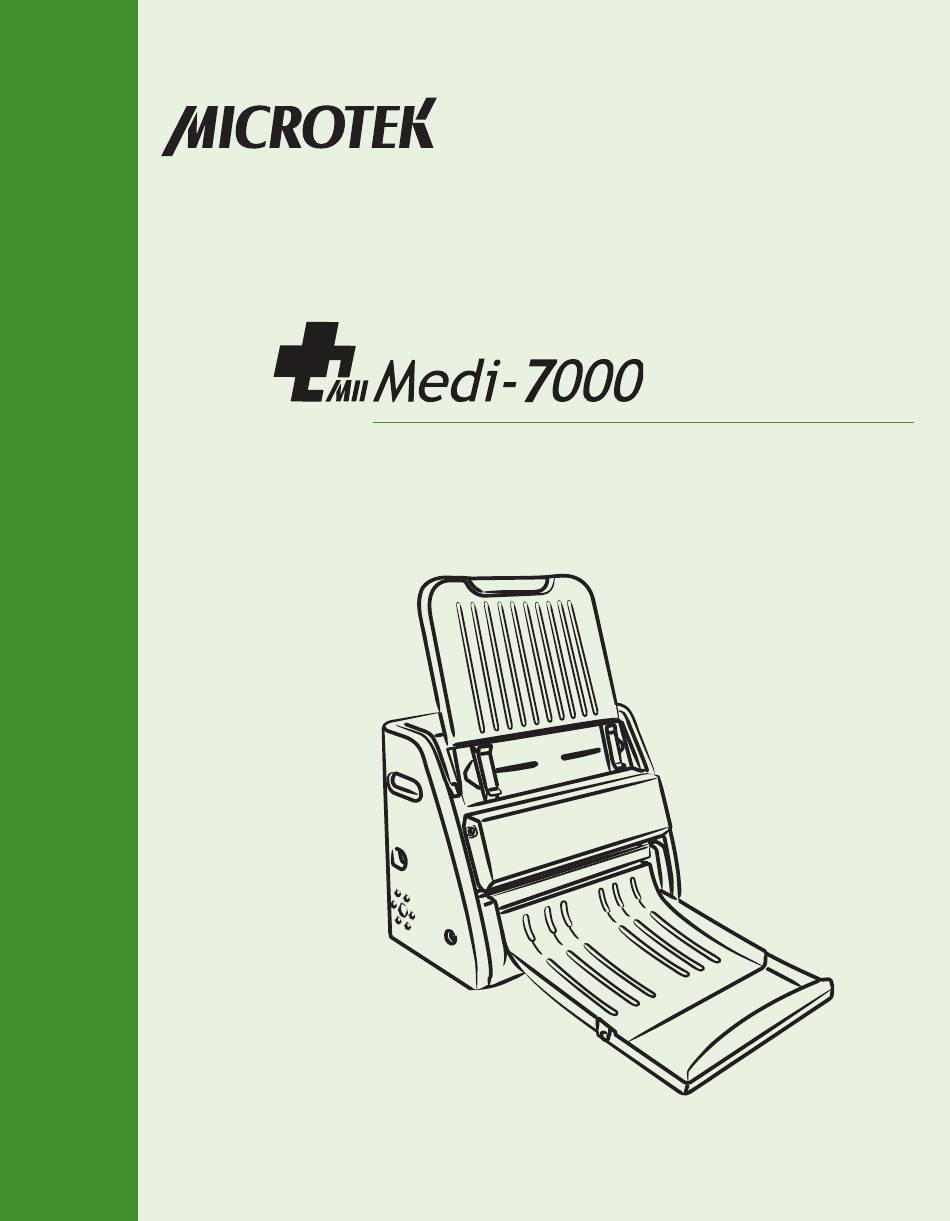

- Page 1 Film Imaging Digitizer User's Manual www.microtek.com...
-
Page 2: Preface
The contents of this manual have been checked carefully for accuracy, and every effort has been made to ensure that there are no errors. However, Microtek makes no guarantee as to the accuracy of the contents of this document and reserves the right to make changes to the contents without prior warning. - Page 3 WEEE Compliance Statement Microtek International, Inc. operates under full compliance with the WEEE Directive. Among the requirements of the Directive are the marking of any applicable equipment placed in the EU market with the WEEE symbol, a crossed out wheeled bin as shown at left; demonstration of the implementation of a take- back program;...
- Page 4 Medi-7000 User's Manual...
-
Page 5: Safety Precautions
• Do not place the digitizer on any slippery, slanted, or unstable surface. The product may slide or fall, causing serious injury to people as well as serious damage to the product. Medi-7000 User's Manual... - Page 6 WARNING This is Class A Product. In domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Medi-7000 User's Manual...
-
Page 7: Table Of Contents
Table of Contents Preface ....................2 Safety Precautions ................5 Knowing about Your Film Digitizer .............9 Features of the Medi-7000 ..............9 System Requirements ..............10 Unpacking Your Film Digitizer ............11 Looking for Damage ................ 11 Unpacking Package Contents ............11 Package Contents ................ - Page 8 Care and Cleaning ................31 Cleaning the Glass Surface ............... 31 Cleaning the Diffuser ............... 32 Cleaning the Rollers ................. 32 Maintenance ..................33 Appendix ...................34 Fixing Film Jams ................34 Troubleshooting ................35 Specifications ................. 36 Medi-7000 User's Manual...
-
Page 9: Knowing About Your Film Digitizer

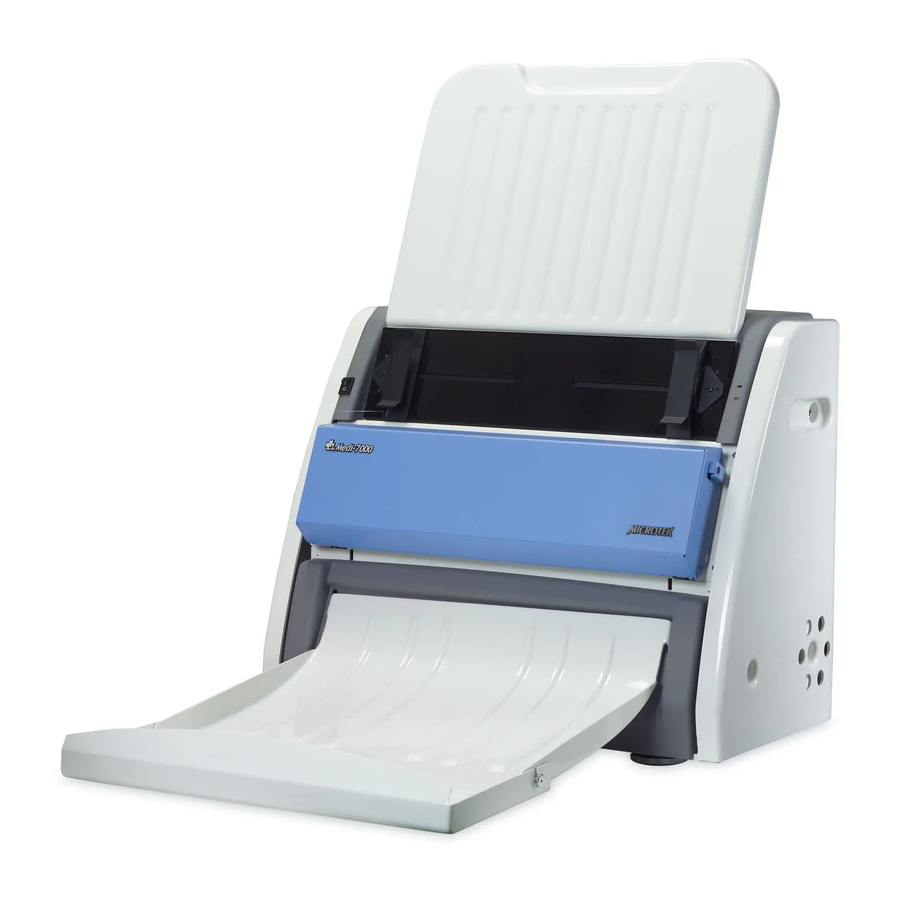

The Medi-7000 can digitize a variety of sizes of X-ray films, up to 14" x 35", and allows to archive them in different file formats as needed. -
Page 10: System Requirements
It enhances the visibility of extreme dark film, delivering a better scanning result and improving the quality of scanned files. System Requirements In order to use your Medi-7000, your computer must satisfy the following system requirements: • CD-ROM drive (for installing software) •... -
Page 11: Unpacking Your Film Digitizer
1. Ensure that you put your shipping carton toward the right direction. Then, open the shipping carton. 2. Remove the accessory box at the top of the foam supports out from the shipping carton. Medi-7000 User's Manual... - Page 12 57 pounds), it is strongly recommended that there are at least two people to help moving the digitizer package out from the shipping carton. 4. Turn over the foam supports and make the digitizer package stand vertically. Medi-7000 User's Manual...
- Page 13 5. Lift up the upper foam support. 6. Pull out the digitizer from the bottom foam support. 7. Take the digitizer out from the wrapped plastic bag and then place it on a clean and flat surface. Medi-7000 User's Manual...
-
Page 14: Package Contents
Package Contents After you have unpacked your digitizer package, please check for the major components listed below. Accessory Box Medi-7000 Film Digitizer (I41-016549) Accessory Box (PN: I37-007816) Power Cord (PN/EU: 121-46-032007) (PN/US: 121-46-500000) (PN: I41-016518) (PN/TWN: 121-46-570001) Feed Tray (PN: 215-01-500304) -
Page 15: How To Repack Your Film Digitizer For Shipping
Shipping To ship back your Medi-7000 for repairing, maintenance services, or other reasons, in order not to damage your Medi-7000, it is strongly recommended that using the original carton and packing materials. Follow the steps below to repack your Medi-7000 correctly. - Page 16 5. Put back the accessory box at the top of the foam supports. Finally, close the shipping carton and seal it with tape. Medi-7000 User's Manual...
-
Page 17: Taking A Closer Look
Uses to hook the Output Tray onto the digitizer. Green/Orange LEDs Indicates the status of the digitizer. For more details, refer to the “Troubleshooting” section of this manual. Feed Tray Holes Uses to hook the Feed Tray onto the digitizer. Medi-7000 User's Manual... -
Page 18: Rear/Side View
Rear/Side View Names of Parts Functions of Parts Hi-Speed USB Port Connects the Hi-Seed USB (USB 2.0) cable to the computer. Power Connector Connects the digitizer to the power cord. Medi-7000 User's Manual... -
Page 19: Assembling Your Film Digitizer
Holes at both ends of the front-top of the digitizer. 2. Insert and push down both sides of Feed Tray the Feed Tray into its compartment holes, making sure the Feed Tray snaps into place. Feed Tray Holes Medi-7000 User's Manual... -
Page 20: Installing The Output Tray
Output Tray (Extension part) Output Tray Holes 3. Insert and push down both sides of the main part of the Output Tray into its compartment holes, making sure the Output Tray snaps into place. Output Tray (whole unit) Medi-7000 User's Manual... -
Page 21: Installing Your Film Digitizer
After you finish the installation of software, if you found that the installed drivers and software cannot run your product or your computer system properly later, please go to the Microtek Download Service site at microtek.com/en/download to download and install any updates you may require.For additional information about Microtek products, please visit our website at www.microtek.com. -
Page 22: Connecting The Film Digitizer
To the Hi-Speed USB Cable 3. Connect one end of the Hi-Speed USB cable to your computer. 4. Connect the other end of the Hi-Speed cable to the digitizer’s USB port, locating at the left side of the digitizer Medi-7000 User's Manual... - Page 23 5. Turn the power switch at the front-left panel of the digitizer to “On”; once the scanner is detected by your system, the LED lights on the front panel will brighten, and the digitizer is ready to scan. Power switch Medi-7000 User's Manual...
-
Page 24: Digitizing Your X-Ray Film
Digitizing Your X-ray Film Positioning Your X-ray Film Medi-7000's Feed Tray can hold only one piece of X-ray film at a time. This section shows you how to position a single-sheet of X-ray film into the feed tray. 1. Install the Feed Tray onto your digitizer before using it. - Page 25 • Remove clips or staples before placing the film into the Feed Tray. DO NOT use the digitizer to scan your X-ray film with clips or staples because they may cause film jams or damage the digitizer. Medi-7000 User's Manual...
-
Page 26: Using Scanwizard Medi
Scanning X-ray Films in Auto-Scan Mode The Auto-Scan mode is the default scanning mode after the ScanWizrd Medi is launched at the first time, enabling the Medi-7000 detect the X-ray film on the Feed Tray automatically and then perform a smart scan directly. The Auto-Scan mode is always displayed on the screen unless you switch the scanning mode to the Smart-Scan mode. - Page 27 Auto-Scan mode Settings window Preview window Medi-7000 User's Manual...
-
Page 28: Scanning With Customized Settings
After loading the film, the digitizer starts to detect for the film automatically. Once the film is detected, the ScanWizard Medi will automatically recognize, auto-crop, and perform a scan of the film and save it in your preferred folder or application. Medi-7000 User's Manual... - Page 29 Auto-Scan mode Medi-7000 User's Manual...
-
Page 30: Scanning X-Ray Film In Smart-Scan Mode
Settings” in the previous section to specify your scanning requirements. 5. Click the Smart-Scan button to start scanning. With this button applied, the ScanWizard Medi can automatically detect, auto-crop, and perform a scan of the film and save it in your preferred folder or application. Medi-7000 User's Manual... -
Page 31: Care And Cleaning
Care and Cleaning To ensure optimal performance from the Medi-7000, it is important to clean several critical parts of the digitizer on a regular basis. Cleaning the Glass Surface 1. Push down two Release buttons at both sides of the front cover of the digitizer and open the front cover. -
Page 32: Cleaning The Diffuser
Clean the rollers periodically to maintain performance. Rollers are found in two areas of the Medi-7000: Directly on the digitizer, and on the side of the front cover. To clean the two sets of rollers: 1. -
Page 33: Maintenance
In this cases, contact your local dealers or wholesales for the maintenance services. Note: Your digitizer need a professional to perform the required service or maintenance. Do not attend to fix or perform the maintenance by yourself, or it may cause dangers to you or the digitizer. Medi-7000 User's Manual... -
Page 34: Appendix
Output Tray and then remove it. Note: To remove the jammed film from the digitizer, you have to open the front cover first. Otherwise, your film may be damaged if they are forcedly removed. Medi-7000 User's Manual... -
Page 35: Troubleshooting
“Code -204, Scanning lamp or image sensor circuit failure. Please don't select fast preview or draft scan!” This error message appears when the luminance of lamps is insufficient or surpassed. Click OK first; then contact the professional technician for the further help. Medi-7000 User's Manual... -
Page 36: Specifications
Storage temperature: 14° to 140°F (-10° to 60°C) Relative humidity: 20% to 95% Atmosphere pressure:70-101.3 kPa (700-1013 hPa) Altitude: <=2000 m Important Specifications, software bundles, and accessories are subject to change without notice. Not responsible for typographic errors. Medi-7000 User's Manual...
