Using the Multi-channel Film Feeder (MFF)

The Multi-channel Film Feeder (MFF) allows to scan 2-3 sheets of 60 mm, 70
mm, 80 mm, 90 mm, 100 mm, 120 mm, 140 mm, 3.3 inch and 4.5 inch in
width films at one time. This section will demonstrate how to select and set up
the film-feeding channel and use the Glass Mask that correctly matches the size
of film to be scanned together.
1. Remove top and bottom Guardrails.
2. Take out Film-separation Bars.
Film-separation
Bar
58 NDT-2000 User's Manual

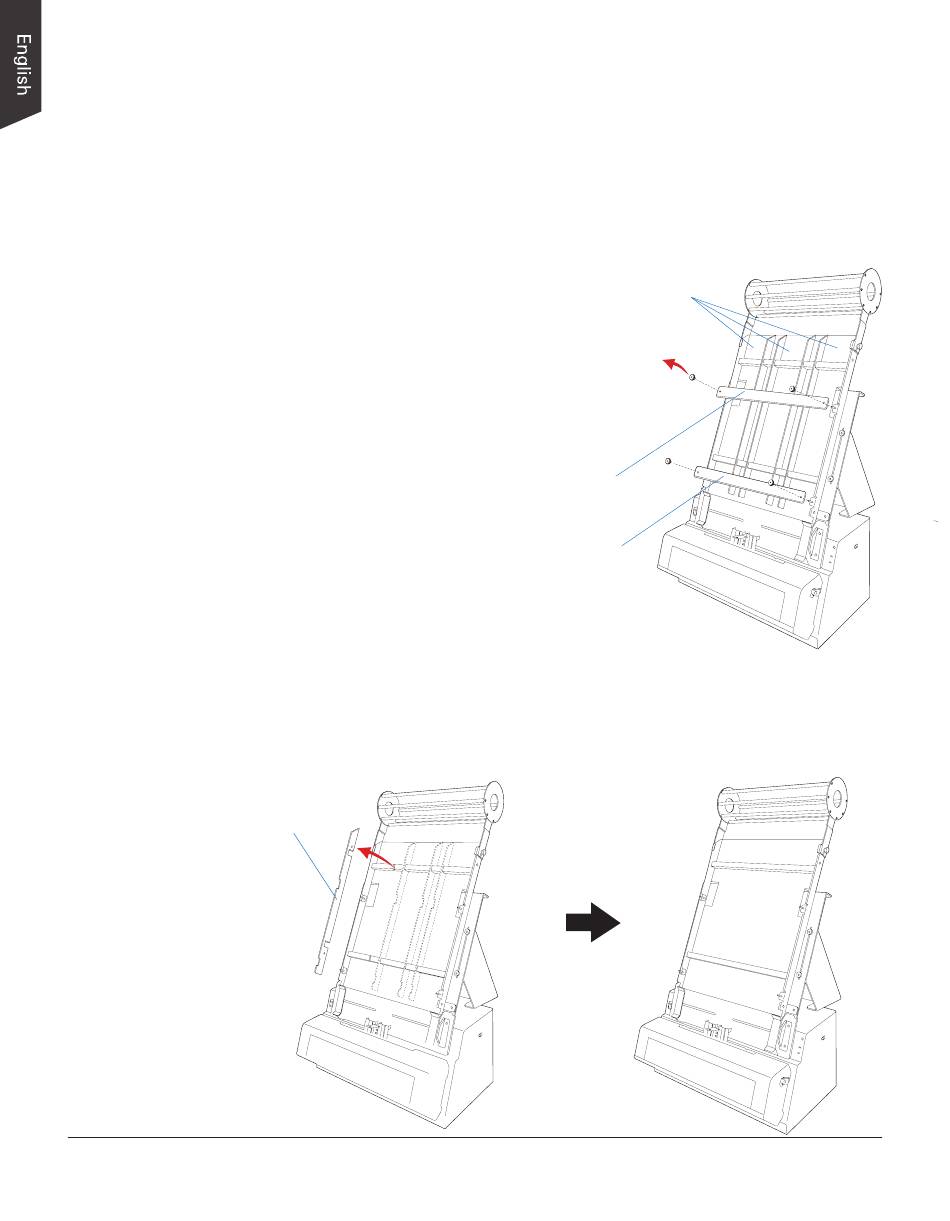

Locate two Quick-lock Nuts at two
sides of the top Guardrail of the Multi-
channel Film Tray. Spin to release
them from the set counterclockwise.
Then, remove the top Guardrail from
the tray. Follow the step above to
remove the bottom Guardrail from the
tray next.
Pinch both sides of a Film-separation Bar and then take it out from its
component part. Take turns to remove all Film-separation Bars attached with
the Multi-channel Film Tray. There should be four pieces of Film-separation
Bars in total.
Film-feeding
channels
Top Guardrail
Bottom Guardrail
