Installing the Output Tray

Coming with your digitizer, there are two kinds and separated Output Trays
which store the stacked x-ray films which have been digitized. One of them is
called Output Guide, used to guide the digitized materials staying on the table.
The other is called Output Basket, used to store and keep the digitized materials
in a basket. You may use only one of them as an output tray at a time. Before
using them with your digitizer, you need to assembly them onto the digitizer.
1. Look for two sets of Output Tray Holes at both ends of the front-bottom of
the digitizer.
2. Insert and push down both sides of
the Output Guide into its compartment
holes, making sure the Output Guide snaps into place.
Or, Insert and push down both sides of the Output Basket into its
compartment holes, making sure the Output Basket snaps into place.

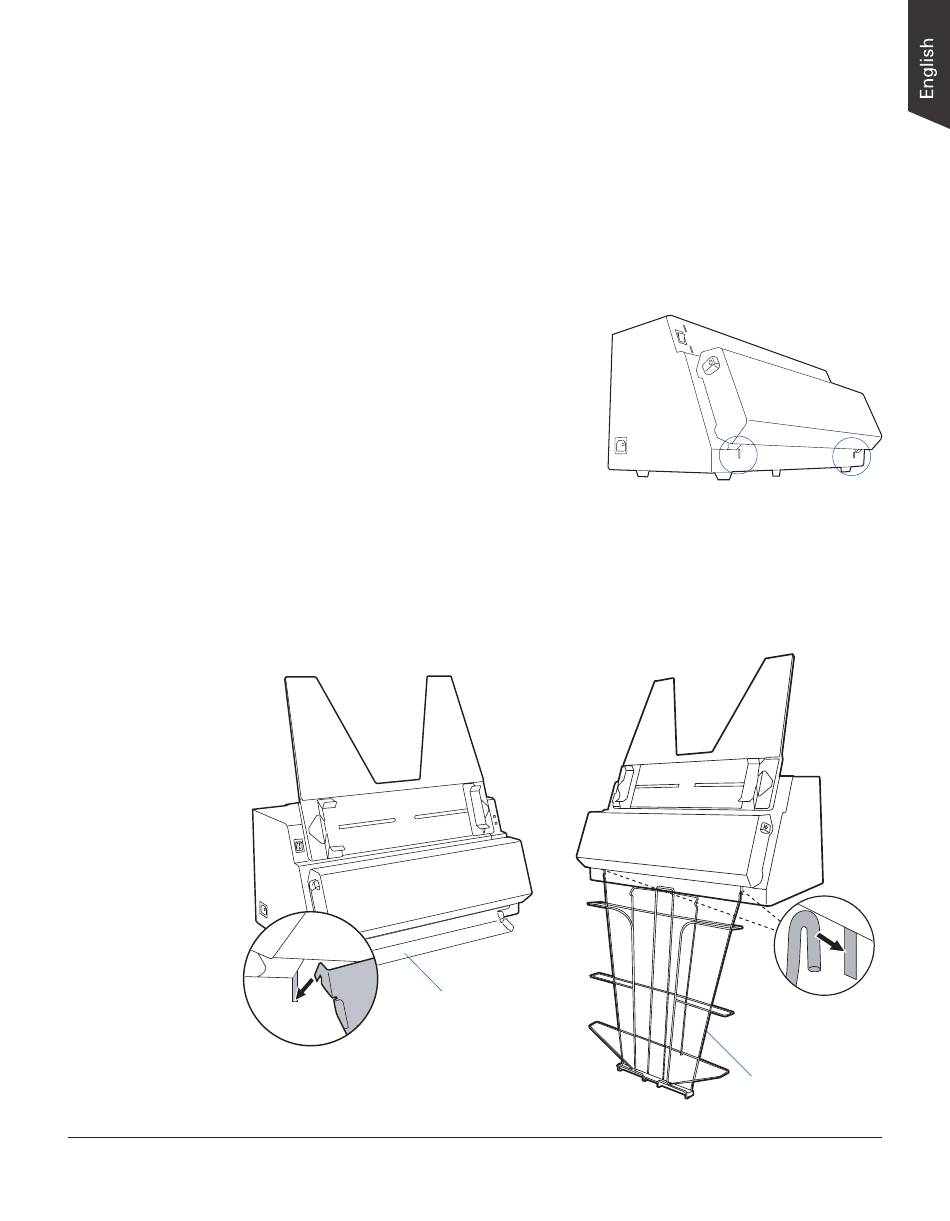

Output Guide
Output Basket
