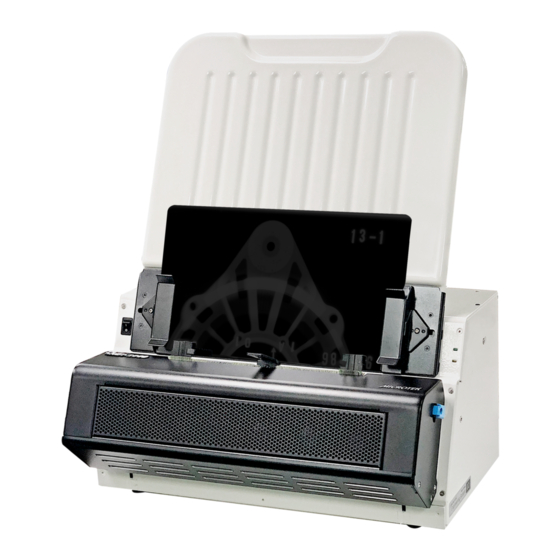

Microtek NDT-2000 Assemble

Assemble the Multi-Channel Film Feeder (MFF) with the Digitizer
Before using the Multi-channel Film Feeder (MFF) with your digitizer, you need to mount it onto the digitizer. Follow the
instructions and graphs belows to assemble the MFF correctly.

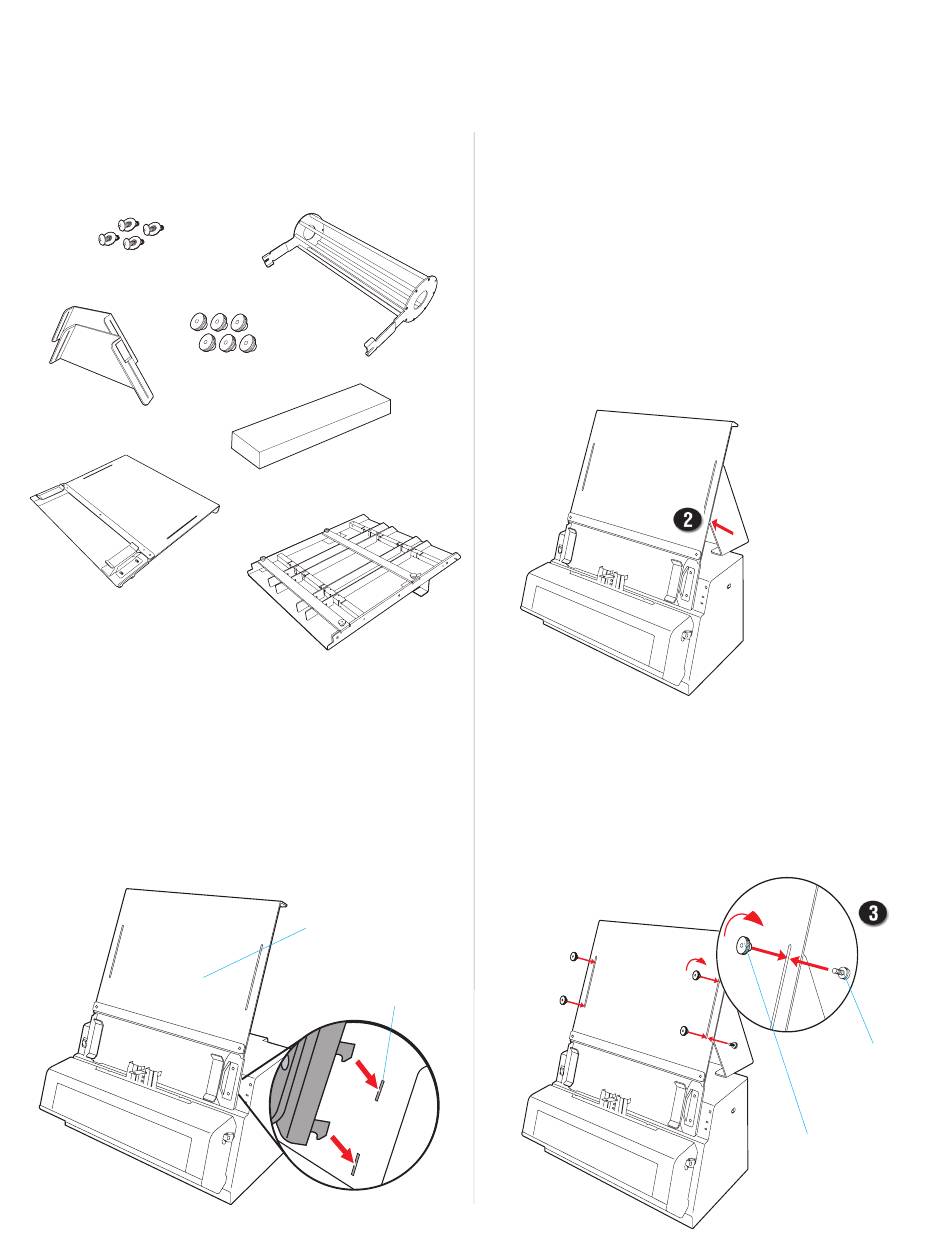

Accessories in the Box
Check for the major components listed here.
Screw & Washer Sets
Quick-lock Nuts
Back Supports
Base Tray
Installing the Base Tray
1) Look for two sets of the Feed Tray Holes at both ends of
the front-top of the digitizer.
2) Insert and push down both sides of the Base Tray into its
compartment holes, making sure the Base Tray snaps into
place.
I49-005438 A
Film-rolling
Rack
MFF Mask Kit
Multi-channel Film Tray
Base Tray
Feed Tray Holes
Securing the Back Support
After the Base Tray has been installed on the digitizer, please
follow the steps below to lock two Back Supports at the back
of the Base Tray.
To lock the first Back Support:
1. Look for the side with a soft pad of the Back Support and
put it facing down towards the top of the digitizer.
2. Lean the other side with a groove of the Back Support on
the back of the Base Tray, making sure the bottom of the
groove on the Back Support match with the bottom of the
groove on the Base Tray .
3. Insert one set of Screw & Washer through the bottom
groove of the Back Support; then, screw one Quick-lock
Nut on the set clockwise. Follow the step here to lock
the top Quick-lock Nut on the Base Tray and the Back
Support.
4. Follow the step 1 to 3 to secrue another Back Support on
the back of the Base Tray.
Match up the bottom
groove of the Back
Support with the
bottom groove of the
Base Tray.
Screw &
Washer
Quick-lock Nut
