Positioning the X-ray Films

The Multi-channel Film Feeder (MFF) can hold up 2-3 sheets of X-ray films at a
time. This section shows you how to position X-ray films into the tray of the
MFF correctly.
1. Install the MFF onto your digitizer before
2. Load the films into the tray of the MFF,
3. Pull up the Light Shield.
NOTE: If you would like to scan less than 3
sheets of X-ray films at a time, make sure
that you have to put one sheet of X-ray films
at the middle channel. For example, when
scanning two sheets of X-ray films, you
should put the first one sheet of X-ray films
at the middle channel. Then, you can put the
other one at either the left or right channel
as preferred.
64 NDT-2000 User's Manual
using it. Refer to the previous sections
"Installing the Multi-channel Film Feeder
(MFF)" and "Using the Multi-channel
Film Feeder (MFF)" for the detail.

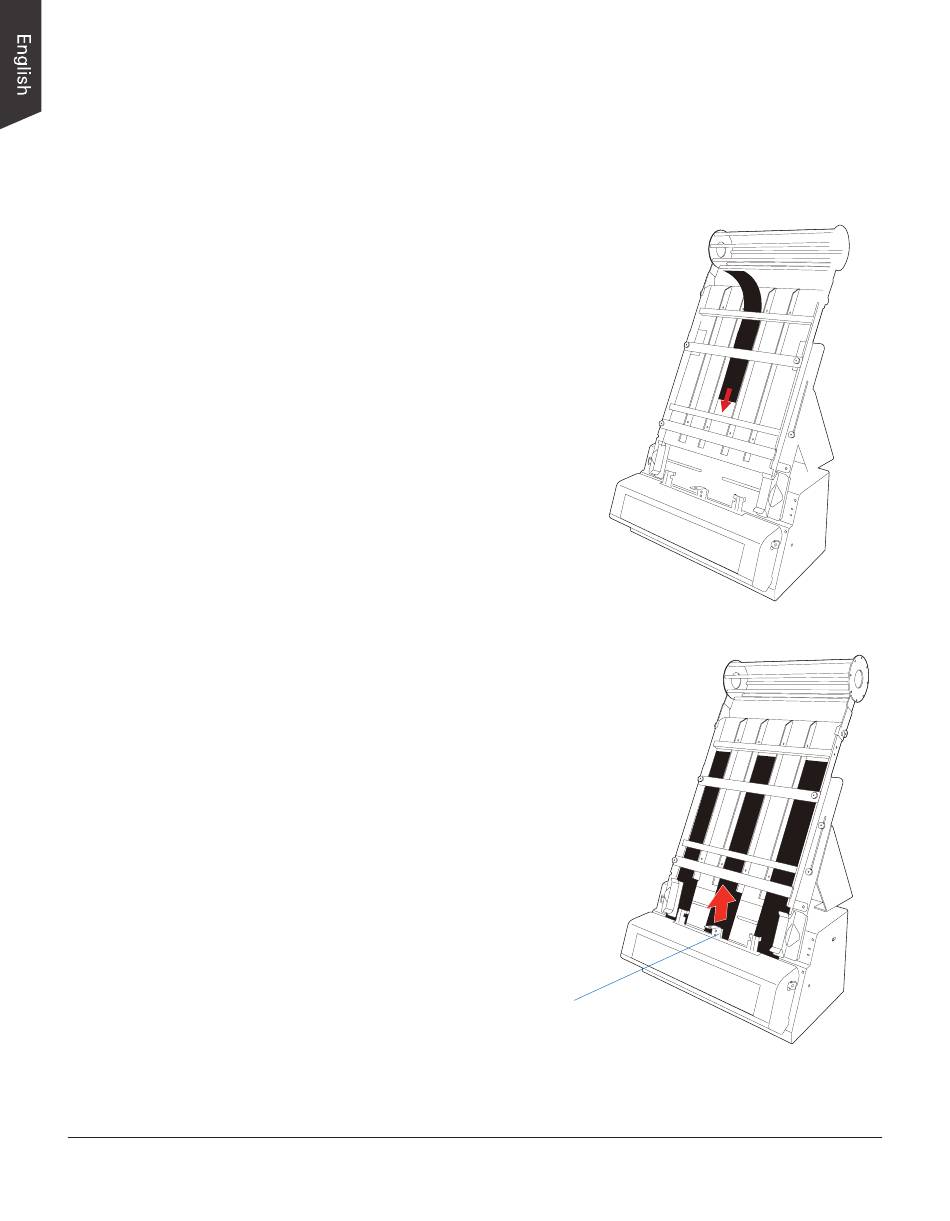

with the side to be scanned facing down
and with the top of the film directing
downwardly.
When loading the films into the tray,
make sure all films have been pushed
into the tray until the edge of them
touch the bottom edge of the MFF.
Make sure that the
Light Shield has been
lifted up.
