Using the Film-rolling Rack

The Film-rolling Rack can help you to position rolls of film. This section shows
you how to position X-ray films into the tray of the MFF with the assistance of
the Film-rolling Rack correctly.
1. Install the MFF onto your digitizer
before using it. Refer to the
previous sections "Installing the
Multi-channel Film Feeder (MFF)"
and "Using the Multi-channel Film
Feeder (MFF)" for the detail.
2. Load the roll of films into the hollow
space of the Film-rolling Rack, with
the side to be scrolled facing up and
with the top of the film directing
downwardly.
When loading the films into the tray,
make sure the film has been pulled
out into the tray until the edge of
them touch the bottom edge of the
MFF.
3. Pull up the Light Shield.
NOTE: If you would like to scan less
than 3 rolls of X-ray films at a time,
make sure that you have to put one roll
of X-ray films at the middle channel. For
example, when scanning two rolls of
X-ray films, you should put the first one
roll of X-ray films at the middle channel.
Then, you can put the other one at either
the left or right channel as preferred.

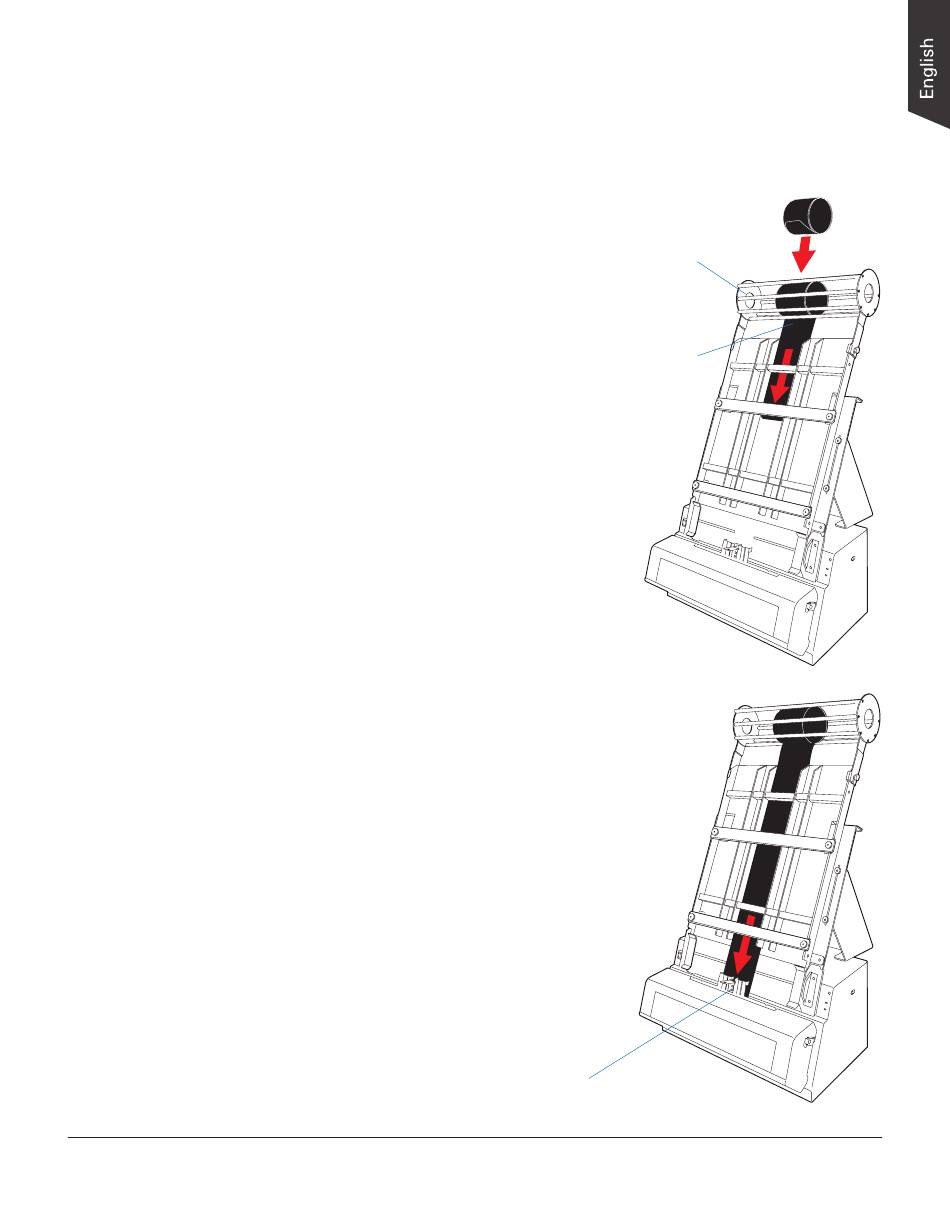

Film-rolling Rack
Pull down the
roll of film,
with the side
to be scrolled
Make sure that the
Light Shield has been
lifted up.
facing up.
