Optional Auto Film Feeder (AFF)

The Auto Film Feeder (AFF) is an optional accessory for the NDT-2000 digitizer.
The AFF only works with X-ray film, allowing to perform automatic scanning
of up to 15 sheets of the X-ray film at a time. It increases convenience and
efficiency in multiple-sheet-scanning of X-ray film.

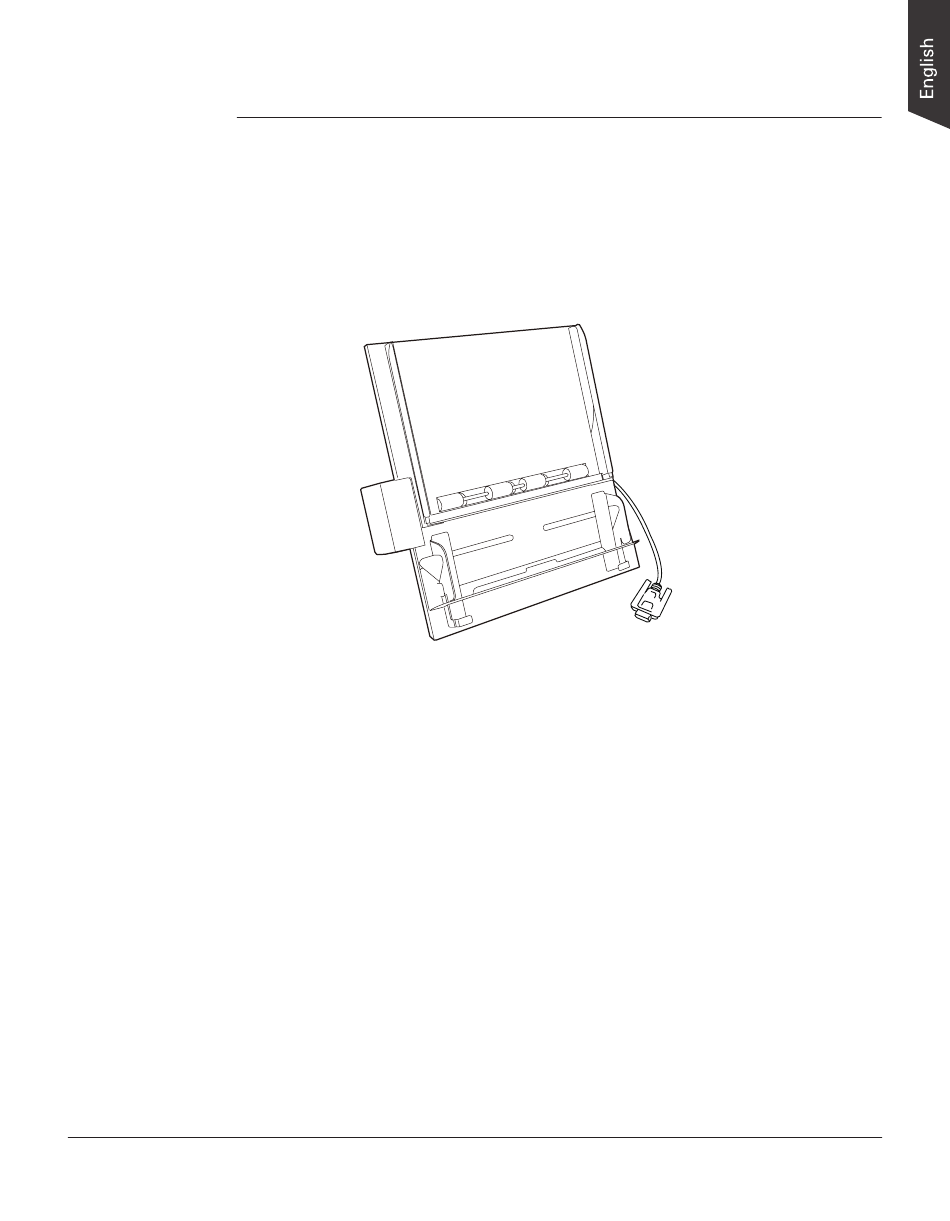

After unpacking the AFF package, check for the item shown below.
Specifications of AFF:
– Film Capacity : Up to 15 sheets of films
– Dimension: 458 (L) x 90 (W) x 438 (H) mm
– Weight: 4.45 kg
– Scanning Area: Min .2.5" x 10"; Max. 14" x 17"
The coming section describes how to install the AFF on the NDT-2000 through
the NDT-2000's accessory port and how to scan X-ray films by using the AFF.
