Installing the Output Tray

Coming with your digitizer, there is a separated Output Tray which stores the
stacked X-ray films which have been digitized. The Output Tray is divided into
two parts: the main part and the extention part. You have to combine two parts
together before using in order to get the best result working with the digitizer.

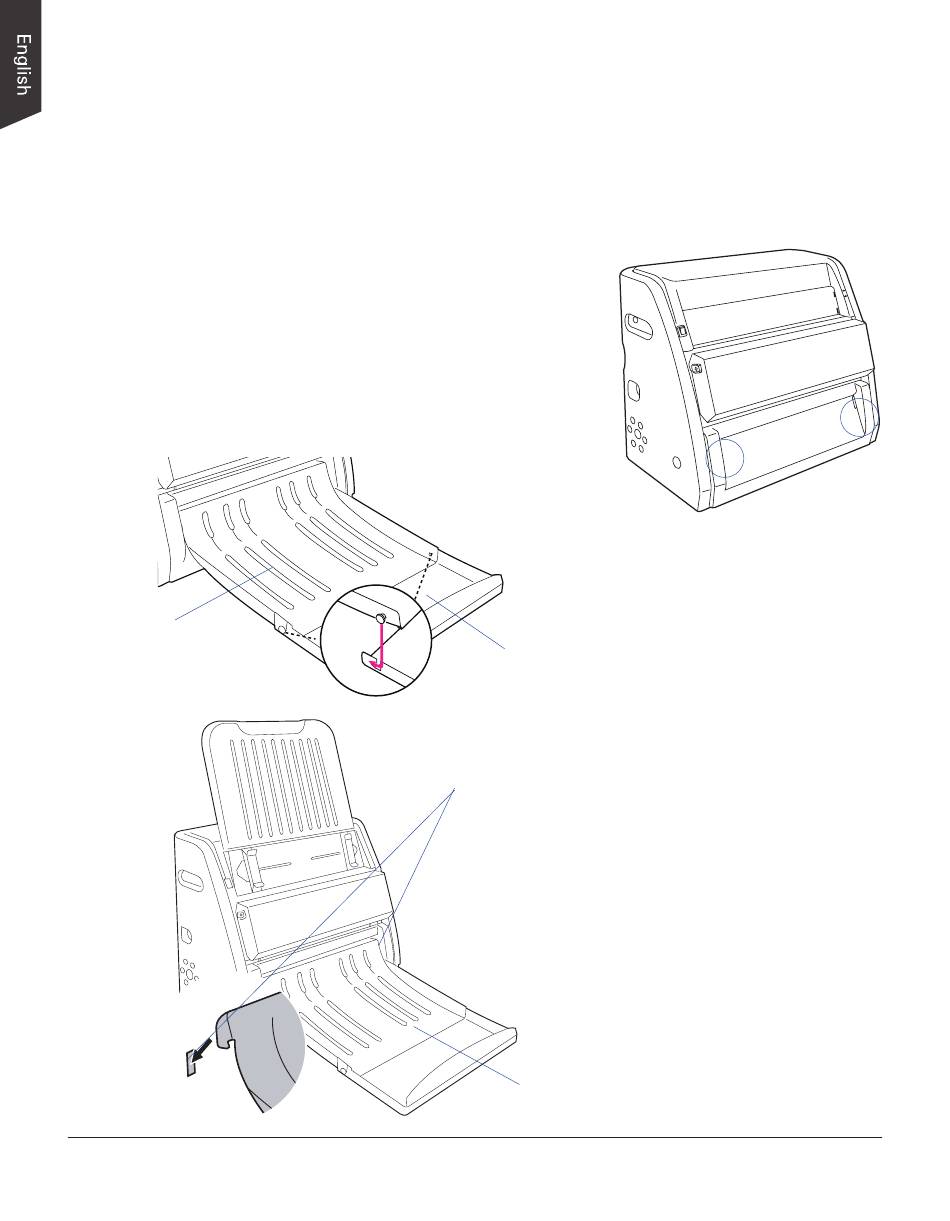

1. Look for two sets of Output Tray Holes
Output Tray
(Main part)
20 Medi-7000 User's Manual
at both ends of the front-bottom of the
digitizer.
Output Tray Holes
2. Hang the extension part onto the
compartment holes of the Output Tray,
making sure the extension part snaps
into place.
Output Tray
(Extension part)
3. Insert and push down both sides of the
main part of the Output Tray into its
compartment holes, making sure the
Output Tray snaps into place.
Output Tray
(whole unit)
