B. Using the 12" x 3 1/3" Film Holder
To scan 12" x 3 1/3" industrial film, use the 12" x 3 1/3" Film Holder, which can
hold up to one piece of the 12" x 3 1/3" industrial X-ray films at a time.

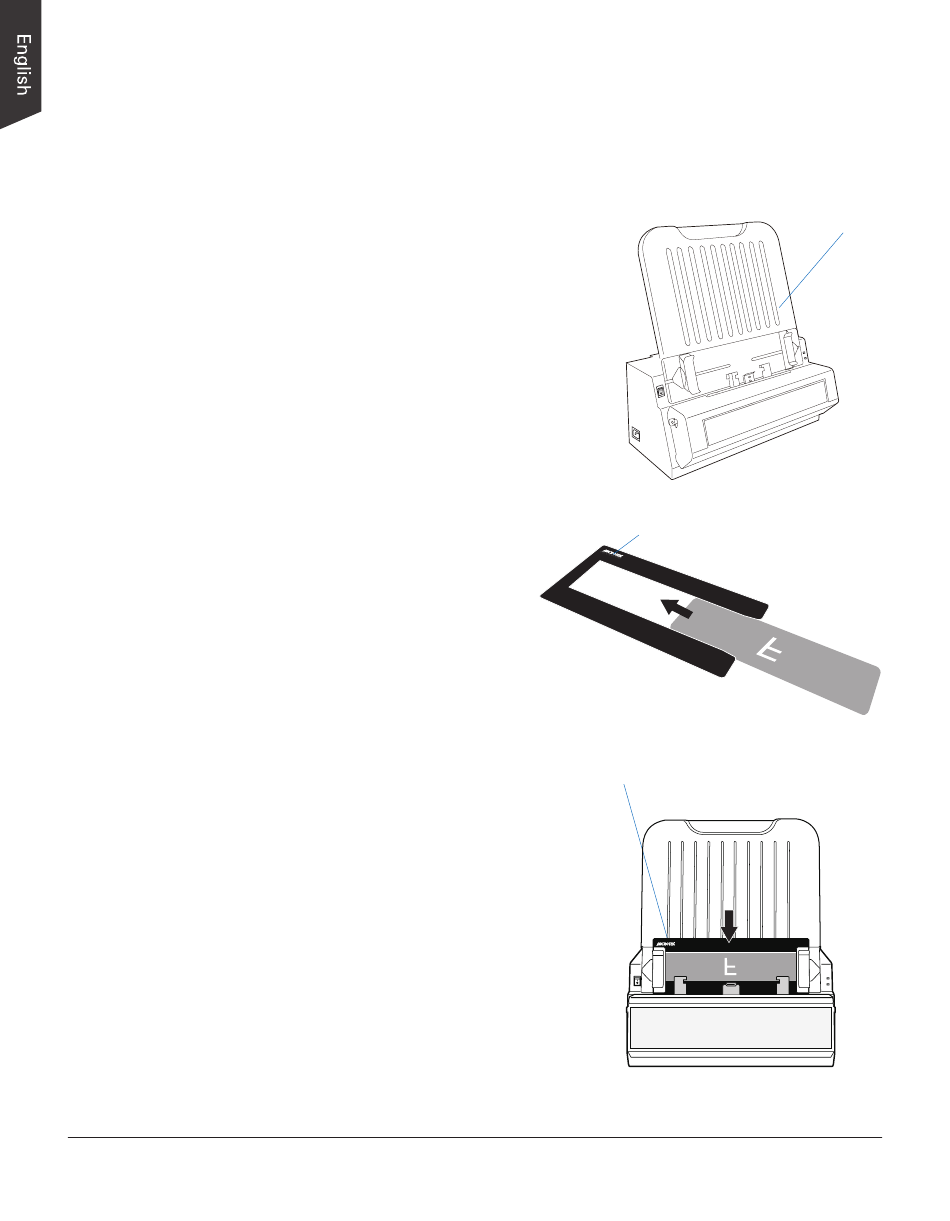

1. Install the Feed Tray onto your digitizer
2. Load the film face down inside the
3. Load and insert the 12" x 3 1/3" Film
4. Make sure that the Light Shield has
32 NDT-2000 User's Manual
before using it. Refer to the previous
section "Installing the Feed Tray" for
the detail.
holder. Slide the film along the
slot of the holder until the film
is fully loaded.
Holder with loaded film into the Feed
Tray, with the side to be scanned
facing down and with the top of the
film directing downwardly.
Push the holder into the tray until the
edge of it touches the bottom edge of
the Feed Tray.
been pull up.
Microtek logo
Microtek logo
12.5" x 3 1/3" Film Holder
Feed Tray
