Installation Preparation

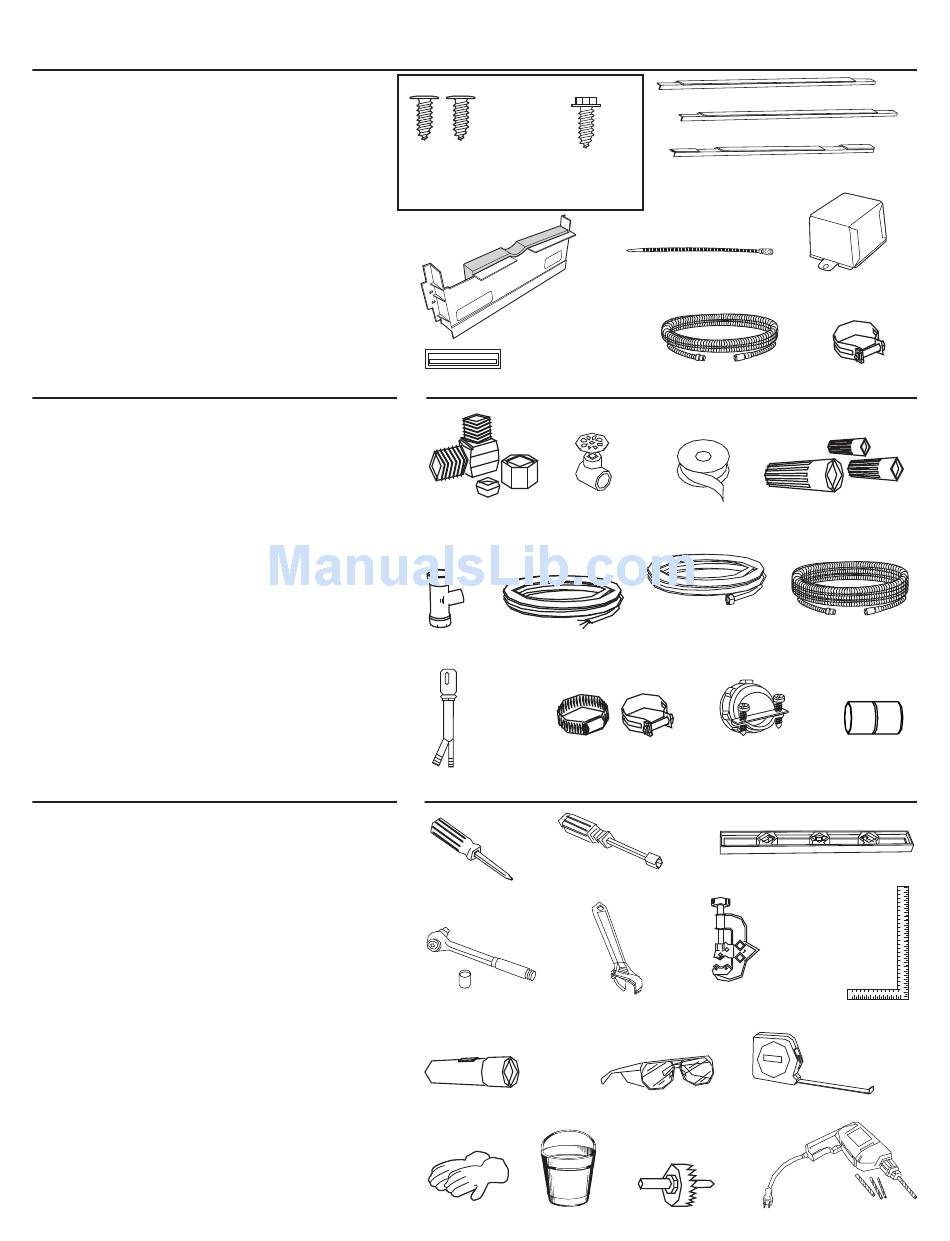

PARTS SUPPLIED WITH
INSTALLATION KIT:
Two #8-18 x 5/8" Phillips special head screws, to
secure dishwasher to underside of countertop or
sides of cabinets.
Junction box cover and #10-1/2" hex-head screw
Side and top trim
Trim Panel Accessory Kit (not shown)
(Custom panel models only)
Sound upgrade kit (some models)
Drain hose (78") , drain hose hanger and hose
clamp
Literature, product samples and/or coupons
Hard water test strip (Models with Bulk Dispenser)

MATERIALS YOU WILL NEED:

Ferrule, compression nut and 90° Elbow (3/8" NPT
external thread on one end, opposite end sized to
fit water supply)
Thread seal tape
UL-listed wire nuts (3)
Materials For New Installations Only:
Air gap for drain hose, if required
Waste tee for house plumbing, if applicable
Electrical cable or power cord, if applicable
Screw-type hose clamps
Strain relief for electrical connection
Hand shut-off valve
Water line 3/8" min. copper
Coupler for extending drain line, if applicable
GPF10L 10' drain hose, if needed

TOOLS YOU WILL NEED:

Phillips-head screwdriver
1/4" and 5/16" nutdriver
6" Adjustable wrench
Level
Carpenter's square
Measuring tape
Safety glasses
Flashlight
Bucket to catch water when flushing the line
15/16" socket
Gloves
For New Installations Only:
Tubing cutter
Drill and appropriate bits
Hole saw set
2
Screw Kit
#8 Phillips
#10 Hex-Head
Special Head Screws
J-Box Screw
5/8" long
1/2" long
Sound Upgrade Kit
(Some Models)
Hard Water Test Strip
(Models with
Bulk Dispenser)
90° Elbow,
Hand
Ferrule and
Shut-Off
Compression Nut
Valve
Electrical Cable
Waste Tee
(or Power Cord, if applicable)
Air
Screw-Type
Gap
Hose Clamps
Phillips-
1/4" and
Head
5/16" Nutdriver
Screwdriver
1/4" and
6" Adjustable
15/16" Socket
Wrench
Flashlight
Gloves
Bucket
Trim Pieces
Drain Hose Hanger
Drain Hose (78")
Thread
Wire Nuts (3)
Seal Tape
Hot Water Line
Strain Relief
Level
Tubing Cutter
Measuring Tape
Safety Glasses
Hole Saw Set
Drill and Bits
Side Trim
Side Trim
Top Trim
Junction
Box Cover
Hose Clamp
GPF10L
10' Drain Hose
Coupler
Carpenter's
Square
