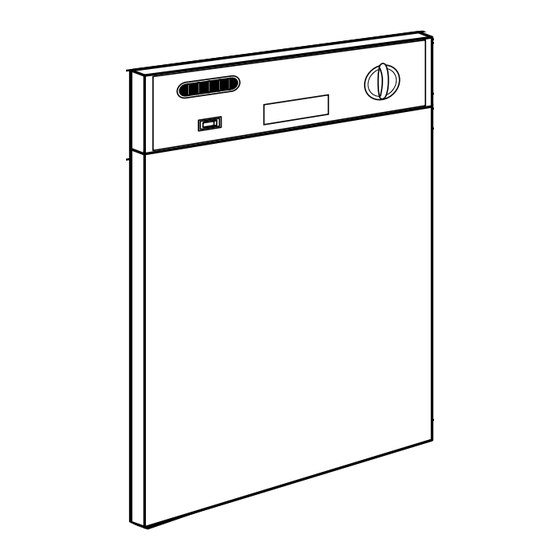

Built-in dishwasher
Hide thumbs
Also See for GSM1860NSS:
- Owner's manual (16 pages) ,
- Installation instructions manual (33 pages) ,
- Dimensions and installation information (2 pages)
Table of Contents
Advertisement
Quick Links
GE Consumer & Industrial
Appliances
Installation Instructions
Junction Box Cover
Within this user bag, you will find a junction
box cover and a #10 hex head screw used
to attach the junction box cover to the
bottom bracket or front brace (depending
on the model). The #10 hex-head screw
is packaged in a small bag within the
user bag. Use these parts when making
electrical connections.
WARNING
THE JUNCTION BOX COVER AND SCREW
MUST BE USED DURING THE ELECTRICAL
CONNECTION STEPS TO AVOID THE RISK OF
FIRE OR ELECTRIC SHOCK. SEE INSTALLATION
INSTRUCTIONS.
#282 French
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Supplied Parts:
#10 Hex-Head Screw 1/2" Long
�������������
Junction Box Cover
������������
© 2006 General Electric Company
Pub. No. 49-55020
Part No. 165D4700P340
ND 06C-1690 (4/06)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GE GSM1860NSS
Summary of Contents for GE GSM1860NSS
-
Page 1: Installation Instructions

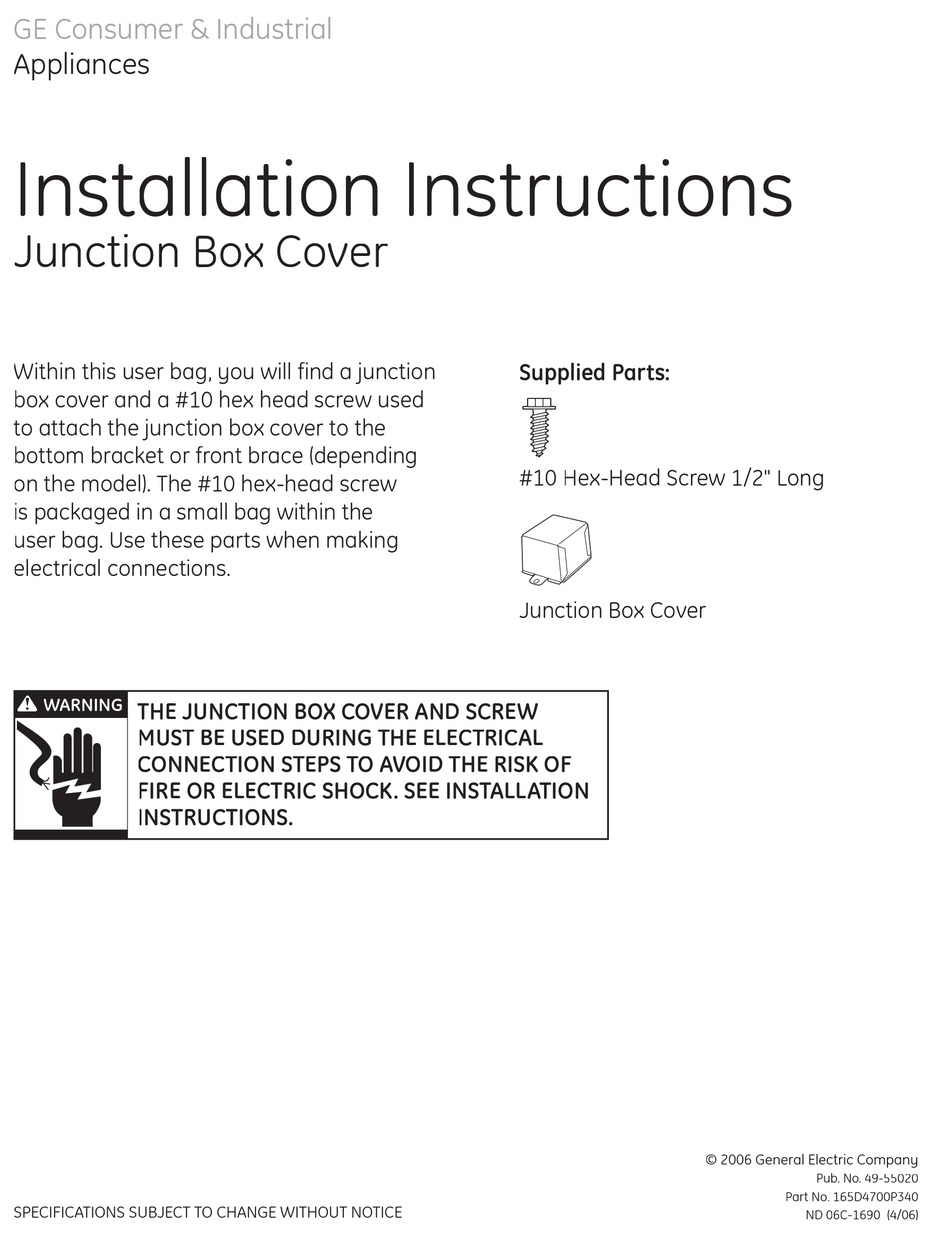

GE Consumer & Industrial Appliances Installation Instructions Junction Box Cover Within this user bag, you will find a junction box cover and a #10 hex head screw used to attach the junction box cover to the bottom bracket or front brace (depending on the model). -
Page 2: Built-In Dishwasher
Proper installation is the responsibility of the installer. Product failure due to improper installation is not covered under the GE Appliance Warranty. • Completion Time – 1 to 3 Hours. New installations require more time than replacement installations. -
Page 3: Parts Supplied
PARTS SUPPLIED: Two #8 Phillips flat head wood screws, 5/8" long to secure dishwasher to underside of countertop (in literature package). Two Phillips head, color matched toekick screws (in literature package). MATERIALS YOU WILL NEED : Ferrule, compression nut and 90° Elbow (3/8"NPT external thread on one end, opposite end sized to fit water supply) Thread seal tape UL Listed wire nuts (3) -
Page 4: Prepare Dishwasher Enclosure
Installation Preparation PREPARE DISHWASHER ENCLOSURE 34" to 35" Underside of Countertop to Floor 17-5/8" Min. 18" Max. Floor MUST be Even with Plumbing and Electric Service Figure A Room Floor. Must Enter Shaded Area • The rough cabinet opening must be at least 24" deep and 17-5/8"... -
Page 5: Prepare Electrical Wiring
PREPARE ELECTRICAL WIRING WARNING FOR PERSONAL SAFETY: Remove house fuse or open circuit breaker before beginning installation. Do not use an extension cord or adapter plug with this appliance. Electrical Requirements • This appliance must be supplied with 120V, 60 Hz., and connected to an individual properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. -
Page 6: Prepare Hot Water Line
PREPARE HOT WATER LINE • The line may enter from either side, rear or floor within the shaded area shown in Figure F. • The line may pass through the same hole as the electrical cable and drain hose. Or, cut an additional 1-1/2"... -
Page 7: Step 2 Adjust Leveling Legs
Installation Instructions STEP 2 ADJUST LEVELING LEGS • Move the dishwasher close to the installation location and lay it on its back. Adjust to Installation Height Figure H • Measure installation height and dishwasher height. Extend leveling legs out from the dishwasher base, 1/4"... -
Page 8: Step 6 Position Water Line And House Wiring
STEP 6 POSITION WATER LINE AND HOUSE WIRING • Position water supply line and house wiring on the floor of the opening to avoid interference with base of dishwasher and components under dishwasher. House Water Wiring Line Figure M STEP 7 INSERT DRAIN HOSE THROUGH CABINET •... -
Page 9: Step 9 Position Dishwasher Under Countertop
STEP 9 POSITION DISHWASHER UNDER COUNTERTOP • Check to be sure that wires are secure under the dishwasher and not pinched or in contact with door springs or other dishwasher components. TIP: Check tub insulation blanket, if equipped. It should be positioned so it is not bunched up or interfering with door springs. -
Page 10: Step 11 Secure Dishwasher To Cabinet
Installation Instructions STEP 11 SECURE DISHWASHER TO CABINET The dishwasher must be secured to the countertop. • Position the dishwasher so that the tub flange aligns with the front face of the cabinet frame. IMPORTANT: Check to be sure the dishwasher is centered in the opening and there is no interference with adjacent cabinets when opening or closing the door. -
Page 11: Step 13 Connect Drain Line
Installation Instructions STEP 13 CONNECT DRAIN LINE FOLLOW ALL LOCAL CODES AND ORDINANCES. The drain hose molded end will fit 5/8", 3/4" or 1" diameter connections on the air gap, waste tee or disposer. Cut on the marked line as required for your installation. -
Page 12: Step 14 Connect Power Supply
STEP 14 CONNECT POWER SUPPLY Skip this step if equipped with power cord. Verify that power is turned off at the source. • Remove junction box cover “A”. • Locate the three dishwasher wires, (white, black and green) with stripped ends. Insert dishwasher wires through the small hole in the junction box “B”. -
Page 13: Step 16 Dishwasher Wet Test
Installation Instructions STEP 16 DISHWASHER WET TEST Turn on power supply (or plug power cord into outlet, if equipped). Turn dial to Normal “Wash” position. Close door. Check to be sure that water enters the dishwasher. If water does not enter the dishwasher, check to be sure that water and power are turned on.
