Installation Preparation–Hot Water Supply
PREPARE HOT WATER SUPPLY
Hot Water Line

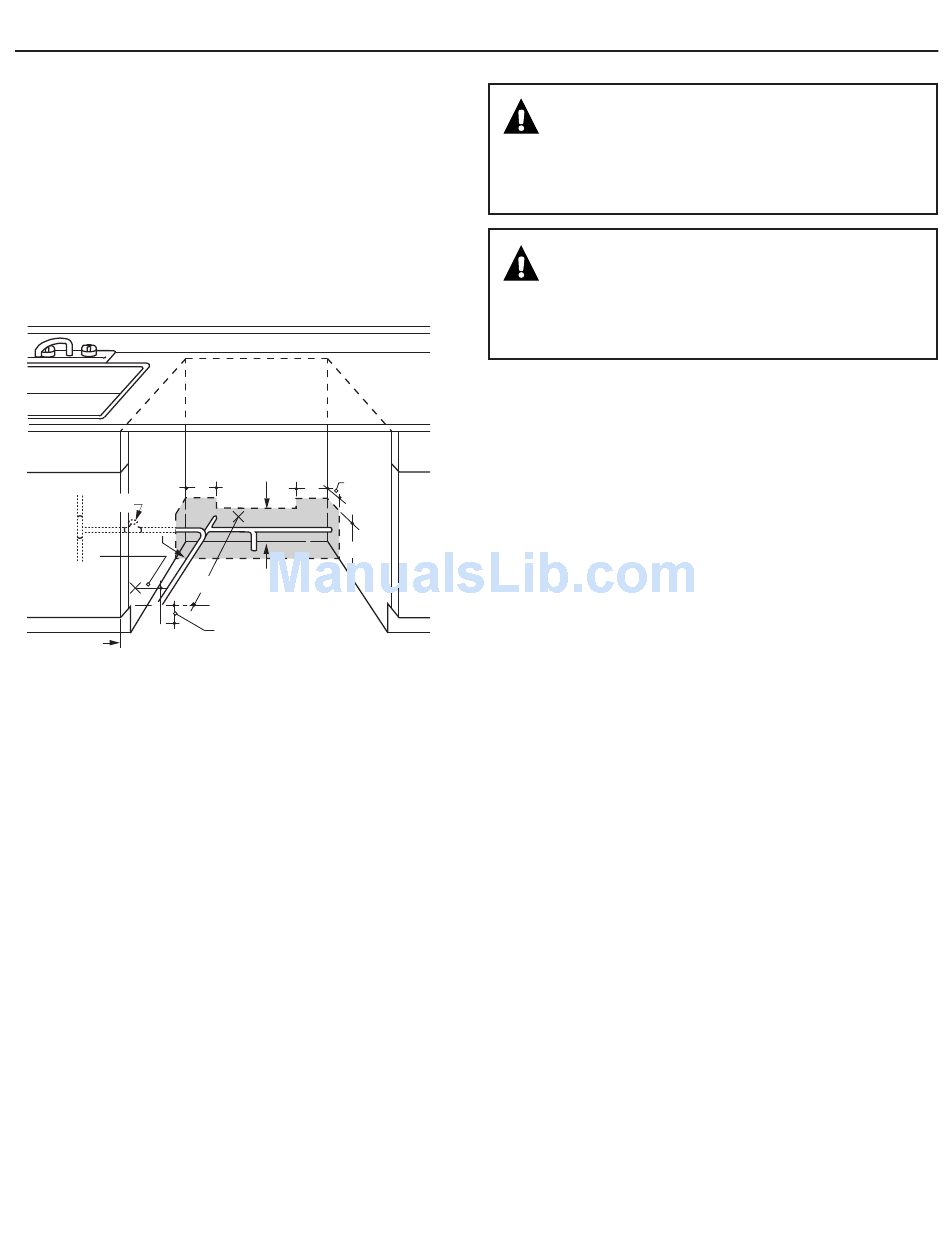

• The line may enter from either side, rear or floor within the
shaded area shown in Figure F.
• The line may pass through the same hole as the electrical
cable and drain hose, or an additional 1-1/2" diameter hole
may be cut to accommodate the water line. If a power cord
with plug is used, the water line must not pass through the
power cord hole.
1-1/2" Dia.
Hole
Shut-off
Valve
Hot
2"
From
19" From Wall
Cabinet
Cabinet Face
Figure F
Water Line Connection
• Turn off the water supply.
• Install a hand shut-off valve in an accessible location, such
as under the sink. (Optional, but strongly recommended
and may be required by local codes.)
• The water connection is on the bottom-left side of the
dishwasher. Install the hot water inlet line, using 3/8"
or larger copper tubing. Route the line as shown in Figure F
and extend forward at least 19" from rear wall.
• Adjust the water heater to deliver water between 120°F
and 150°F.
• Flush water line to clean out debris. Use a bucket to catch
water and debris.
• The hot water supply line pressure must be between 20
and 120 PSI.
6
4"
4"
5"
5"
6"
2" From Floor
CAUTION
The hot water supply line pressure must be at least 20 PSI.
Lower pressures could cause the water valve to leak and
cause water damage.
PRECAUCIÓN
La línea de presión del suministro de agua caliente debe
ser al menos 20 PSI. Presiones inferiores podrían causar
que la válvula del agua gotee y causar daños por agua.
