GE GLD6906 Dimensions And Installation Information

Tall tub built-in dishwasher
Hide thumbs

Advertisement

Quick Links

GLD6906/66R
GE
Tall Tub Built-In Dishwasher
®

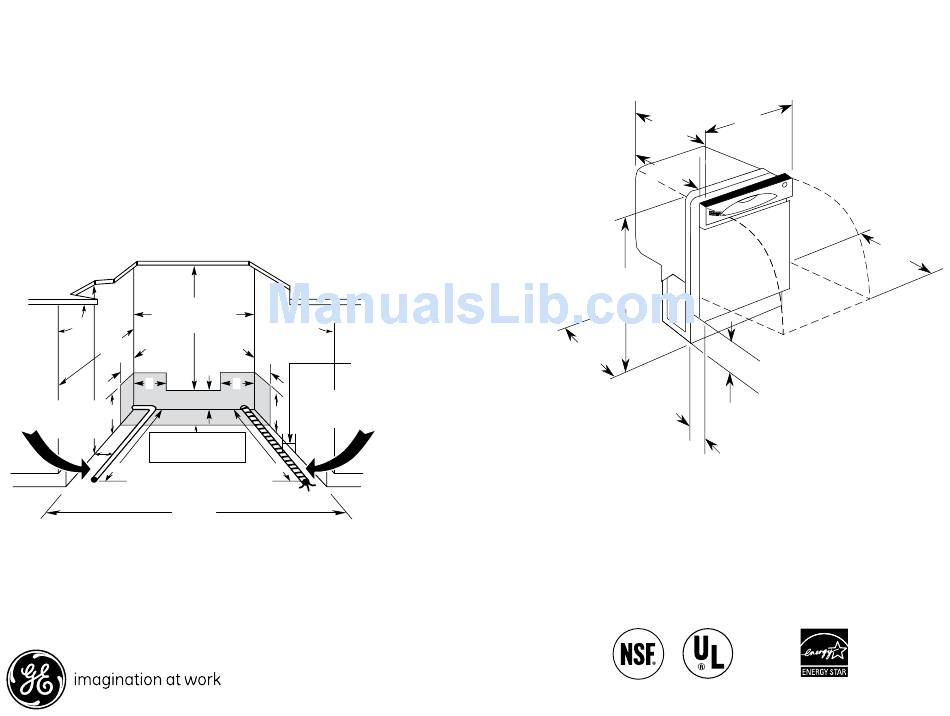

Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz....................................................................
Total connected load amperage............. 10
Calrod
heater watts max....................... 875
®
For use on adequately wired 120-volt, 15-amp circuit
having 2-wire service with a separate ground wire.
This appliance must be grounded for safe operation.
This wall area
must be free of
90°
pipes or wires
24"
4
MIN.
5
Hot
water
34" to 34-3/4"
line on
6
Underside
left
of countertop
to floor
Plumbing and electrical
2
service must enter
inside shaded area
19" MIN. from wall
24" MIN.
For answers to your Monogram,
GE Profile
®
GE
®
appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
60
Countertop
90°
Electrical
4
wiring is
4
3" from
cabinet
5
Electrical
wiring on
6
right
24" From wall
or
service,
25-1/4
MAX.
22-1/2
33-13/16" MIN.
adj. to 35"
21-1/4
4 (Adjustable)
4
Specification Created 6/09
24
27-1/2
As an EnErgy StAr
Listed by
partner, gE has determined
Underwriters
that this product meets the
Laboratories
EnErgy StAr guidelines
for energy efficiency.
350212
®
